Part Overview

The Switchcraft 882 is a 2.46mm ID mono phone plug connector featuring 2 conductors and solder eyelet termination. This connector is part of the MICRO-PLUG® series and is designed for applications requiring compact, free-hanging inline connections with unshielded signal transmission. The part is currently in stock with 969 units available as new original inventory.

Substitute parts are identified based on matching electrical specifications, mechanical dimensions, termination method, and connector series classification to ensure direct functional equivalence in applications where the primary part is unavailable or procurement constraints exist.

Substiute Parts

882

Switchcraft Inc.In Stock: 1008882 Datasheet

Current PartRFQ

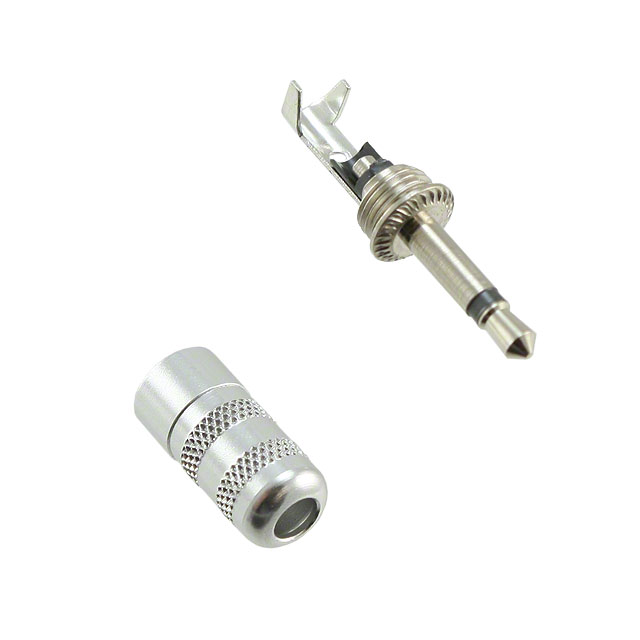

880X

Switchcraft Inc.In Stock: 1087880X Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Switchcraft 882 are identified through strict alignment of the following critical parameters:

• Connector Type & Series: Phone Plug, MICRO-PLUG® series
• Electrical Configuration: Mono signal, 2 conductors, 2 contacts
• Mechanical Dimensions: 2.46mm ID (0.097") mating diameter
• Termination Method: Solder Eyelet(s)
• Mounting Configuration: Free Hanging (In-Line)
• Electrical Ratings: 125VAC, 125 mA
• Environmental Compliance: ROHS3 Compliant

The Switchcraft 880X meets all substitution criteria and is classified as an equivalent part within the MICRO-PLUG® product family.

Parameter Comparison

Engineering Selection Recommendations

Both the Switchcraft 882 and 880X are active products with ROHS3 compliance and REACH unaffected status, meeting current regulatory requirements for electronic component procurement. Selection between these parts should be based on packaging availability and inventory status. The 882 is available in standard packaging with 969 units in stock, while the 880X is available in bulk packaging with 1031 units in stock. Both parts are functionally equivalent for applications requiring 2.46mm mono phone plug connectors with solder eyelet termination and 125VAC/125 mA electrical ratings.

Frequently Asked Questions (FAQ)

Q: Can the Switchcraft 880X be used as a direct replacement for the Switchcraft 882?

A: Yes. Both parts are identical in electrical specifications, mechanical dimensions, termination method, and connector series. They are functionally equivalent for all applications requiring 2.46mm ID mono phone plug connectors with 2 conductors and solder eyelet termination.

Q: What are the key parameters that determine substitution eligibility?

A: Substitution is determined by matching: connector type (Phone Plug), series (MICRO-PLUG®), mating diameter (2.46mm ID), signal configuration (Mono), conductor count (2), termination method (Solder Eyelet), mounting type (Free Hanging In-Line), electrical ratings (125VAC, 125 mA), and compliance status (ROHS3 Compliant).

Q: Are there packaging differences between the 882 and 880X?

A: The 882 is supplied in standard packaging, while the 880X is supplied in bulk packaging. Both contain the same connector specification and are suitable for equivalent applications.

Q: Do both parts meet current regulatory compliance requirements?

A: Yes. Both the 882 and 880X are ROHS3 compliant and REACH unaffected, meeting current environmental and regulatory standards for electronic component procurement.

Q: What is the operating temperature range for these connectors?

A: Both parts operate within the range of -20°C to 65°C, suitable for standard industrial and consumer applications within this thermal envelope.
