TE Connectivity AMP Connectors 88117-3 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 88117-3 is a contact crimp pin for flat flexible (FFC/FPC) connector applications. This component is classified as a gold-finished flat flex pin designed for crimping termination in FFC and FPC connector systems. The part is currently in active product status with 943 pieces available in new original inventory.

Substitute parts are identified to provide alternative sourcing options when the primary part number is unavailable or when packaging configurations differ to meet specific procurement requirements.

Substiute Parts

88117-3

TE Connectivity AMP ConnectorsIn Stock: 98488117-3 Datasheet

Current PartRFQ

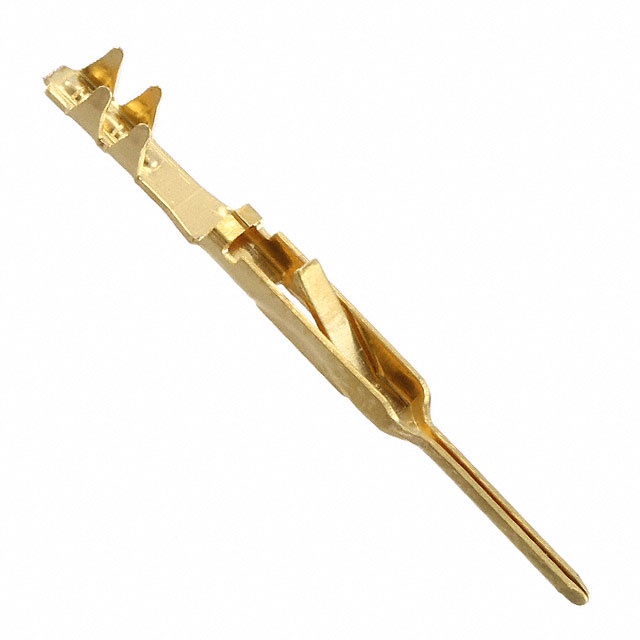

88117-9

TE Connectivity AMP ConnectorsIn Stock: 19296388117-9 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution between TE Connectivity AMP Connectors flat flex pin contacts is determined by equivalence in the following critical parameters:

• Base Product Number: Both parts share base product number 88117, indicating identical contact geometry and electrical characteristics
• Pin or Socket Configuration: Both are pin contacts
• Contact Termination Method: Both utilize crimp termination
• Contact Finish Material: Both feature gold plating
• Contact Finish Thickness: Both maintain 15.0µin (0.38µm) gold thickness specification
• Moisture Sensitivity Level: Both are classified as MSL 1 (Unlimited)
• Product Status: Both are active products

The primary difference between the main part and substitute is the packaging configuration: the 88117-3 is supplied in Tape & Reel (TR) format, while the 88117-9 is supplied in Cut Tape (CT) format. This distinction affects procurement and handling procedures but does not alter the functional or electrical properties of the contact itself.

Parameter Comparison

Engineering Selection Recommendations

Both the 88117-3 and 88117-9 are functionally equivalent FFC/FPC flat flex pin contacts from TE Connectivity AMP Connectors. Selection between these parts is determined by packaging requirements and compliance specifications rather than electrical or mechanical performance differences.

The 88117-9 substitute part offers RoHS Compliant certification, whereas the 88117-3 main part lists RoHS status as not applicable. For applications requiring RoHS compliance documentation, the 88117-9 is the appropriate selection.

Packaging format selection depends on assembly and procurement workflow:

• Tape & Reel (TR) format (88117-3): Suitable for automated pick-and-place assembly operations and high-volume production environments
• Cut Tape (CT) format (88117-9): Suitable for manual assembly, lower-volume applications, and situations where smaller quantity increments are required

Both parts maintain identical electrical characteristics, contact geometry, and environmental specifications. The substantially higher inventory availability of the 88117-9 (192,950 pieces versus 943 pieces) may influence procurement lead time and availability considerations.

Frequently Asked Questions (FAQ)

Q: Are the 88117-3 and 88117-9 electrically interchangeable?

A: Yes. Both parts are identical flat flex pin contacts with the same base product number (88117), gold contact finish at 15.0µin thickness, crimp termination, and MSL 1 rating. The electrical and mechanical performance is equivalent.

Q: What is the difference between Tape & Reel and Cut Tape packaging?

A: Tape & Reel (TR) packaging supplies components on a continuous reel suitable for automated assembly equipment. Cut Tape (CT) packaging supplies components on tape segments cut to specific lengths, typically used for manual assembly or lower-volume applications. The contact itself is identical in both formats.

Q: Does the RoHS compliance difference affect substitution?

A: The 88117-9 is certified RoHS Compliant, while the 88117-3 lists RoHS status as not applicable. For applications or regions requiring RoHS compliance documentation, the 88117-9 is the required selection. For applications without RoHS requirements, both parts are functionally equivalent.

Q: Can I use 88117-9 in place of 88117-3 in my assembly?

A: Yes, provided your assembly process can accommodate Cut Tape packaging instead of Tape & Reel format. The contact specifications, performance, and reliability are identical. Verify that your assembly equipment and procurement workflow support the CT packaging format.

Q: What is the Moisture Sensitivity Level (MSL) rating?

A: Both parts carry an MSL 1 rating, which indicates unlimited shelf life and no special moisture control requirements during storage or handling. These contacts do not require dry-pack storage or baking procedures prior to assembly.

Q: Are there any REACH or ECCN restrictions on these parts?

A: The REACH status for both parts is listed as Vendor Undefined. The 88117-9 carries an ECCN classification of EAR99. Consult with your supplier or compliance department regarding specific regulatory requirements for your application and destination.
