TE Connectivity 87589-6 Equivalent & Substitute Parts

Part Overview

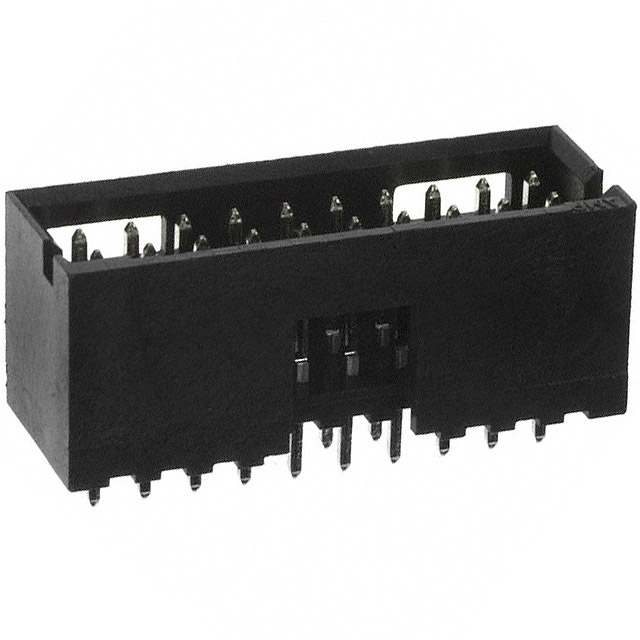

The TE Connectivity 87589-6 is a rectangular connector header designed for through-hole mounting applications. This connector features a vertical orientation with 20 positions arranged in 2 rows at 0.100" (2.54mm) pitch, utilizing shrouded 4-wall construction with solder termination and detent lock fastening. The part is classified as obsolete, necessitating identification of equivalent substitute components for ongoing design and procurement requirements. Active equivalent parts are available from TE Connectivity and alternative manufacturers to support continued system deployment and maintenance.

Substiute Parts

87589-6

TE Connectivity AMP ConnectorsIn Stock: 119687589-6 Datasheet

Current PartRFQ

5-87589-6

TE Connectivity AMP ConnectorsIn Stock: 7565-87589-6 Datasheet

DirectRFQ

0901301120

MolexIn Stock: 156460901301120 Datasheet

SimilarRFQ

0901301320

MolexIn Stock: 14300901301320 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 87589-6 is determined by strict alignment of the following critical parameters:

Primary Matching Criteria:

• Connector type (Header)
• Contact type (Male Pin)
• Number of positions (20)
• Number of rows (2)
• Pitch - mating (0.100" / 2.54mm)
• Row spacing - mating (0.100" / 2.54mm)
• Mounting type (Through Hole)
• Shrouding configuration (Shrouded - 4 Wall)
• Termination method (Solder)
• Style (Board to Board or Cable / Board to Cable or Wire)
• Material flammability rating (UL94 V-0)
• Moisture sensitivity level (1 - Unlimited)

Secondary Compatibility Factors:

• Contact finish composition (Tin, Tin-Lead, Gold)
• Contact material (Phosphor Bronze, Brass)
• Insulation material type (Polyamide/Nylon vs. Polyester, both glass-filled)
• Overall contact length and insulation height dimensions
• Fastening mechanism (Detent Lock vs. Latch Holder)

The substitute parts listed maintain functional equivalence through matching primary criteria while permitting variation in secondary factors that do not compromise electrical or mechanical performance in standard applications.

Parameter Comparison

Engineering Selection Recommendations

Primary Recommendation: TE Connectivity 5-87589-6

The TE Connectivity 5-87589-6 is the direct equivalent to the obsolete 87589-6 part number. This substitute maintains identical mechanical and electrical specifications within the AMPMODU Mod II series. The 5-87589-6 carries active product status and achieves ROHS3 compliance with REACH Unaffected designation, addressing regulatory requirements that the original part does not satisfy. The packaging format is tray-based, and current inventory availability is 704 units. This part is the preferred selection for direct replacement applications requiring minimal design modification.

Secondary Recommendation: Molex 0901301120 or 0901301320

The Molex C-Grid III 90130 series connectors (part numbers 0901301120 and 0901301320) provide functional equivalence through matching primary connector parameters: 20-position, 2-row header configuration with 0.100" (2.54mm) pitch, through-hole mounting, shrouded 4-wall construction, solder termination, and UL94 V-0 flammability rating. Both Molex alternatives maintain active product status and ROHS3 compliance with REACH Unaffected designation.

Differences between Molex options include contact finish composition: 0901301120 features tin mating contact finish, while 0901301320 provides gold mating contact finish. Both utilize latch holder fastening rather than detent lock, and both employ brass contact material with polyester glass-filled insulation instead of phosphor bronze with polyamide nylon. Contact length dimensions are reduced compared to the TE Connectivity parts (0.266" mating vs. 0.318", 0.114" post vs. 0.125"). Molex inventory availability is 15,543 units for 0901301120 and 1,364 units for 0901301320.

Selection between Molex alternatives depends on application requirements for contact finish properties. The 0901301120 with tin finish provides cost-effective equivalence for general-purpose applications. The 0901301320 with gold finish offers enhanced corrosion resistance for demanding environmental conditions.
