TE Connectivity AMP Connectors 87589-4 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 87589-4 is a rectangular connector header designed for through-hole mounting applications. This connector is a vertical 16-position header with 2.54mm (0.100") pitch spacing, configured in a 2-row layout with shrouded 4-wall design and detent lock fastening. The part operates within the AMPMODU Mod II series and is classified as obsolete, necessitating identification of active equivalent components for ongoing procurement and design continuity.

Substiute Parts

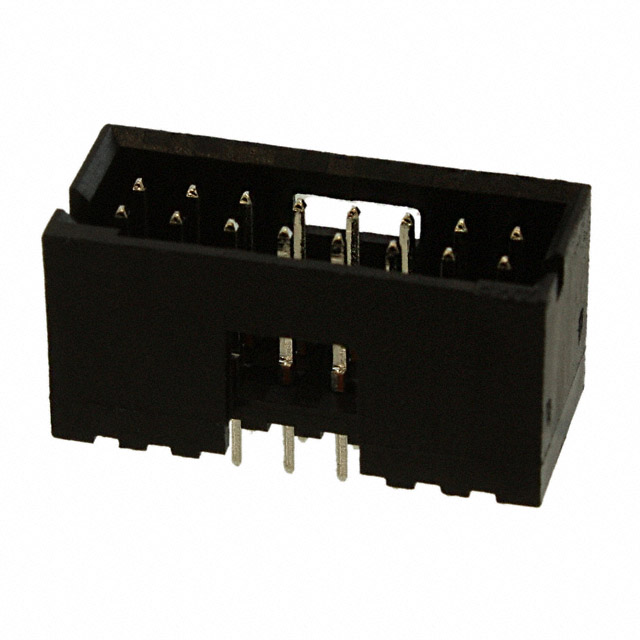

87589-4

TE Connectivity AMP ConnectorsIn Stock: 113587589-4 Datasheet

Current PartRFQ

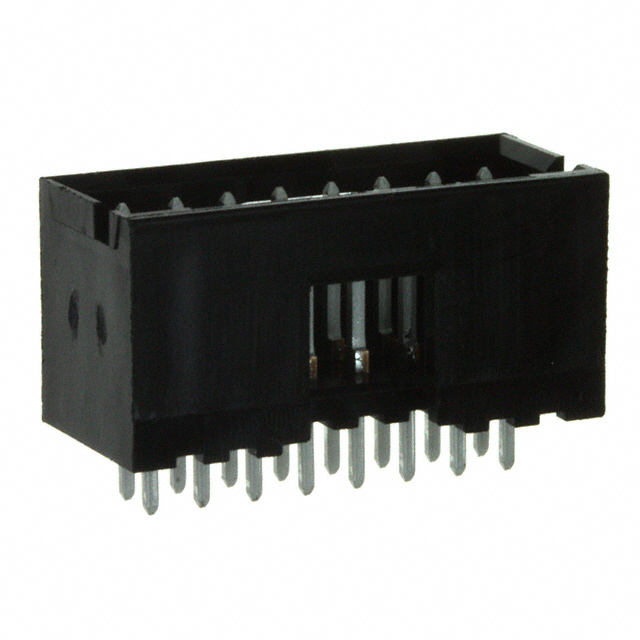

5-87589-4

TE Connectivity AMP ConnectorsIn Stock: 10095-87589-4 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete 87589-4 with the active equivalent 5-87589-4 is based on electrical and mechanical parameter equivalence within the AMPMODU Mod II series. Both components share identical specifications across all critical functional parameters: 16-position configuration, 2-row layout, 2.54mm pitch spacing, through-hole mounting, shrouded 4-wall design, detent lock fastening, 3A current rating, and -65°C to 105°C operating temperature range. Contact material, insulation material, and flammability rating remain unchanged.

The primary distinction between these parts is product status and compliance certification. The 87589-4 is classified as obsolete with RoHS non-compliant status, while 5-87589-4 is active with RoHS compliant certification and REACH unaffected status. Additionally, the contact finish on the mating surface differs: 87589-4 specifies Tin-Lead finish, whereas 5-87589-4 specifies Tin finish. Both maintain identical contact finish thickness of 100.0µin (2.54µm).

Substitution is valid when the following parameters are matched:

• Connector type, contact type, and position count
• Pitch and row spacing dimensions
• Mounting method and shrouding configuration
• Fastening mechanism
• Current and temperature ratings
• Contact material and insulation composition

Parameter Comparison

Engineering Selection Recommendations

The 5-87589-4 is the direct active equivalent for the obsolete 87589-4 within the AMPMODU Mod II series. Both components are functionally and mechanically interchangeable for board-to-board and cable connector applications requiring 16-position, 2-row headers with 2.54mm pitch spacing and through-hole mounting.

Selection of 5-87589-4 is supported by the following factors:

Product Status: The 5-87589-4 maintains active product status, ensuring ongoing availability and manufacturer support, whereas 87589-4 is obsolete.

Regulatory Compliance: The 5-87589-4 carries RoHS compliant certification and REACH unaffected status, meeting current environmental and regulatory requirements. The 87589-4 is RoHS non-compliant and has vendor-undefined REACH status.

Contact Finish: The 5-87589-4 specifies Tin finish on the mating surface, eliminating lead content present in the 87589-4 Tin-Lead finish. This aligns with RoHS compliance requirements and modern manufacturing standards while maintaining equivalent electrical and mechanical performance.

Electrical and Mechanical Equivalence: All functional parameters remain identical, including current rating, operating temperature range, contact material, insulation material, and flammability rating.

For applications currently utilizing 87589-4, direct substitution with 5-87589-4 is appropriate without design modification.

Frequently Asked Questions (FAQ)

Q: Are the 87589-4 and 5-87589-4 mechanically interchangeable?

A: Yes. Both components share identical mechanical specifications including connector type, position count, pitch spacing, row configuration, mounting method, shrouding design, and fastening mechanism. Physical dimensions and contact geometry are equivalent.

Q: What is the difference between the contact finishes on these parts?

A: The 87589-4 uses Tin-Lead finish on the mating surface, while 5-87589-4 uses Tin finish. Both maintain 100.0µin (2.54µm) finish thickness. The Tin finish on 5-87589-4 eliminates lead content and supports RoHS compliance.

Q: Can 5-87589-4 be used as a direct replacement for 87589-4 in existing designs?

A: Yes. The 5-87589-4 is the direct active equivalent. All electrical and mechanical parameters are identical, and the component is functionally compatible with applications designed for 87589-4.

Q: Why is 87589-4 classified as obsolete?

A: The 87589-4 is obsolete due to its RoHS non-compliant status and the availability of the RoHS-compliant 5-87589-4 equivalent. Manufacturers transition obsolete parts to active equivalents to meet regulatory requirements.

Q: What is the packaging difference between these parts?

A: The 87589-4 packaging specification is not provided in the available data. The 5-87589-4 is supplied in Tray packaging.

Q: Are the operating temperature ranges identical?

A: Yes. Both components operate across the identical temperature range of -65°C to 105°C.

Q: What is the current rating for these connectors?

A: Both the 87589-4 and 5-87589-4 are rated for 3A continuous current.

Q: Are these connectors suitable for board-to-board applications?

A: Yes. Both components are specified for board-to-board or cable connector applications with through-hole mounting and detent lock fastening.
