USB-A USB 2.0 Receptacle Connector 87520-1110BPLF Equivalent & Substitute Parts

Part Overview

The 87520-1110BPLF is a USB-A USB 2.0 receptacle connector manufactured by Amphenol ICC (FCI), designed for through-hole, right-angle mounting applications. This connector features a 4-position configuration with board lock functionality, rated for 3A current capacity and 1500 mating cycles. The part is currently active in production and RoHS compliant, making it suitable for modern electronic assemblies requiring standard USB 2.0 connectivity.

Substitute parts are identified when equivalent electrical and mechanical parameters align with the main part specifications, enabling direct replacement in circuit designs without functional compromise.

Substiute Parts

87520-1110BPLF

Amphenol ICC (FCI)In Stock: 104587520-1110BPLF Datasheet

Current PartRFQ

1-292303-4

TE Connectivity AMP ConnectorsIn Stock: 24501-292303-4 Datasheet

Parametric EquivalentRFQ

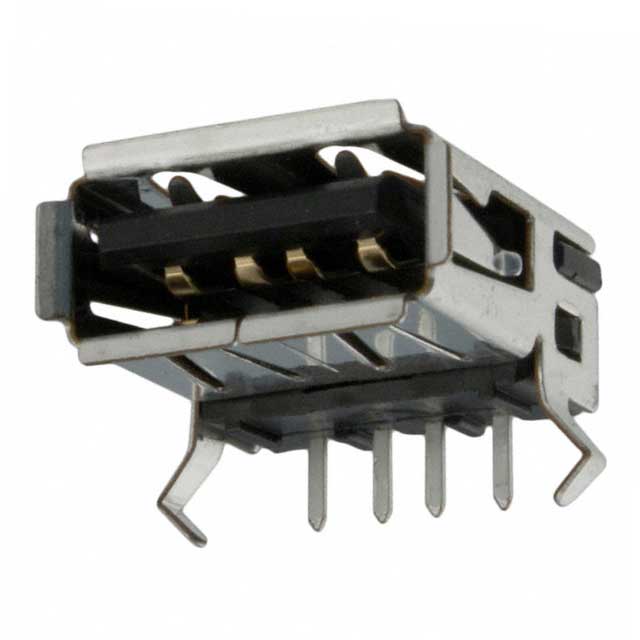

292303-1

TE Connectivity AMP ConnectorsIn Stock: 19511292303-1 Datasheet

Parametric EquivalentRFQ

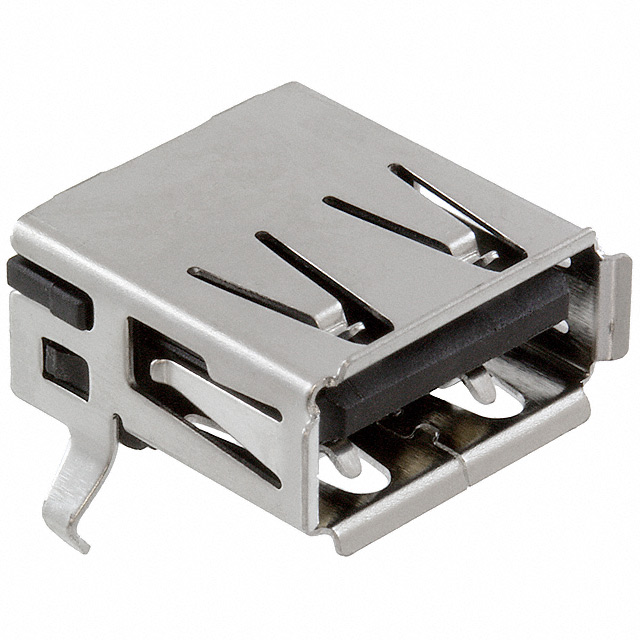

292303-2

TE Connectivity AMP ConnectorsIn Stock: 2872292303-2 Datasheet

Parametric EquivalentRFQ

292303-3

TE Connectivity AMP ConnectorsIn Stock: 1174292303-3 Datasheet

Parametric EquivalentRFQ

292303-6

TE Connectivity AMP ConnectorsIn Stock: 6662292303-6 Datasheet

Parametric EquivalentRFQ

87520-2112BLF

Amphenol ICC (FCI)In Stock: 107687520-2112BLF Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 87520-1110BPLF are identified based on strict parameter equivalence across the following critical categories:

Electrical Compatibility:

• USB 2.0 specification compliance
• 4-position contact configuration
• Receptacle gender
• Shielded design
• UL94 V-0 flammability rating
• 1500 mating cycle rating

Mechanical Compatibility:

• Through-hole mounting with right-angle orientation
• Horizontal mounting feature
• Solder termination
• Board lock functionality
• Operating temperature range of -55°C to 85°C

Regulatory Compliance:

• RoHS compliance status
• ECCN classification (EAR99)
• HTSUS code alignment (8536.69.4040)

The following part numbers meet these substitution criteria: 1-292303-4, 292303-1, 292303-2, 292303-3, 292303-6, and 87520-2112BLF.

Parameter Comparison

Engineering Selection Recommendations

All identified substitute parts maintain active product status and meet RoHS compliance requirements, ensuring regulatory alignment with modern manufacturing standards. The 87520-2112BLF, also from Amphenol ICC (FCI), provides direct manufacturer continuity while the TE Connectivity AMP Connectors series (292303 variants and 1-292303-4) offer cross-manufacturer alternatives with equivalent electrical and mechanical performance.

Selection between substitute options should consider packaging format availability: tube packaging (87520-1110BPLF, 292303-1, 292303-2, 292303-3, 87520-2112BLF), bulk packaging (292303-6), or bag packaging (1-292303-4). Current inventory levels vary across substitute options, with 292303-1 maintaining the highest stock position at 19,450 units.

Frequently Asked Questions (FAQ)

Q: Can 292303 series connectors directly replace the 87520-1110BPLF in existing designs?

A: Yes. The 292303-1, 292303-2, 292303-3, and 292303-6 variants meet all critical substitution parameters including USB 2.0 specification, 4-position receptacle configuration, through-hole right-angle mounting, board lock functionality, and operating temperature range. Electrical and mechanical compatibility is maintained across all identified parameters.

Q: What is the difference between 292303-1, 292303-2, and 292303-3?

A: These parts are electrically and mechanically identical. The primary difference is insulation color: 292303-1 and 292303-6 feature black insulation, while 292303-3 features natural insulation. All three maintain equivalent performance specifications and RoHS compliance.

Q: Does packaging format affect connector performance?

A: No. Tube, bulk, and bag packaging formats do not affect electrical or mechanical performance. Packaging selection is determined by assembly process requirements and inventory management practices. All formats contain identical connector specifications.

Q: Are TE Connectivity 292303 series connectors compatible with Amphenol ICC 87520 series applications?

A: Yes. Both manufacturer series meet identical USB 2.0 receptacle specifications, contact configuration, mounting requirements, and operating parameters. Cross-manufacturer substitution is supported by parameter equivalence.

Q: What current rating should be considered when selecting between substitute parts?

A: The 87520-1110BPLF is rated for 3A total current capacity. TE Connectivity 292303 series parts are rated at 1A per contact. For applications requiring the full 3A capacity, the 87520-2112BLF (also 3A rated) or the original 87520-1110BPLF should be specified. For applications operating within 1A per contact limits, all TE Connectivity variants are suitable.

Q: Are all substitute parts REACH compliant?

A: REACH status varies across substitute options. The 87520-1110BPLF and 292303-3 are REACH Unaffected. The 292303-1 and 292303-6 are REACH Unaffected. The 1-292303-4 status is REACH Unaffected. The 87520-2112BLF is REACH Affected. Verify REACH requirements for your specific application before final part selection.
