TE Connectivity AMP Connectors 87456-9 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 87456-9 is a 14-position rectangular connector housing designed for 0.100" (2.54mm) pitch applications. This receptacle connector features female socket contacts with crimp termination and is part of the AMPMODU Mod IV series. The part is currently discontinued at DiGi Electronics, necessitating identification of equivalent and substitute components that maintain electrical and mechanical compatibility for ongoing production and repair applications.

Key Parameters

Parameter	Specification
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	14
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Color	Black
RoHS Status	RoHS Compliant
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution of rectangular connector housings is determined by strict equivalence across electrical and mechanical parameters. The following criteria establish compatibility for the 87456-9:

Primary Substitution Criteria:

Connector type: Receptacle
Contact type: Female socket
Number of positions: 14
Pitch: 0.100" (2.54mm)
Number of rows: 2
Row spacing: 0.100" (2.54mm)
Mounting type: Free hanging (in-line)
Contact termination: Crimp
Color: Black
Moisture sensitivity level: 1 (Unlimited)

Substitute parts are classified into two categories:

Parametric Equivalents maintain all critical electrical and mechanical parameters. These parts are direct functional replacements with identical connector geometry, contact configuration, and termination method.

Similar Parts share the core connector specifications but may differ in insulation material composition or operating temperature range. These parts maintain mechanical and electrical compatibility while offering alternative material properties.

Parts with color variations (such as blue housings) are excluded from direct substitution due to color specification differences.

Parameter Comparison

Part Number	Manufacturer	Series	Product Status	Insulation Material	Operating Temperature	RoHS Status	Inventory (Pcs)
87456-9	TE Connectivity AMP Connectors	AMPMODU Mod IV	Discontinued	Not Specified	Not Specified	RoHS Compliant	1099
104482-6	TE Connectivity AMP Connectors	AMPMODU	Active	Thermoplastic	-65°C ~ 125°C	RoHS Compliant	1218
87977-5	TE Connectivity AMP Connectors	AMPMODU Mod IV	Active	Polyamide (PA), Nylon, Glass Filled	-65°C ~ 105°C	RoHS Compliant	2347
926476-7	TE Connectivity AMP Connectors	AMPMODU Mod IV	Active	Thermoplastic	-65°C ~ 105°C	ROHS3 Compliant	1576
0022552143	Molex	SL 70450	Active	Polyester, Glass Filled	-40°C ~ 105°C	ROHS3 Compliant	4979
65043-030LF	Amphenol ICC (FCI)	Mini-PV™, Basics+	Active	Polyphenylene, Modified	-40°C ~ 105°C	RoHS Compliant	1262

Engineering Selection Recommendations

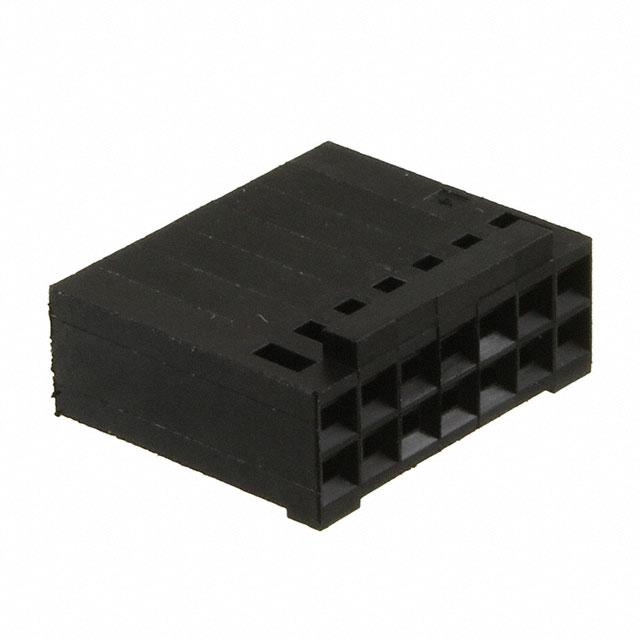

Primary Recommendation: TE Connectivity 87977-5

The 87977-5 is the preferred substitute for the discontinued 87456-9. Both parts share the AMPMODU Mod IV series designation, ensuring design continuity. The 87977-5 is currently active in production with substantial inventory availability (2347 units). It maintains RoHS compliance and identical mechanical specifications. The operating temperature range of -65°C to 105°C covers standard industrial applications.

Secondary Recommendation: TE Connectivity 104482-6

The 104482-6 provides an alternative from TE Connectivity's active AMPMODU series. This part offers an extended operating temperature range (-65°C to 125°C) and thermoplastic insulation material. It is suitable for applications requiring higher temperature performance. Inventory availability is adequate at 1218 units.

Alternative Recommendation: TE Connectivity 926476-7

The 926476-7 maintains AMPMODU Mod IV series compatibility with the original part. It features ROHS3 compliance and thermoplastic insulation. This option provides the highest inventory availability (2347 units) among TE Connectivity alternatives and is recommended for high-volume applications.

Cross-Manufacturer Option: Molex 0022552143

The Molex 0022552143 is a parametric equivalent from an alternative manufacturer. It provides the highest inventory availability (4979 units) and ROHS3 compliance. The operating temperature range (-40°C to 105°C) is suitable for standard commercial and industrial environments. This option is recommended when TE Connectivity alternatives are unavailable.

Cross-Manufacturer Option: Amphenol ICC (FCI) 65043-030LF

The 65043-030LF is a parametric equivalent from Amphenol ICC. It features modified polyphenylene insulation and operates across -40°C to 105°C. This part is REACH affected and provides compatibility for applications requiring alternative material specifications.

Frequently Asked Questions (FAQ)

Q: Can the 87977-5 be used as a direct replacement for the 87456-9?

A: Yes. The 87977-5 maintains all critical electrical and mechanical parameters: 14-position receptacle, female socket contacts, 0.100" pitch, 2-row configuration, crimp termination, and black color. Both parts are RoHS compliant with MSL 1 rating. The 87977-5 is the recommended substitute.

Q: What is the difference between the 87977-5 and 104482-6?

A: Both are TE Connectivity rectangular connectors with identical connector geometry and contact configuration. The primary differences are series designation (AMPMODU Mod IV versus AMPMODU) and operating temperature range (87977-5: -65°C to 105°C; 104482-6: -65°C to 125°C). The 104482-6 offers extended high-temperature capability.

Q: Are Molex and Amphenol ICC parts compatible with the original TE Connectivity design?

A: Yes. The Molex 0022552143 and Amphenol ICC 65043-030LF maintain all critical mechanical and electrical specifications required for compatibility. They feature identical connector type, contact configuration, pitch, row spacing, and termination method. These parts are suitable for applications where TE Connectivity alternatives are unavailable.

Q: Why is the 65239-007LF not listed as a substitute?

A: The 65239-007LF has a blue housing color, whereas the 87456-9 specifies black. Color is a defined parameter that determines mechanical fit and visual identification in connector assemblies. Parts with different colors are not direct substitutes.

Q: What does "Contacts Not Included" mean for these connector housings?

A: The connector housing is supplied without pre-installed contacts. Contacts must be obtained separately and crimped into the housing according to the connector series specifications. Ensure that selected contacts are compatible with the chosen housing part number.

Q: Are all substitute parts RoHS compliant?

A: All listed substitute parts are RoHS compliant or ROHS3 compliant. The original 87456-9 is RoHS compliant. Compliance status is maintained across all recommended substitutes, ensuring regulatory adherence for new designs and repairs.

Q: What is the significance of MSL 1 (Unlimited) rating?

A: MSL 1 indicates that the component has unlimited shelf life and requires no special moisture control during storage or handling. All listed parts share this rating, eliminating moisture sensitivity as a substitution constraint.

Q: Can I use the 104482-6 in applications requiring -65°C operation?

A: Yes. The 104482-6 operates across -65°C to 125°C, which encompasses the full range required for standard industrial applications. This part is suitable for low-temperature environments.
