Part Overview

The Amphenol ICC 87409-105 is a surface mount rectangular connector header from the Rib-Cage™ III series, designed for board-to-board applications with 10 positions arranged in 2 rows at 0.050" (1.27mm) pitch. This component features shrouded 4-wall construction with push-pull fastening and gold-plated mating contacts suitable for general purpose and military applications.

The 87409-105 carries an obsolete product status. Identifying equivalent substitute parts ensures design continuity and supply chain reliability for applications currently utilizing this connector.

Substiute Parts

87409-105

Amphenol ICC (FCI)In Stock: 94887409-105 Datasheet

Current PartRFQ

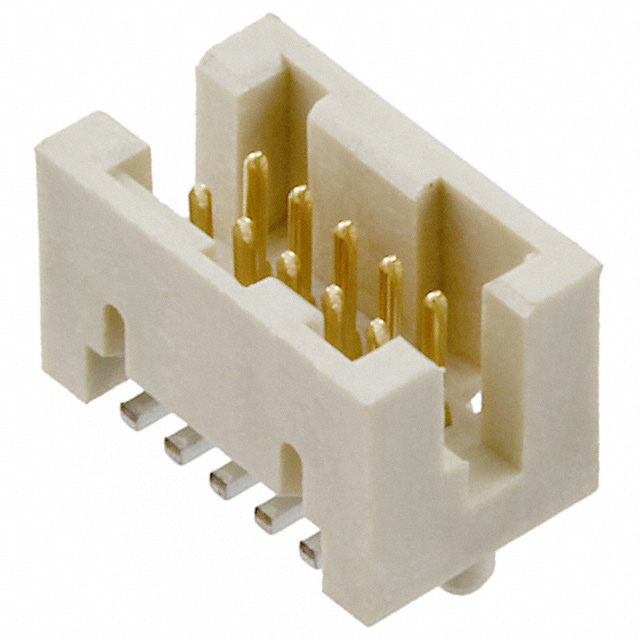

87409-105LF

Amphenol ICC (FCI)In Stock: 70587409-105LF Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 87409-105 is determined by strict equivalence across the following critical parameters:

• Connector type, contact type, and gender (Header, Male Pin)
• Position count and row configuration (10 positions, 2 rows)
• Mating pitch and row spacing (0.050" / 1.27mm)
• Mounting technology (Surface Mount)
• Board-to-board style with shrouded 4-wall construction
• Push-pull fastening mechanism
• Solder termination
• Operating temperature range (-55°C ~ 130°C)
• Flammability rating (UL94 V-0)
• Insulation material composition (Thermoplastic, Glass Filled)
• Contact finish specification (Gold or Gold, GXT™ for mating surface)
• Mated stacking height (6.42mm)

The 87409-105LF qualifies as a direct substitute based on full alignment with all critical parameters listed above.

Parameter Comparison

Engineering Selection Recommendations

The 87409-105LF is the direct equivalent substitute for the obsolete 87409-105. Both components share identical mechanical and electrical specifications across all critical parameters including connector geometry, pitch, mounting technology, and operating temperature range.

The primary distinction between these parts is product status and regulatory compliance. The 87409-105LF carries active product status with RoHS compliance and REACH applicability, whereas the 87409-105 is obsolete and RoHS non-compliant. The 87409-105LF also specifies a current rating of 1A (DC) and uses tin post finish instead of tin-lead, reflecting modern manufacturing standards.

For new designs or component replenishment, the 87409-105LF is the appropriate selection. The connector maintains full mechanical and electrical compatibility with existing board designs utilizing the 87409-105, with the added benefit of current product availability and regulatory compliance.
