TE Connectivity AMP Connectors 87232-2 Equivalent & Substitute Parts

Part Overview

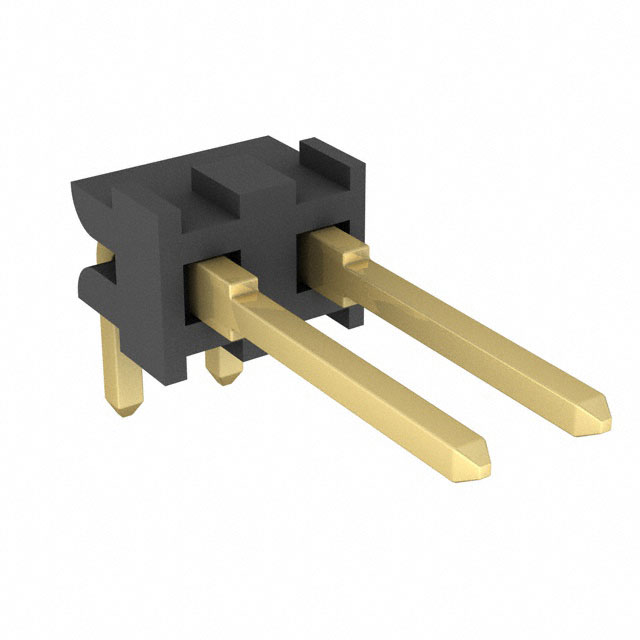

The TE Connectivity AMP Connectors 87232-2 is a rectangular connector header designed for through-hole, right-angle mounting applications. This connector features a 2-position configuration with 0.100" (2.54mm) pitch spacing, suitable for board-to-board or cable interconnections. The part is classified as obsolete, necessitating identification of active equivalent alternatives that maintain functional and electrical compatibility for ongoing production and repair applications.

Substiute Parts

87232-2

TE Connectivity AMP ConnectorsIn Stock: 759387232-2 Datasheet

Current PartRFQ

0901210122

MolexIn Stock: 174920901210122 Datasheet

SimilarRFQ

0901210762

MolexIn Stock: 38410901210762 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 87232-2 is determined by strict alignment of the following critical parameters:

Mandatory Matching Parameters:

• Pitch - Mating: 0.100" (2.54mm)
• Number of Positions: 2
• Number of Rows: 1
• Mounting Type: Through Hole, Right Angle
• Connector Type: Header
• Contact Type: Male Pin
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Shape: Square
• Material Flammability Rating: UL94 V-0
• Moisture Sensitivity Level: 1 (Unlimited)

The Molex C-Grid III 90121 series parts (0901210122 and 0901210762) satisfy all mandatory matching parameters. Both substitute parts maintain identical pitch spacing, position count, row configuration, mounting orientation, and termination method. Both are active products with current manufacturing status, providing long-term availability advantages over the obsolete TE Connectivity part.

Parameter Comparison

Engineering Selection Recommendations

Molex 0901210762 (Bulk Packaging)

The Molex 0901210762 is the primary substitute for the TE Connectivity 87232-2. Both parts share identical packaging format (bulk), which aligns with the original part's distribution method. The 0901210762 maintains active product status, ensuring continuous availability and manufacturing support. This part features gold mating contact finish matching the original specification, providing equivalent electrical performance characteristics. ROHS3 compliance exceeds the original RoHS requirement, and the part carries EAR99 classification identical to the original.

Molex 0901210122 (Tray Packaging)

The Molex 0901210122 serves as an alternative substitute when tray packaging is acceptable for the application. This part maintains all critical functional parameters and active product status. The primary distinction is packaging format (tray versus bulk) and mating contact finish (tin versus gold). ROHS3 compliance and EAR99 classification match the original part specifications.

Both Molex alternatives satisfy all mandatory substitution criteria and provide superior long-term availability compared to the obsolete TE Connectivity part. Selection between the two Molex options depends on packaging requirements and contact finish specifications for the specific application.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0901210122 and 0901210762 be used interchangeably with the TE Connectivity 87232-2?

A: Both Molex parts satisfy all mandatory matching parameters including pitch spacing, position count, mounting type, and termination method. The primary differences are packaging format and contact finish material. Molex 0901210762 (bulk, gold finish) provides the closest alignment to the original part specifications.

Q: What is the significance of the contact finish difference between the substitute parts?

A: The TE Connectivity 87232-2 and Molex 0901210762 both feature gold mating contact finish. The Molex 0901210122 uses tin finish. Contact finish affects electrical conductivity, corrosion resistance, and long-term reliability in specific environmental conditions. Selection should align with the original design specifications.

Q: Does the difference in contact length affect mechanical compatibility?

A: The TE Connectivity 87232-2 has a mating contact length of 0.318" (8.08mm), while both Molex substitutes have 0.266" (6.75mm). This difference may affect mating depth and engagement characteristics. Applications requiring specific contact engagement depths should evaluate this parameter against design requirements.

Q: Are the insulation material differences significant?

A: The TE Connectivity 87232-2 uses polyamide (PA) nylon glass-filled insulation, while the Molex substitutes use polyester glass-filled insulation. Both materials meet UL94 V-0 flammability requirements and maintain identical operating temperature ranges (-65°C to 105°C for the original part). Material selection depends on specific environmental and chemical exposure requirements.

Q: What is the advantage of selecting an active product over the obsolete TE Connectivity part?

A: Active products (Molex 0901210122 and 0901210762) provide continuous manufacturing support, documented long-term availability, and consistent quality control. Obsolete parts face supply discontinuation and potential quality degradation from remaining inventory.

Q: Does packaging format affect electrical performance?

A: Packaging format (bulk versus tray) does not affect electrical or mechanical performance. Selection depends on inventory management, handling procedures, and supply chain requirements specific to the application.

Q: Are both Molex substitutes RoHS compliant?

A: Yes. Both Molex parts carry ROHS3 compliance, which exceeds the original RoHS Compliant designation. ROHS3 compliance ensures compatibility with current regulatory requirements and supply chain standards.
