TE Connectivity AMP Connectors 87175-6 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 87175-6 is a 2-position rectangular connector receptacle housing with 0.100" (2.54mm) pitch, designed for free-hanging in-line mounting applications. This component belongs to the AMPMODU series and features crimp-type female socket contacts with polyester glass-filled insulation material. The part is active in production status and RoHS compliant.

Equivalent and substitute parts are identified when design requirements necessitate alternative connector housings due to inventory availability, series compatibility, insulation material specifications, or color requirements while maintaining electrical and mechanical interchangeability within the 2-position, 2.54mm pitch rectangular connector category.

Key Parameters

Parameter	Specification
Manufacturer Part Number	87175-6
Manufacturer	TE Connectivity AMP Connectors
Category	Rectangular Connectors
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	2
Pitch	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Color	Black
Operating Temperature Range	-65°C ~ 105°C
Moisture Sensitivity Level (MSL)	1 (Unlimited)
RoHS Status	RoHS Compliant
Product Status	Active

Substitute Part Grouping Explanation

Substitute parts for the 87175-6 are grouped based on strict electrical and mechanical parameter matching. The primary substitution criteria are:

Critical Parameters (Must Match):

Connector Type: Receptacle
Contact Type: Female Socket
Number of Positions: 2
Pitch: 0.100" (2.54mm)
Number of Rows: 1
Mounting Type: Free Hanging (In-Line)
Contact Termination: Crimp
Moisture Sensitivity Level: 1 (Unlimited)

Secondary Parameters (Allow Variation):

Insulation Material: Polyester Glass Filled, Thermoplastic, Polyamide (PA), Polyamide (PA66), Polybutylene Terephthalate (PBT), Polyphenylene Modified, or Thermoplastic Glass Filled
Color: Black, Green, Natural, or Blue
Operating Temperature Range: Minimum -65°C to -25°C; Maximum 85°C to 125°C
Manufacturer: TE Connectivity AMP Connectors, Molex, Amphenol ICC (FCI), or Harwin Inc.
Series: AMPMODU, AMPMODU MTE, AMPMODU Mod IV, SL 70066, Mini-PV™ Basics+, DUBOX™ MezzSelect™ Basics+, or M20
RoHS Status: RoHS Compliant or ROHS3 Compliant

Parameter Comparison

Manufacturer Part Number	Manufacturer	Series	Connector Type	Contact Type	Positions	Pitch	Mounting Type	Termination	Color	Insulation Material	Operating Temperature	RoHS Status	MSL
87175-6	TE Connectivity AMP Connectors	AMPMODU	Receptacle	Female Socket	2	0.100" (2.54mm)	Free Hanging (In-Line)	Crimp	Black	Polyester, Glass Filled	-65°C ~ 105°C	RoHS Compliant	1

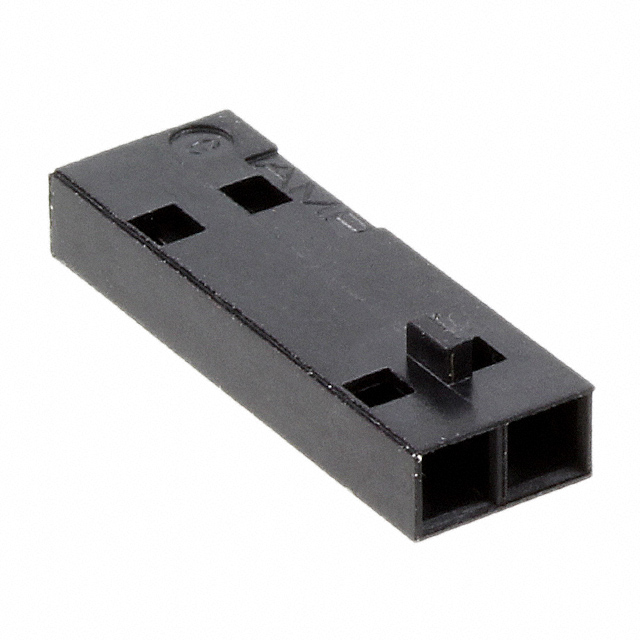

103648-1	TE Connectivity AMP Connectors	AMPMODU MTE	Receptacle	Female Socket	2	0.100" (2.54mm)	Free Hanging (In-Line)	Crimp	Black	Thermoplastic	-65°C ~ 105°C	RoHS Compliant	1
925366-2	TE Connectivity AMP Connectors	AMPMODU Mod IV	Receptacle	Female Socket	2	0.100" (2.54mm)	Free Hanging (In-Line)	Crimp	Green	Polyamide (PA), Nylon	-65°C ~ 105°C	RoHS Compliant	1

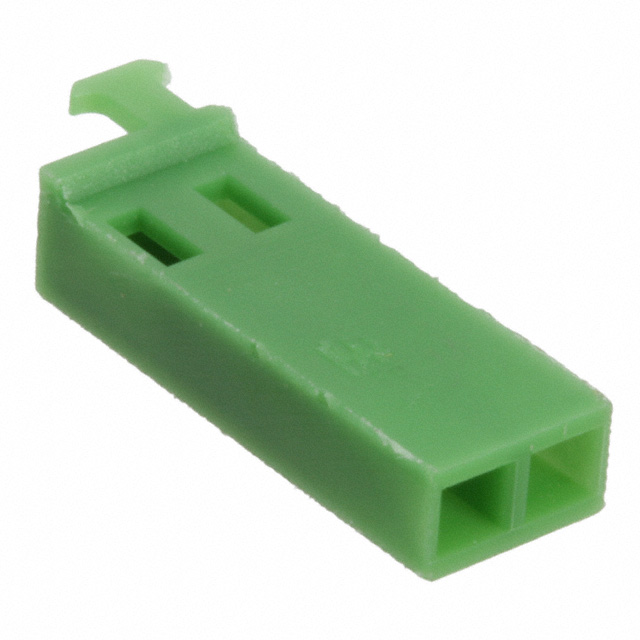

925369-2	TE Connectivity AMP Connectors	AMPMODU Mod IV	Receptacle	Female Socket	2	0.100" (2.54mm)	Free Hanging (In-Line)	Crimp	Green	Polyamide (PA66), Nylon 6/6	-65°C ~ 105°C	RoHS Compliant	1
926657-2	TE Connectivity AMP Connectors	AMPMODU	Receptacle	Female Socket	2	0.100" (2.54mm)	Free Hanging (In-Line)	Crimp	Black	Polybutylene Terephthalate (PBT)	-65°C ~ 105°C	ROHS3 Compliant	1

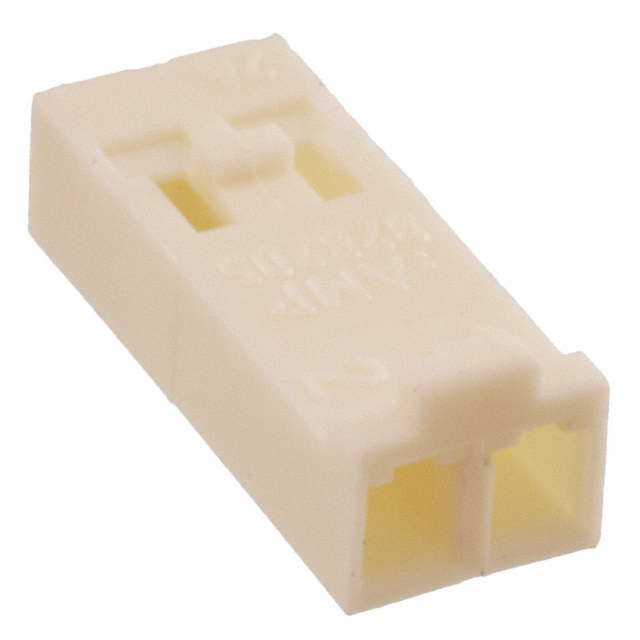

928205-2	TE Connectivity AMP Connectors	—	Receptacle	Female Socket	2	0.100" (2.54mm)	Free Hanging (In-Line)	Crimp	Natural	Polybutylene Terephthalate (PBTP)	—	RoHS Compliant	1
0050579302	Molex	SL 70066	Receptacle	Female Socket	2	0.100" (2.54mm)	Free Hanging (In-Line)	Crimp	Black	Polyester, Glass Filled	-40°C ~ 105°C	ROHS3 Compliant	1
65039-035LF	Amphenol ICC (FCI)	Mini-PV™, Basics+	Receptacle	Female Socket	2	0.100" (2.54mm)	Free Hanging (In-Line)	Crimp	Black	Polyphenylene, Modified	-40°C ~ 105°C	RoHS Compliant	1
65039-235LF	Amphenol ICC (FCI)	Mini-PV™, Basics+	Receptacle	Female Socket	2	0.100" (2.54mm)	Free Hanging (In-Line)	Crimp	Black	Polyphenylene, Modified	-40°C ~ 105°C	RoHS Compliant	1
65240-002LF	Amphenol ICC (FCI)	DUBOX™, MezzSelect™, Basics+	Receptacle	Female Socket	2	0.100" (2.54mm)	Free Hanging (In-Line)	Crimp	Blue	Thermoplastic, Glass Filled	-65°C ~ 125°C	RoHS Compliant	1
M20-1060200	Harwin Inc.	M20	Receptacle	Female Socket	2	0.100" (2.54mm)	Free Hanging (In-Line)	Crimp	Black	Thermoplastic	-25°C ~ 85°C	ROHS3 Compliant	1

Engineering Selection Recommendations

Direct Equivalents (Same Manufacturer, Same Series):

The TE Connectivity AMP Connectors 926657-2 is the closest equivalent to the 87175-6. Both are AMPMODU series black receptacles with identical electrical and mechanical specifications. The 926657-2 features polybutylene terephthalate (PBT) insulation instead of polyester glass-filled material and carries ROHS3 compliance, providing enhanced environmental protection standards.

TE Connectivity Alternatives (Same Manufacturer, Different Series):

The 103648-1 (AMPMODU MTE series) and 925366-2 or 925369-2 (AMPMODU Mod IV series) maintain full electrical and mechanical compatibility. The 103648-1 uses thermoplastic insulation. The 925366-2 and 925369-2 are available in green color with polyamide-based insulation materials. The 928205-2 is available in natural color with PBTP insulation but lacks specified operating temperature data.

Multi-Manufacturer Alternatives:

The Molex 0050579302 (SL 70066 series) provides equivalent functionality with polyester glass-filled insulation matching the original material specification. Operating temperature range is -40°C to 105°C, which covers the primary operating window of the 87175-6.

The Amphenol ICC (FCI) parts 65039-035LF and 65039-235LF (Mini-PV™ Basics+ series) offer equivalent performance with modified polyphenylene insulation and -40°C to 105°C operating range. The 65240-002LF (DUBOX™ MezzSelect™ Basics+ series) extends the upper operating temperature to 125°C with thermoplastic glass-filled insulation and is available in blue color.

The Harwin Inc. M20-1060200 provides equivalent connectivity with thermoplastic insulation but operates within a narrower temperature range of -25°C to 85°C and carries ROHS3 compliance.

Compliance Considerations:

All substitute parts maintain MSL 1 (Unlimited) moisture sensitivity rating. RoHS compliance is universal across all options. ROHS3 compliance is available in the 926657-2, 0050579302, and M20-1060200 variants for applications requiring enhanced regulatory adherence.

Frequently Asked Questions (FAQ)

Q: Can the 87175-6 be directly replaced with any of these substitute parts?

A: Yes. All listed substitute parts maintain identical electrical and mechanical specifications for the critical parameters: 2-position receptacle, female socket contacts, 0.100" (2.54mm) pitch, free-hanging in-line mounting, and crimp termination. Physical interchangeability is confirmed across all alternatives.

Q: What is the difference between the TE Connectivity options?

A: The primary differences are insulation material composition and series designation. The 926657-2 uses PBT insulation with ROHS3 compliance. The 103648-1 uses thermoplastic insulation in the MTE series. The 925366-2 and 925369-2 are Mod IV series with polyamide insulation available in green color. The 928205-2 is available in natural color. All maintain the same electrical performance and operating temperature range of -65°C to 105°C.

Q: Are there color options available?

A: Yes. The original 87175-6 is black. Equivalent black options include 926657-2, 0050579302, 65039-035LF, 65039-235LF, and M20-1060200. Green alternatives are 925366-2 and 925369-2. Natural color is available as 928205-2. Blue color is available as 65240-002LF.

Q: What is the operating temperature consideration when selecting a substitute?

A: The 87175-6 operates from -65°C to 105°C. Most substitutes maintain this range. The Molex 0050579302 and Amphenol ICC parts operate from -40°C to 105°C, which covers typical industrial applications. The Amphenol ICC 65240-002LF extends to 125°C maximum. The Harwin M20-1060200 operates from -25°C to 85°C, which is narrower and suitable for moderate temperature environments only.

Q: Which substitute offers the best compliance profile?

A: All parts are RoHS compliant. For ROHS3 compliance, select the 926657-2, 0050579302, or M20-1060200. The 926657-2 is recommended as it maintains TE Connectivity AMPMODU series compatibility with ROHS3 certification.

Q: Can I mix different substitute parts in the same assembly?

A: Yes. All substitute parts are electrically and mechanically interchangeable with the 87175-6 and with each other, provided the application does not have specific color or temperature range requirements that would restrict selection.

Q: What is the inventory availability for these substitutes?

A: Inventory levels vary significantly. The 928205-2 has the highest availability at 220,761 pieces. The 65039-035LF has 73,300 pieces. The 926657-2 has 3,105 pieces. The M20-1060200 has 15,366 pieces. Availability should be confirmed at time of procurement.

Q: Are contacts included with these connector housings?

A: No. All listed parts are connector housings only. Contacts are not included and must be procured separately as compatible crimp-type female socket contacts for 0.100" (2.54mm) pitch applications.

Q: What is the significance of MSL 1 (Unlimited) rating?

A: MSL 1 indicates unlimited shelf life without moisture bake-out requirements. All substitute parts carry this rating, meaning they can be stored indefinitely without special moisture control measures prior to assembly.
