Amphenol ICC 86730-002LF Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 86730-002LF is a 2-position Minitek® 2.00mm shunt connector with open top design, female sockets, and gold-plated contacts. This component is classified as obsolete, making identification of suitable substitutes essential for ongoing system support and component procurement. The part operates at 1A current rating with UL94 V-0 flammability compliance and unlimited moisture sensitivity level (MSL 1).

Substiute Parts

86730-002LF

Amphenol ICC (FCI)In Stock: 85286730-002LF Datasheet

Current PartRFQ

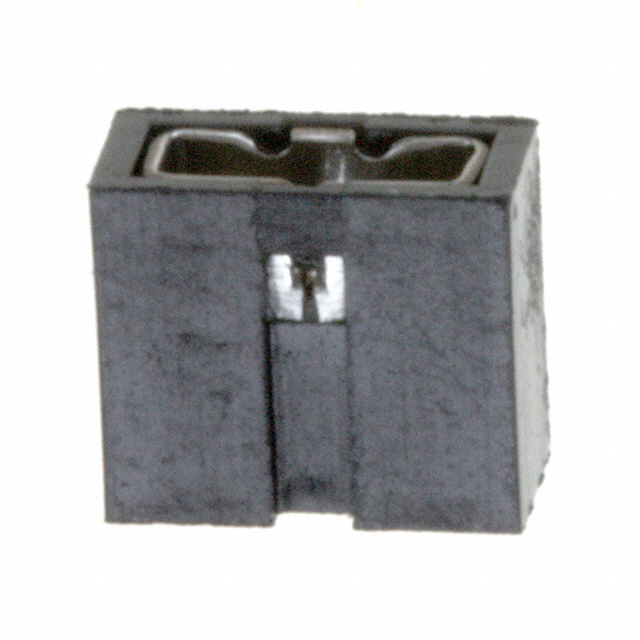

86730-001LF

Amphenol ICC (FCI)In Stock: 926886730-001LF Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 86730-002LF is determined by strict equivalence across the following critical parameters:

• Series: Minitek® 2.00mm connector family
• Position count and grid configuration: 2 (1 x 2)
• Pitch: 0.079" (2.00mm)
• Connector type: Open Top
• Gender: Female Sockets
• Height: 0.138" (4.60mm)
• Contact finish: Gold plating
• Current rating: 1A
• Housing material: PBT, Glass Filled
• Flammability compliance: UL94 V-0
• Moisture sensitivity: MSL 1

The substitute part 86730-001LF meets all electrical and mechanical parameters required for direct substitution. The only variation is housing color (black versus blue), which does not affect electrical performance or mechanical compatibility.

Parameter Comparison

Engineering Selection Recommendations

The 86730-001LF is a direct functional equivalent to the 86730-002LF. Both parts share identical electrical specifications, mechanical dimensions, and material properties. The substitute part offers the advantage of active product status, ensuring continued availability and supply chain stability. The 86730-001LF carries RoHS compliance certification, providing additional regulatory alignment for new designs and procurement cycles. Housing color differentiation (black versus blue) is a cosmetic variation with no impact on electrical performance or mechanical interchangeability.

Frequently Asked Questions (FAQ)

Q: Can the 86730-001LF directly replace the 86730-002LF in existing assemblies?

A: Yes. Both parts are mechanically and electrically identical. They share the same pitch (0.079"), position count (2), height (0.138"), contact finish (gold), current rating (1A), and housing material (PBT, Glass Filled). The only difference is housing color.

Q: Does the color difference between blue (86730-002LF) and black (86730-001LF) affect performance?

A: No. Housing color is a cosmetic attribute and does not affect electrical performance, mechanical fit, or signal integrity.

Q: Why is the 86730-002LF listed as obsolete?

A: Product obsolescence is determined by manufacturer lifecycle decisions. The 86730-001LF remains in active production and serves the same functional requirements.

Q: Are there compliance differences between the two parts?

A: The 86730-001LF carries RoHS compliance certification, while the 86730-002LF status is not specified. Both parts meet UL94 V-0 flammability requirements and MSL 1 moisture sensitivity standards.

Q: What is the packaging difference?

A: The 86730-002LF is supplied in standard packaging, while the 86730-001LF is supplied in bag packaging. This does not affect component functionality or performance.

Q: Are both parts suitable for new designs?

A: The 86730-001LF is recommended for new designs due to its active product status and RoHS compliance. The 86730-002LF, being obsolete, should be reserved for legacy system support only.
