Equivalent & Substitute Parts for Amphenol ICC 865615SLT D-Sub Connector

Part Overview

The Amphenol ICC 865615SLT is a D-Sub receptacle housing designed for female contacts in 15-position, 2-row configurations. This connector operates across the industrial temperature range of -55°C to 125°C with a rated 200 mating cycles. The part is currently active in production and available in bulk packaging. Equivalent and substitute parts are identified to support procurement flexibility, inventory management, and supply chain continuity for applications requiring D-Sub receptacle housings with matching electrical and mechanical specifications.

Substiute Parts

865615SLT

Amphenol ICC (FCI)In Stock: 973865615SLT Datasheet

Current PartRFQ

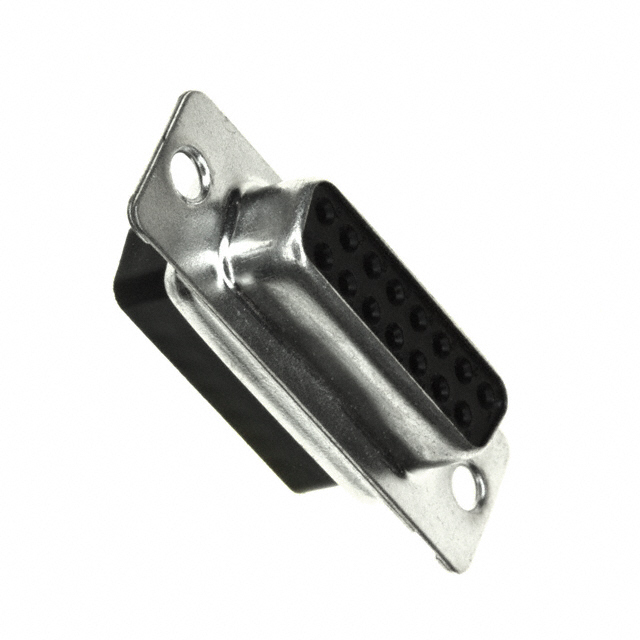

865615SLTLF

Amphenol ICC (FCI)In Stock: 1335865615SLTLF Datasheet

DirectRFQ

164532-4

TE Connectivity AMP ConnectorsIn Stock: 1156164532-4 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 865615SLT are identified based on strict equivalence across the following critical parameters:

• Connector Style: D-Sub
• Connector Type: Receptacle for Female Contacts
• Number of Positions: 15
• Number of Rows: 2
• Shell Size, Connector Layout: 2 (DA, A)
• Contact Type: Signal
• Flange Feature: Housing/Shell (Unthreaded)
• Dielectric Material: Thermoplastic or equivalent
• Moisture Sensitivity Level: 1 (Unlimited)

The 865615SLTLF is a direct manufacturer equivalent from Amphenol ICC, differing only in RoHS compliance status and color specification. The 164532-4 from TE Connectivity AMP Connectors is a manufacturer-recommended substitute that maintains all critical electrical and mechanical parameters while offering alternative sourcing from a different manufacturer within the same connector category.

Parameter Comparison

Engineering Selection Recommendations

The 865615SLTLF serves as the primary direct equivalent, maintaining identical electrical and mechanical specifications while offering improved RoHS compliance status. This part is suitable for applications where regulatory compliance with RoHS standards is required.

The 164532-4 from TE Connectivity AMP Connectors is a cross-manufacturer substitute that maintains all critical connector parameters. This part features a glass-filled PBT dielectric material in place of standard thermoplastic, providing enhanced mechanical and thermal properties. The 164532-4 is ROHS3 compliant and suitable for applications requiring alternative sourcing or enhanced material performance within the same connector footprint and electrical rating.

Selection between these parts should be based on procurement availability, regulatory requirements, and material performance needs specific to the application.

Frequently Asked Questions (FAQ)

Q: Can the 865615SLTLF be used as a direct replacement for the 865615SLT?

A: Yes. Both parts maintain identical connector style, position count, row configuration, shell size, contact type, and flange specifications. The primary differences are RoHS compliance status and color designation. Electrical and mechanical compatibility is maintained.

Q: What is the key difference between the 865615SLTLF and the 164532-4?

A: Both parts are mechanically and electrically compatible as D-Sub 15-position receptacles. The 164532-4 uses a glass-filled PBT dielectric material compared to standard thermoplastic in the 865615SLTLF, and is sourced from TE Connectivity rather than Amphenol ICC. The 164532-4 mounting type is specified as free hanging (in-line) versus panel mount for the Amphenol parts.

Q: Are operating temperature and mating cycle specifications identical across all three parts?

A: The 865615SLT and 865615SLTLF both specify -55°C to 125°C operating temperature and 200 mating cycles. The 164532-4 does not provide these specifications in the available data.

Q: Do all parts require separate contact procurement?

A: Yes. All three parts are specified as housings with contacts not included. Contacts must be sourced separately and are compatible with the respective connector series.

Q: What is the significance of the MSL rating for these parts?

A: All three parts carry MSL 1 (Unlimited) rating, indicating no moisture sensitivity limitations during storage or handling. Standard storage conditions apply without special desiccant or humidity control requirements.
