Würth Elektronik 865080157015 Equivalent & Substitute Parts

Part Overview

The Würth Elektronik 865080157015 is a 1200 µF, 6.3 V aluminum electrolytic capacitor in SMD radial can package, rated for 2000 hours at 105°C. This component is designed for general-purpose applications requiring compact surface-mount construction with standard moisture sensitivity classification. The part is currently active in production and ROHS3 compliant.

Substitute parts become necessary when addressing specific application requirements such as higher voltage ratings, improved ESR characteristics, automotive qualification, or enhanced thermal performance that exceed the baseline specifications of the original component.

Substiute Parts

865080157015

Würth ElektronikIn Stock: 1299865080157015 Datasheet

Current PartRFQ

EEE-FPA122UAP

Panasonic Electronic ComponentsIn Stock: 1059EEE-FPA122UAP Datasheet

UpgradeRFQ

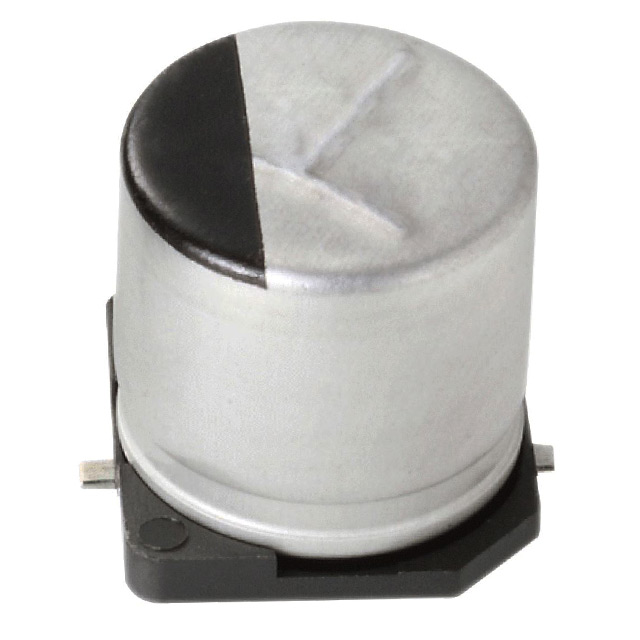

EEE-FT1C122UP

Panasonic Electronic ComponentsIn Stock: 803EEE-FT1C122UP Datasheet

UpgradeRFQ

UCL1A122MNL1GS

NichiconIn Stock: 2064UCL1A122MNL1GS Datasheet

UpgradeRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 865080157015 is determined by the following critical parameters:

Fixed Parameters (Must Match):

• Capacitance: 1200 µF
• Tolerance: ±20%
• Package Type: Radial, Can - SMD
• Case Diameter: 0.394" (10.00mm)
• Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
• Mounting Type: Surface Mount
• Operating Temperature Range: -55°C ~ 105°C
• Polarization: Polar
• Lifetime: 2000 Hrs @ 105°C
• RoHS Status: ROHS3 Compliant
• MSL Rating: 1 (Unlimited)

Variable Parameters (Allowed to Differ):

• Voltage Rating: May be equal or higher than 6.3 V
• Height: May vary within mechanical compatibility limits
• ESR: Lower values are acceptable
• Ripple Current: Higher values are acceptable
• Manufacturer and Series designation
• Application classification (General Purpose, Automotive, High Temperature Reflow)
• Certifications (AEC-Q200)

All substitute parts listed maintain identical capacitance, tolerance, footprint, and thermal specifications while offering enhanced electrical performance or expanded application scope.

Parameter Comparison

Engineering Selection Recommendations

EEE-FPA122UAP (Panasonic FP Series)

This substitute provides a 10 V rated alternative with 80 mOhm ESR at 100 kHz, representing a 50% reduction in equivalent series resistance compared to the original part. The component carries AEC-Q200 automotive qualification and maintains identical footprint compatibility. Height is 0.402" (10.20mm), which is 0.011" lower than the original, ensuring mechanical clearance in standard PCB layouts. Selection is appropriate for applications requiring improved thermal performance and automotive-grade reliability.

EEE-FT1C122UP (Panasonic FT Series)

This substitute offers the highest voltage rating at 16 V with the lowest ESR specification of 60 mOhm at 100 kHz. The component is qualified for both automotive applications and high-temperature reflow processes, carrying AEC-Q200 certification. Height matches the original at 0.413" (10.50mm). Ripple current handling is substantially increased to 1.19 A at 100 kHz. Selection is appropriate for designs requiring maximum voltage margin, lowest impedance, or enhanced thermal cycling capability.

UCL1A122MNL1GS (Nichicon UCL Series)

This substitute provides a 10 V rated option with 80 mOhm impedance and the most compact height at 0.394" (10.00mm). The component is rated for general-purpose applications without automotive certification. Ripple current specifications are 425 mA at 120 Hz and 850 mA at 100 kHz. Selection is appropriate for space-constrained applications where voltage margin of 10 V is acceptable and general-purpose reliability is sufficient.

All substitute parts maintain ROHS3 compliance and MSL 1 rating, ensuring compatibility with standard manufacturing processes and storage requirements.

Frequently Asked Questions (FAQ)

Q: Can the EEE-FPA122UAP be used as a direct replacement for the 865080157015?

A: Yes. Both components share identical capacitance (1200 µF), tolerance (±20%), case diameter (10.00mm), land size (10.30mm x 10.30mm), operating temperature range (-55°C to 105°C), and lifetime rating (2000 Hrs @ 105°C). The EEE-FPA122UAP provides higher voltage rating (10 V vs. 6.3 V) and lower ESR (80 mOhm vs. 160 mOhm), making it functionally compatible for any circuit designed for the original part.

Q: What is the primary advantage of the EEE-FT1C122UP over the original part?

A: The EEE-FT1C122UP offers three key advantages: highest voltage rating (16 V), lowest ESR (60 mOhm at 100 kHz), and highest ripple current capacity (1.19 A at 100 kHz). These characteristics reduce heat generation and extend component life in high-ripple-current applications. AEC-Q200 certification provides automotive-grade reliability.

Q: Are there height differences that affect PCB layout?

A: Yes. The EEE-FPA122UAP has a height of 0.402" (10.20mm), which is 0.011" shorter than the original 0.413" (10.50mm). The UCL1A122MNL1GS is the most compact at 0.394" (10.00mm). The EEE-FT1C122UP matches the original height at 0.413" (10.50mm). All heights remain within standard SMD clearance specifications for typical PCB designs.

Q: Which substitute is best for automotive applications?

A: Both the EEE-FPA122UAP and EEE-FT1C122UP carry AEC-Q200 certification, qualifying them for automotive use. The EEE-FT1C122UP provides additional qualification for high-temperature reflow processes. The UCL1A122MNL1GS is rated for general-purpose applications only and does not carry automotive certification.

Q: How do ESR values affect component selection?

A: Lower ESR reduces heat dissipation and improves high-frequency performance. The original part has 160 mOhm ESR. The EEE-FPA122UAP and UCL1A122MNL1GS both provide 80 mOhm ESR (50% reduction). The EEE-FT1C122UP provides the lowest ESR at 60 mOhm (62.5% reduction). Selection depends on thermal budget and ripple current requirements of the specific application.

Q: Are all substitute parts available in the same packaging format?

A: Yes. All substitute parts are supplied in Tape & Reel (TR) packaging with identical surface-mount land size (0.406" L x 0.406" W / 10.30mm x 10.30mm), ensuring compatibility with standard pick-and-place assembly equipment and reflow processes.

Q: What is the significance of AEC-Q200 certification?
