TE Connectivity AMP Connectors 86177-7 Equivalent & Substitute Parts

Part Overview

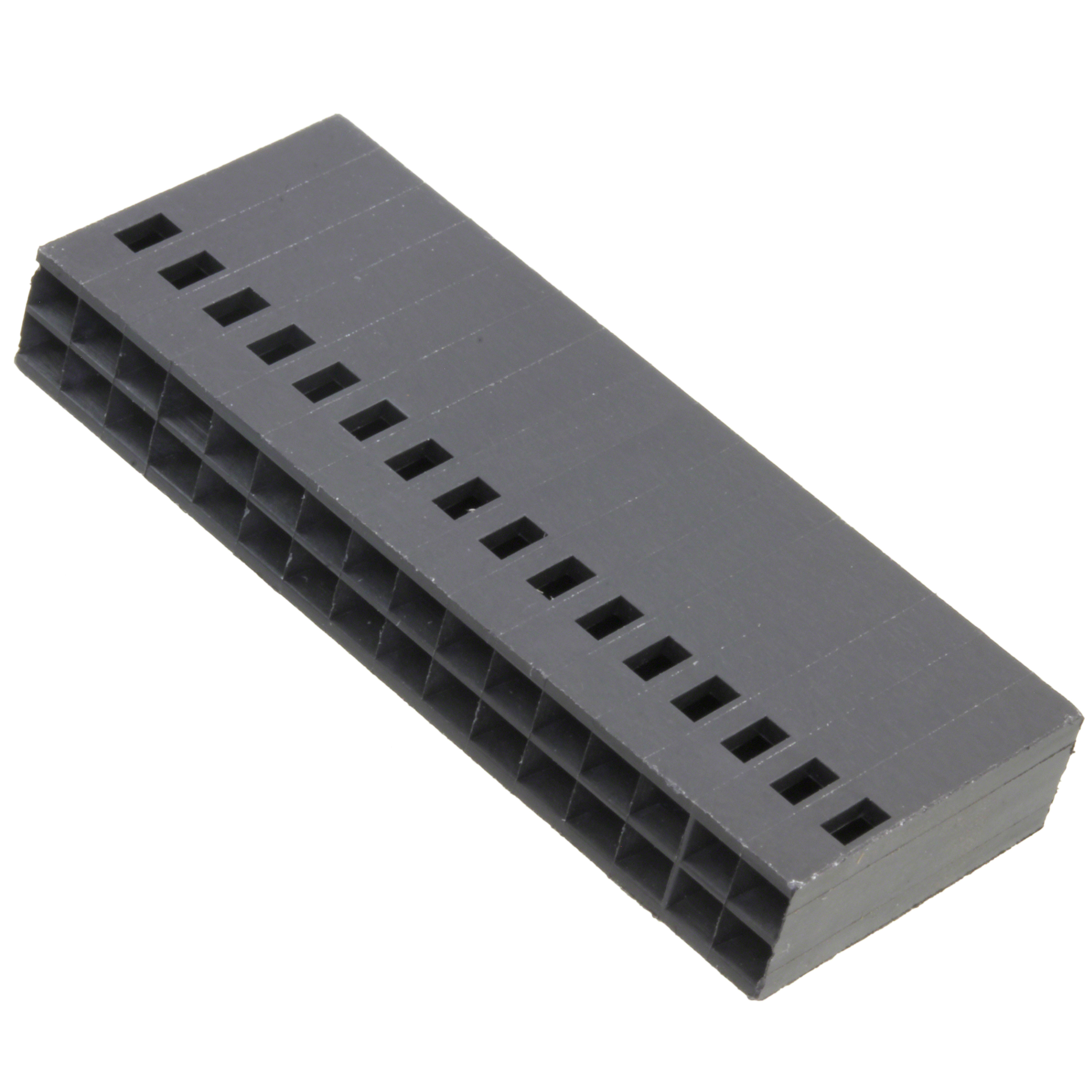

The TE Connectivity AMP Connectors 86177-7 is a 32-position rectangular connector housing designed for receptacle applications with 0.100" (2.54mm) pitch spacing. This component is classified as an active product and serves as a critical interface component in electronic assemblies requiring standardized rectangular connector housings. The need to identify equivalent and substitute parts arises from inventory availability, manufacturing continuity, design flexibility, and supply chain optimization requirements.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	32
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Insulation Material	Thermoplastic
Operating Temperature Range	-65°C ~ 105°C
Moisture Sensitivity Level (MSL)	1 (Unlimited)
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the 86177-7 is determined by strict parametric equivalence across the following critical dimensions:

Primary Substitution Criteria:

Connector Type: Receptacle
Contact Type: Female Socket
Number of Positions: 32
Pitch: 0.100" (2.54mm)
Number of Rows: 2
Row Spacing: 0.100" (2.54mm)
Mounting Type: Free Hanging (In-Line)
Contact Termination: Crimp
Moisture Sensitivity Level: 1 (Unlimited)

All substitute parts listed meet these core parametric requirements. Secondary variations in insulation material, color, operating temperature range, and series designation do not preclude substitution when primary parameters align. Parts are grouped based on manufacturer and series lineage while maintaining full parametric compatibility at the connector interface level.

Parameter Comparison

Parameter	86177-7 (Main)	1-104482-4	1420000-1	65043-021LF	65239-016LF
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	Amphenol ICC (FCI)	Amphenol ICC (FCI)
Connector Type	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle
Contact Type	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket
Number of Positions	32	32	32	32	32
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	2	2	2	2	2
Row Spacing	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp	Crimp	Crimp
Color	Black	Black	Natural	Black	Blue
Insulation Material	Thermoplastic	Thermoplastic	Polybutylene Terephthalate (PBT), Glass Filled	Polyphenylene, Modified	Thermoplastic, Glass Filled
Operating Temperature Range	-65°C ~ 105°C	-65°C ~ 125°C	-40°C ~ 80°C	-40°C ~ 105°C	-65°C ~ 125°C
MSL	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
RoHS Status	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant	RoHS Compliant
Series	AMPMODU Mod IV	AMPMODU	Micro Quadlok	Mini-PV™, Basics+	DUBOX™, MezzSelect™, Basics+

Engineering Selection Recommendations

TE Connectivity 1-104482-4 (AMPMODU Series)

This substitute maintains full parametric equivalence with the 86177-7 while offering an extended operating temperature range of -65°C to 125°C. Both parts are TE Connectivity AMP Connectors products within the AMPMODU family. The 1-104482-4 carries ROHS3 compliance and demonstrates higher inventory availability (1356 units). Selection of this part is appropriate for applications requiring extended thermal performance within the TE Connectivity product ecosystem.

TE Connectivity 1420000-1 (Micro Quadlok Series)

This substitute provides parametric equivalence with material composition in polybutylene terephthalate (PBT) glass-filled thermoplastic. The operating temperature range is -40°C to 80°C, which is narrower than the main part. The 1420000-1 carries ROHS3 compliance and REACH Unaffected status. This part is suitable for applications operating within the specified thermal envelope and offers the highest inventory availability (10452 units).

Amphenol ICC 65043-021LF (Mini-PV™, Basics+ Series)

This substitute is manufactured by Amphenol ICC (FCI) and maintains full parametric equivalence with black color insulation material of polyphenylene modified composition. Operating temperature range is -40°C to 105°C. The part carries RoHS compliance and REACH Affected status. Inventory availability is 947 units. Selection is appropriate for applications requiring Amphenol ICC connector compatibility.

Amphenol ICC 65239-016LF (DUBOX™, MezzSelect™, Basics+ Series)

This substitute is manufactured by Amphenol ICC (FCI) with blue color insulation and thermoplastic glass-filled material. Operating temperature range extends to -65°C to 125°C, matching the extended thermal performance of the 1-104482-4. The part carries RoHS compliance and REACH Affected status. Inventory availability is 2448 units. Selection is appropriate for applications requiring extended thermal performance within the Amphenol ICC product line.

Frequently Asked Questions (FAQ)

Q: What are the core compatibility requirements for substituting the 86177-7?

A: The substitute part must maintain the following parameters: 32-position receptacle configuration, female socket contact type, 0.100" (2.54mm) pitch, 2-row layout with 0.100" (2.54mm) row spacing, free hanging in-line mounting, crimp termination, and MSL 1 rating. All listed substitutes meet these requirements.

Q: Does color variation affect substitution compatibility?

A: Color is a cosmetic parameter that does not affect electrical or mechanical compatibility. The 86177-7 (black), 1420000-1 (natural), 65043-021LF (black), and 65239-016LF (blue) are all functionally equivalent at the connector interface level.

Q: How do operating temperature ranges affect part selection?

A: The 86177-7 operates from -65°C to 105°C. Substitute parts with extended ranges (1-104482-4 and 65239-016LF at -65°C to 125°C) are suitable for all applications within the original specification. The 1420000-1 (-40°C to 80°C) and 65043-021LF (-40°C to 105°C) have narrower ranges and are suitable only for applications operating within their specified limits.

Q: What is the significance of insulation material differences?

A: The main part uses thermoplastic insulation. Substitutes employ thermoplastic, polybutylene terephthalate (PBT) glass-filled, polyphenylene modified, or thermoplastic glass-filled materials. These material variations do not affect parametric compatibility for the 32-position, 2.54mm pitch rectangular connector housing interface.

Q: Are there manufacturer-specific considerations?

A: The 86177-7 is a TE Connectivity AMP Connectors product. Substitutes 1-104482-4 and 1420000-1 are also TE Connectivity products, while 65043-021LF and 65239-016LF are Amphenol ICC (FCI) products. Both manufacturers produce connectors meeting the specified parametric requirements. Selection may depend on existing supply chain relationships or design documentation requirements.

Q: What inventory levels are available for each substitute?

A: Current inventory levels are as follows: 86177-7 (714 units), 1-104482-4 (1356 units), 1420000-1 (10452 units), 65043-021LF (947 units), and 65239-016LF (2448 units). The 1420000-1 offers the highest availability.

Q: Do all substitutes carry equivalent compliance certifications?

A: All parts carry MSL 1 (Unlimited) rating. RoHS compliance is present across all parts (RoHS Compliant or ROHS3 Compliant). REACH status varies: 86177-7 and 1-104482-4 have undefined or unspecified status, 1420000-1 is REACH Unaffected, while 65043-021LF and 65239-016LF are REACH Affected. Compliance requirements should be verified against specific application and regional regulations.

Q: Can the 86177-7 be directly replaced with any of these substitutes without design modification?

A: Yes. All substitute parts maintain identical parametric specifications for connector type, position count, pitch, row configuration, mounting type, and termination method. Direct substitution is supported at the connector housing interface level.
