The TE Connectivity AMP Connectors 86177-3 is a 24-position rectangular connector receptacle housing designed for 0.100" (2.54mm) pitch applications. This component is part of the AMPMODU Mod IV series and serves as a receptacle housing for female socket contacts in free-hanging, in-line configurations. The part is Active in product status and RoHS Compliant. Equivalent and substitute parts are identified to support design flexibility, inventory optimization, and supply chain continuity for applications requiring 24-position rectangular connector housings with matching electrical and mechanical specifications.

Key Parameters

Parameter	Specification
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	24
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Operating Temperature Range	-65°C ~ 105°C
RoHS Status	RoHS Compliant
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the 86177-3 are classified based on strict adherence to the following critical parameters:

Primary Substitution Criteria:

Connector Type: Receptacle
Contact Type: Female Socket
Number of Positions: 24
Pitch: 0.100" (2.54mm)
Number of Rows: 2
Row Spacing: 0.100" (2.54mm)
Mounting Type: Free Hanging (In-Line)
Contact Termination: Crimp
Moisture Sensitivity Level: 1 (Unlimited)

Parametric Equivalent Parts maintain all critical electrical and mechanical parameters, including pitch, position count, row configuration, and termination method. These parts are direct functional replacements within the same or compatible series.

Similar Parts share the core electrical and mechanical specifications but may differ in insulation material composition, operating temperature range, or manufacturer series. These parts are suitable for applications where the primary functional requirements are met, though design validation may be necessary for specific environmental or thermal conditions.

Parameter Comparison

Manufacturer Part Number	Manufacturer	Series	Color	Insulation Material	Operating Temperature	RoHS Status	Inventory (Pcs)
86177-3	TE Connectivity AMP Connectors	AMPMODU Mod IV	Black	Thermoplastic	-65°C ~ 105°C	RoHS Compliant	916

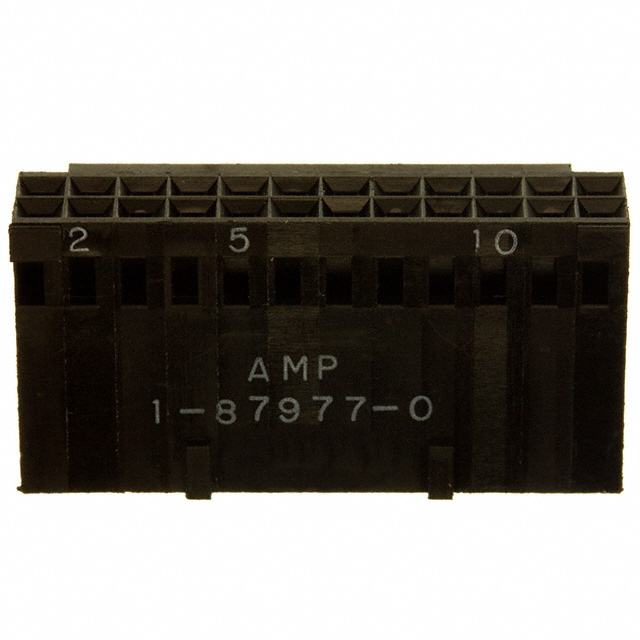

1-87977-0	TE Connectivity AMP Connectors	AMPMODU Mod IV	Black	Thermoplastic	-65°C ~ 105°C	RoHS Compliant	1327
1-925370-2	TE Connectivity AMP Connectors	AMPMODU Mod IV	Green	Polyamide (PA66), Nylon 6/6, Glass Filled	-65°C ~ 105°C	RoHS Compliant	926
2-87456-0	TE Connectivity AMP Connectors	AMPMODU Mod IV	Black	Polyamide (PA), Nylon, Glass Filled	-65°C ~ 105°C	RoHS Compliant	3023
0022552242	Molex	SL 70450	Black	Polyester, Glass Filled	-40°C ~ 105°C	ROHS3 Compliant	1942
69176-024LF	Amphenol ICC (FCI)	Mini-PV™, Basics+	Black	Polyphenylene, Modified	-40°C ~ 105°C	RoHS Compliant	1951
65043-025LF	Amphenol ICC (FCI)	Mini-PV™, Basics+	Black	Polyphenylene, Modified	-40°C ~ 105°C	RoHS Compliant	854

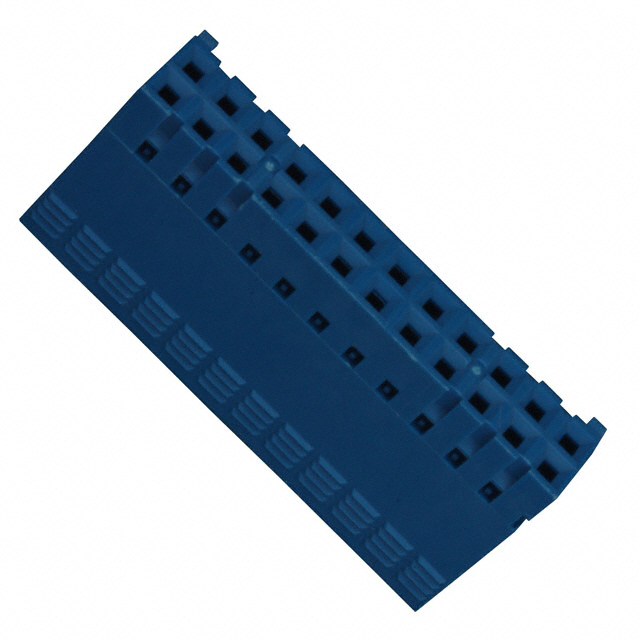

65239-012LF	Amphenol ICC (FCI)	DUBOX™, MezzSelect™, Basics+	Blue	Thermoplastic, Glass Filled	-65°C ~ 125°C	RoHS Compliant	1248

Engineering Selection Recommendations

TE Connectivity AMP Connectors Parametric Equivalents (1-87977-0, 1-925370-2, 2-87456-0): These parts maintain full compatibility with the 86177-3 across all critical electrical and mechanical parameters. All three are Active products with RoHS Compliance and MSL 1 rating. Selection among these TE Connectivity options is determined by color requirement (Black or Green) and insulation material preference (Thermoplastic or Glass-Filled Polyamide). The 2-87456-0 variant offers the highest current inventory at 3023 pieces.

Molex 0022552242: This part meets all core functional requirements with identical pitch, position count, and row configuration. Operating temperature range is reduced to -40°C ~ 105°C compared to the 86177-3 baseline of -65°C ~ 105°C. ROHS3 Compliance is confirmed. This part includes a Polarizing Key feature not present in the main part specification. Selection is appropriate for applications within the -40°C to 105°C thermal envelope.

Amphenol ICC (FCI) Mini-PV™ Series (69176-024LF, 65043-025LF): Both parts are parametric equivalents with identical pitch, position count, and row spacing. Operating temperature range is -40°C ~ 105°C. The 69176-024LF includes a Polarizing Key feature; the 65043-025LF does not. Both are RoHS Compliant with REACH Affected status. Selection between these two is determined by polarizing key requirement.

Amphenol ICC (FCI) 65239-012LF: This part is a parametric equivalent with extended operating temperature range of -65°C ~ 125°C, exceeding the 86177-3 specification. Blue color distinguishes this variant. Thermoplastic, Glass-Filled insulation material is specified. RoHS Compliance and REACH Affected status are confirmed. This part is suitable for applications requiring extended thermal performance.

Frequently Asked Questions (FAQ)

Q: Can the 86177-3 be directly replaced with any of the listed substitute parts?

A: Direct replacement capability depends on application-specific requirements. The TE Connectivity parametric equivalents (1-87977-0, 1-925370-2, 2-87456-0) maintain identical electrical and mechanical specifications and are direct functional replacements. Amphenol ICC (FCI) and Molex parts meet core functional requirements but operate within a reduced temperature range (-40°C minimum vs. -65°C minimum). Verify application thermal requirements before selection.

Q: What is the difference between Parametric Equivalent and Similar classification?

A: Parametric Equivalent parts maintain all critical specifications including pitch, position count, row configuration, and operating temperature range. Similar parts share core electrical and mechanical specifications but may differ in operating temperature range, insulation material, or manufacturer series. Both classifications indicate functional compatibility for the specified 24-position, 2.54mm pitch receptacle housing application.

Q: Does color selection affect electrical performance?

A: Color is a cosmetic and identification parameter only. The 86177-3 (Black), 1-925370-2 (Green), and 65239-012LF (Blue) variants are electrically identical. Color selection is determined by application documentation, assembly traceability requirements, or design specifications.

Q: What is the significance of the Polarizing Key feature in 0022552242 and 69176-024LF?

A: The Polarizing Key is a mechanical feature that prevents incorrect mating orientation. The 86177-3 specification does not include this feature. If the application requires polarization protection, select 0022552242 or 69176-024LF. If the application does not require polarization, this feature does not affect compatibility.

Q: Are all substitute parts RoHS Compliant?

A: Yes. All listed substitute parts carry RoHS Compliance or ROHS3 Compliance certification. The 86177-3 is RoHS Compliant. All substitute options maintain this compliance status.

Q: What is the operating temperature consideration when selecting between 86177-3 and Amphenol ICC (FCI) parts?

A: The 86177-3 operates from -65°C to 105°C. Amphenol ICC (FCI) Mini-PV™ series parts (69176-024LF, 65043-025LF) operate from -40°C to 105°C, and the 65239-012LF operates from -65°C to 125°C. For applications requiring operation below -40°C, select the 86177-3, 1-87977-0, 1-925370-2, 2-87456-0, or 65239-012LF. For applications requiring operation above 105°C, select 65239-012LF only.

Q: What is the Moisture Sensitivity Level (MSL) and why is it important?

A: MSL 1 (Unlimited) indicates the component has unlimited shelf life and requires no special moisture control during storage or handling. All listed parts carry MSL 1 rating, confirming compatibility in standard warehouse and assembly environments without desiccant packaging or baking requirements.

Q: Can I mix different substitute parts in the same assembly?

A: All listed parts are mechanically and electrically compatible within the specified 24-position, 2.54mm pitch receptacle housing category. However, design documentation should specify a single part number or approved equivalent list to ensure assembly consistency and traceability.
