Amphenol ICC 861400162YO2LF Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 861400162YO2LF is a vertical rectangular connector header from the BERGSTIK® series, designed for through-hole mounting with 16 positions arranged in 2 rows at 0.100" (2.54mm) pitch. This connector supports board-to-board or cable applications with solder termination and push-pull fastening. The part is currently active in production with 792 units in stock.

Equivalent and substitute parts are necessary when the primary part becomes unavailable, when alternative sourcing reduces lead times or costs, or when design requirements allow for compatible alternatives that meet the same electrical and mechanical specifications.

Key Parameters

Parameter	Value
Manufacturer Part Number	861400162YO2LF
Manufacturer	Amphenol ICC (FCI)
Series	BERGSTIK®
Connector Type	Header, Breakaway
Contact Type	Male Pin
Number of Positions	16
Number of Rows	2
Pitch - Mating	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Shape	Square
Shrouding	Unshrouded
Current Rating	3A
Voltage Rating	1000V
Operating Temperature	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution of rectangular connector headers is determined by strict alignment of the following critical parameters:

Primary Substitution Criteria:

Number of positions: 16
Number of rows: 2
Pitch - mating: 0.100" (2.54mm)
Row spacing - mating: 0.100" (2.54mm)
Contact type: Male Pin
Mounting type: Through Hole
Termination: Solder
Fastening type: Push-Pull
Contact shape: Square
Shrouding: Unshrouded
Material flammability rating: UL94 V-0

Secondary Compatibility Factors:

Operating temperature range (must encompass or match the application requirement)
Current rating (must meet or exceed application requirements)
Voltage rating (must meet or exceed application requirements)
Contact finish and material composition
Insulation material and height
Overall contact length and mating contact length

All substitute parts listed below maintain the critical primary criteria. Variations in secondary factors such as contact length, insulation height, and contact finish thickness are acceptable within standard engineering tolerances for this connector category, provided the electrical and mechanical interface remains compatible.

Parameter Comparison

Parameter	861400162YO2LF (Main)	0010977166 (Molex)	0901310768 (Molex)	0901310928 (Molex)	61301621121 (Würth)	826632-8 (TE)	87227-8 (TE)	929836-01-08 (3M)	929836-01-08-RK (3M)	929836-09-08 (3M)	929836-09-08-RK (3M)
Manufacturer	Amphenol ICC	Molex	Molex	Molex	Würth Elektronik	TE Connectivity	TE Connectivity	3M	3M	3M	3M
Series	BERGSTIK®	C-Grid 70280	C-Grid III 90131	C-Grid III 90131	WR-PHD	AMPMODU Mod II	AMPMODU Mod II	929	929	929	929
Number of Positions	16	16	16	16	16	16	16	16	16	16	16
Number of Rows	2	2	2	2	2	2	2	2	2	2	2
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Shape	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square
Shrouding	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded
Contact Length - Mating	0.276" (7.00mm)	0.320" (8.13mm)	0.266" (6.75mm)	0.266" (6.75mm)	0.236" (6.00mm)	0.264" (6.70mm)	0.318" (8.08mm)	0.235" (5.97mm)	0.235" (5.97mm)	0.235" (5.97mm)	0.235" (5.97mm)
Contact Length - Post	0.118" (3.00mm)	0.110" (2.79mm)	0.114" (2.90mm)	0.114" (2.90mm)	0.118" (3.00mm)	0.126" (3.20mm)	0.125" (3.18mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.145" (3.68mm)	0.145" (3.68mm)
Overall Contact Length	0.496" (12.60mm)	0.520" (13.21mm)	0.478" (12.15mm)	0.478" (12.15mm)	0.454" (11.54mm)	0.500" (12.70mm)	0.533" (14.65mm)	0.445" (11.30mm)	0.445" (11.30mm)	0.480" (12.19mm)	0.480" (12.19mm)
Insulation Height	0.102" (2.60mm)	0.090" (2.29mm)	0.098" (2.50mm)	0.098" (2.50mm)	0.100" (2.54mm)	0.110" (2.79mm)	0.090" (2.29mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Contact Finish - Mating	Gold or Gold, GXT™	Gold	Gold	Gold	Gold	Gold	Gold	Tin-Lead	Tin	Tin-Lead	Tin
Contact Finish Thickness - Mating	8.00µin (0.203µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	30.0µin (0.76µm)	Not specified	3.90µin (0.099µm)	15.0µin (0.38µm)	100.0µin (2.54µm)	200.0µin (5.08µm)	100.0µin (2.54µm)	200.0µin (5.08µm)
Contact Material	Copper Alloy	Copper Alloy	Brass	Brass	Copper Alloy	Brass	Phosphor Bronze	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy
Insulation Material	Thermoplastic	Liquid Crystal Polymer (LCP), Glass Filled	Polyester, Glass Filled	Polyester, Glass Filled	Polyamide (PA6T), Nylon 6T	Polybutylene Terephthalate (PBT)	Thermoplastic	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT)	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT)
Operating Temperature	-55°C ~ 125°C	Not specified	Not specified	Not specified	-40°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Current Rating	3A	Not specified	Not specified	Not specified	3A	5A	3A	2.5A	2.5A	2.5A	2.5A
Voltage Rating	1000V	Not specified	Not specified	Not specified	250V	Not specified	Not specified	Not specified	Not specified	Not specified	Not specified
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
RoHS Status	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	Not applicable	RoHS non-compliant	RoHS Compliant	RoHS non-compliant	RoHS Compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	Not Applicable	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	Not Applicable	Not Applicable
Product Status	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
Inventory Availability	792 Pcs	9755 Pcs	2103 Pcs	2685 Pcs	19890 Pcs	1375 Pcs	1818 Pcs	960 Pcs	1723 Pcs	1582 Pcs	3487 Pcs

Engineering Selection Recommendations

All listed substitute parts maintain active product status and meet the core mechanical and electrical interface requirements of the 861400162YO2LF. Selection among these alternatives depends on specific application constraints and compliance requirements.

RoHS Compliance Consideration: For applications requiring RoHS compliance, the following parts are suitable:

Molex 0010977166, 0901310768, 0901310928 (ROHS3 Compliant)

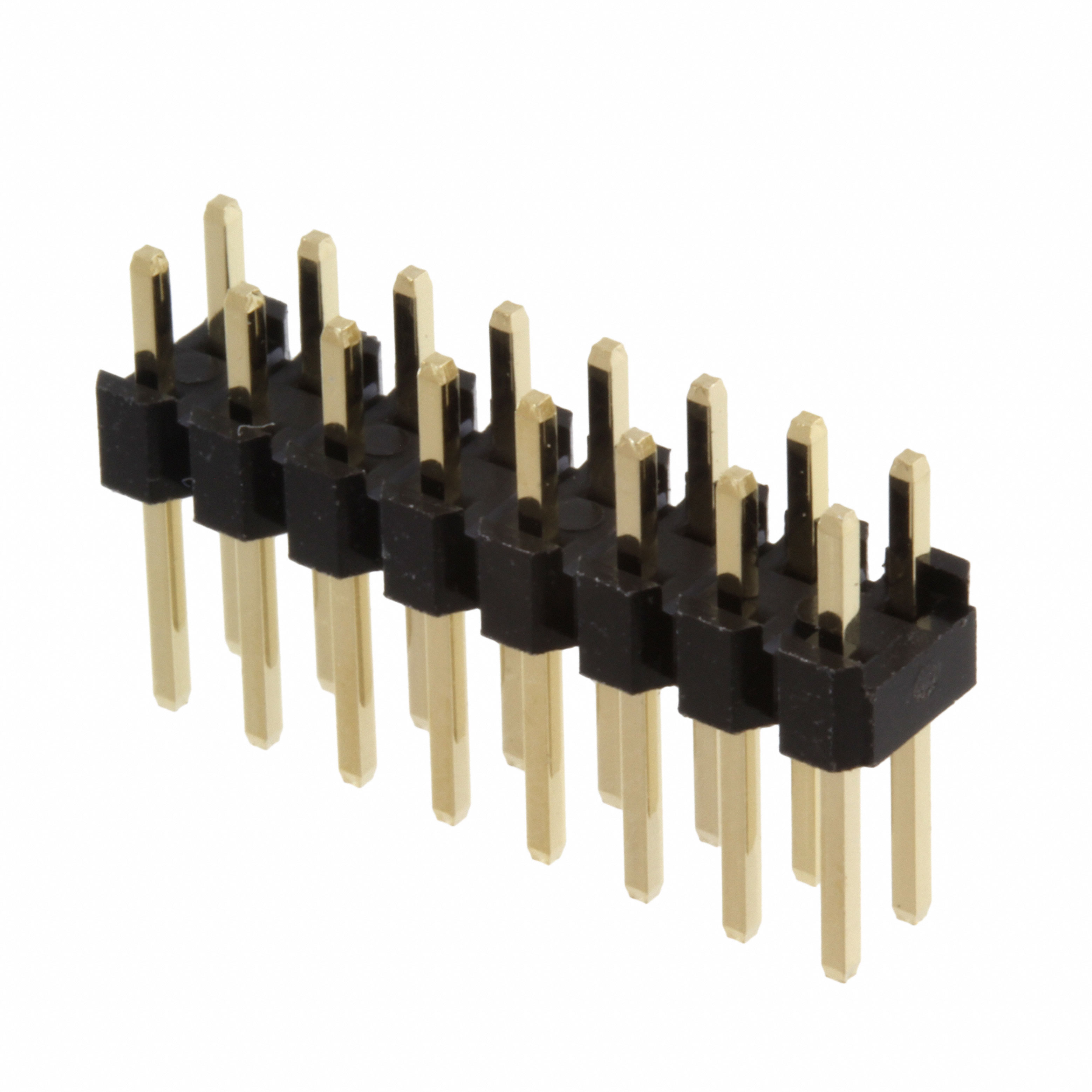

Würth Elektronik 61301621121 (ROHS3 Compliant)
TE Connectivity 826632-8 (ROHS3 Compliant)
3M 929836-01-08-RK, 929836-09-08-RK (RoHS Compliant)

The TE Connectivity 87227-8 and 3M 929836-01-08, 929836-09-08 are not RoHS compliant and should not be used in applications with RoHS requirements.

Temperature Range Consideration: The main part 861400162YO2LF operates from -55°C to 125°C. Substitute parts with specified operating temperature ranges are:

Würth Elektronik 61301621121: -40°C ~ 105°C
TE Connectivity 826632-8: -65°C ~ 105°C
TE Connectivity 87227-8: -65°C ~ 105°C
3M 929836 series: -40°C ~ 105°C

Applications requiring the full -55°C to 125°C range should confirm compatibility with the selected substitute or verify that the application's actual operating temperature falls within the substitute's specified range.

Current Rating Consideration: The main part is rated for 3A. The TE Connectivity 826632-8 is rated for 5A, providing additional current capacity. The 3M 929836 series is rated for 2.5A, which is below the main part specification and should only be selected if the application current requirement does not exceed 2.5A.

Voltage Rating Consideration: The main part is rated for 1000V. The Würth Elektronik 61301621121 is rated for 250V. Applications requiring the full 1000V rating should select from parts with equivalent or higher voltage specifications, or confirm that the application voltage does not exceed 250V.

Contact Finish Consideration: The main part features gold or gold GXT™ finish on mating contacts. Molex, Würth, and TE Connectivity alternatives maintain gold mating contact finish. The 3M 929836 series uses tin-lead or tin finish on mating contacts, which may affect contact resistance and corrosion characteristics in specific environments.

Frequently Asked Questions (FAQ)

Q: Can I substitute the Amphenol ICC 861400162YO2LF with any of the listed parts?

A: All listed parts share the same critical mechanical and electrical interface parameters: 16 positions, 2 rows, 0.100" (2.54mm) pitch, male pin contacts, through-hole mounting, solder termination, and push-pull fastening. However, application-specific requirements such as operating temperature range, current rating, voltage rating, and RoHS compliance must be verified before substitution.

Q: What is the difference between the Molex C-Grid 70280 (0010977166) and C-Grid III 90131 (0901310768, 0901310928)?

A: Both are Molex 16-position, 2-row, 2.54mm pitch headers. The C-Grid 70280 features liquid crystal polymer (LCP) glass-filled insulation and is available in bulk packaging. The C-Grid III 90131 features polyester glass-filled insulation and is available in both bulk and tray packaging. The C-Grid III 90131 is designed for board-to-cable/wire applications, while the C-Grid 70280 supports board-to-board or cable applications. Contact length and insulation height differ slightly between the two series.

Q: Why do some substitute parts have lower current ratings than the main part?

A: The 3M 929836 series is rated for 2.5A, compared to the main part's 3A rating. This reflects differences in contact material composition, contact finish thickness, and insulation material properties. The 3M parts are suitable for applications with current requirements up to 2.5A. Applications requiring 3A or higher should select alternatives with equivalent or higher current ratings.

Q: Are the 3M 929836-01-08 and 929836-01-08-RK interchangeable?

A: Both parts have identical mechanical dimensions and electrical interface. The primary difference is RoHS compliance status: 929836-01-08 is RoHS non-compliant with tin-lead mating contact finish, while 929836-01-08-RK is RoHS compliant with tin mating contact finish. For new designs or applications with RoHS requirements, use the -RK variant. For legacy systems without RoHS requirements, either part is acceptable.

Q: What is the difference between 929836-09-08 and 929836-01-08?

A: Both are 3M 929 series 16-position headers with identical pitch and row spacing. The primary difference is contact post length: 929836-09-08 has a 0.145" (3.68mm) post length, while 929836-01-08 has a 0.110" (2.79mm) post length. This affects overall contact length and board thickness compatibility. Select based on your PCB thickness and mating connector depth requirements.

Q: Can I use the Würth Elektronik 61301621121 in a high-voltage application?

A: The Würth Elektronik 61301621121 is rated for 250V, while the main part is rated for 1000V. This part is not suitable for applications requiring 1000V rating. Verify that your application voltage does not exceed 250V before selecting this substitute.

Q: What packaging options are available for these substitute parts?

A: Most substitute parts are available in bulk packaging. The Molex 0901310928 is available in tray packaging. Packaging selection may affect handling, storage, and assembly processes. Confirm packaging requirements with your procurement and assembly teams before finalizing part selection.

Q: Are all substitute parts currently in production?

A: All listed substitute parts have active product status, indicating current production availability. Inventory levels vary by manufacturer and distributor. The Würth Elektronik 61301621121 has the highest inventory availability at 19,890 units, while the TE Connectivity 826632-8 has 1,375 units. Verify current inventory with your component supplier before committing to design changes.
