Part Overview

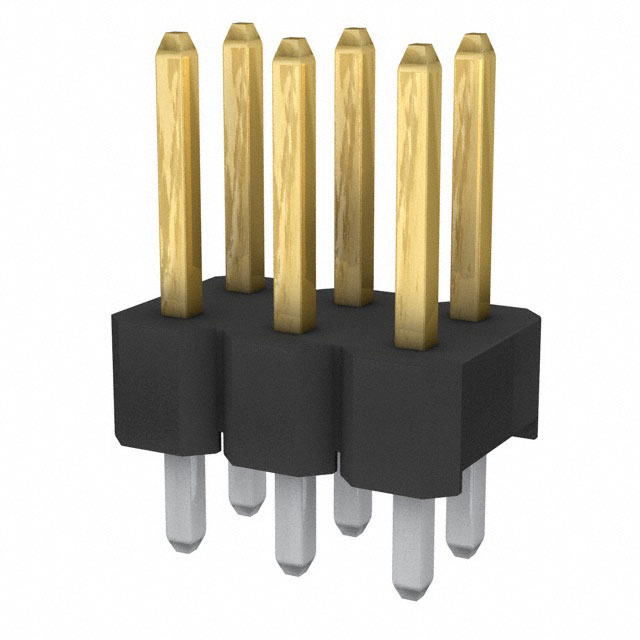

The Amphenol ICC 861400062YO2 is a through-hole rectangular connector header with 6 positions at 2.54mm pitch, designed for board-to-board or cable applications. This component features a breakaway header configuration with male pins, solder termination, and push-pull fastening. The part is classified as obsolete, necessitating identification of active equivalent and substitute components that maintain electrical and mechanical compatibility for ongoing production and repair applications.

Key Parameters

Parameter	Value
Manufacturer Part Number	861400062YO2
Manufacturer	Amphenol ICC (FCI)
Category	Rectangular Connectors
Series	BERGSTIK®
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Shape	Square
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Operating Temperature	-55°C ~ 125°C
Current Rating	3A
Voltage Rating	1000V
Material Flammability Rating	UL94 V-0
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Product Status	Obsolete
RoHS Status	RoHS non-compliant

Substitute Part Grouping Explanation

Substitution of the 861400062YO2 is determined by strict adherence to the following electrical and mechanical parameters:

Critical Matching Parameters:

Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 6
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Connector Type: Header, Breakaway
Contact Type: Male Pin
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Shape: Square
Contact Material: Copper Alloy
Material Flammability Rating: UL94 V-0
Moisture Sensitivity Level: 1 (Unlimited)

Allowable Variations:

Contact Length - Mating: Variations permitted (0.276" to 0.320")
Contact Length - Post: Variations permitted (0.110" to 0.185")
Overall Contact Length: Varies with post length
Insulation Height: Variations permitted (0.090" to 0.102")
Insulation Material: Thermoplastic or Liquid Crystal Polymer (LCP), Glass Filled
Contact Finish - Mating: Gold or Tin finishes acceptable
Contact Finish Thickness - Mating: Variations permitted
Product Status: Active substitutes preferred over obsolete
RoHS Status: RoHS Compliant substitutes available

Substitute parts from Molex C-Grid 70280 and C-Grid 70287 series maintain all critical parameters while offering active product status and improved compliance certifications.

Parameter Comparison

Parameter	861400062YO2 (Main)	861400062YO2LF	0010897063	0010977065	0010977066	0702800711	0702800751	0702800791	0702871050	0702871148	0702871246
Manufacturer	Amphenol ICC	Amphenol ICC	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Series	BERGSTIK®	BERGSTIK®	C-Grid 70280	C-Grid 70280	C-Grid 70280	C-Grid 70280	C-Grid 70280	C-Grid 70280	C-Grid 70287	C-Grid 70287	C-Grid 70287
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	6	6	6	6	6	6	6	6	6	6	6
Number of Rows	2	2	2	2	2	2	2	2	2	2	2
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Connector Type	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Kinked Pin, Solder	Kinked Pin, Solder	Kinked Pin, Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Shape	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square
Contact Material	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy
Insulation Material	Thermoplastic	Thermoplastic	LCP, Glass Filled	LCP, Glass Filled	LCP, Glass Filled	LCP, Glass Filled	LCP, Glass Filled	LCP, Glass Filled	LCP, Glass Filled	LCP, Glass Filled	LCP, Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Product Status	Obsolete	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
RoHS Status	RoHS non-compliant	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Contact Length - Mating	0.276" (7.00mm)	0.276" (7.00mm)	0.320" (8.13mm)	0.320" (8.13mm)	0.320" (8.13mm)	0.320" (8.13mm)	0.320" (8.13mm)	0.320" (8.13mm)	0.320" (8.13mm)	0.320" (8.13mm)	0.320" (8.13mm)
Contact Length - Post	0.118" (3.00mm)	0.118" (3.00mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.185" (4.70mm)	0.185" (4.70mm)	0.185" (4.70mm)	0.125" (3.18mm)	0.125" (3.18mm)	0.125" (3.18mm)
Overall Contact Length	0.496" (12.60mm)	0.496" (12.60mm)	0.520" (13.21mm)	0.520" (13.21mm)	0.520" (13.21mm)	0.595" (15.11mm)	0.595" (15.11mm)	0.595" (15.11mm)	0.535" (14.69mm)	0.535" (14.69mm)	0.535" (14.69mm)
Insulation Height	0.102" (2.60mm)	0.102" (2.60mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)	0.090" (2.29mm)
Contact Finish - Mating	Gold or Gold, GXT™	Gold or Gold, GXT™	Gold	Tin	Gold	Tin	Gold	Gold	Tin	Gold	Gold
Inventory Availability	1076 Pcs	12059 Pcs	880 Pcs	797 Pcs	11708 Pcs	1033 Pcs	681 Pcs	1031 Pcs	4172 Pcs	876 Pcs	884 Pcs

Engineering Selection Recommendations

Primary Substitute - Direct Amphenol Replacement: The 861400062YO2LF is the direct active equivalent from Amphenol ICC, maintaining identical electrical and mechanical specifications while upgrading to RoHS Compliant status. This part is preferred for applications requiring continuity within the BERGSTIK® series and offers the highest inventory availability at 12,059 pieces.

Secondary Substitutes - Molex C-Grid 70280 Series: The Molex C-Grid 70280 series (part numbers 0010897063, 0010977065, 0010977066, 0702800711, 0702800751, 0702800791) provides full electrical and mechanical compatibility with variations in contact length and finish specifications. These parts are ROHS3 Compliant and maintain active product status. Selection within this series depends on specific contact length and finish requirements:

0010897063 and 0010977066: Gold mating finish, standard post length (0.110")
0010977065: Tin mating finish, standard post length (0.110")
0702800711, 0702800751, 0702800791: Extended post length (0.185") for deeper PCB penetration

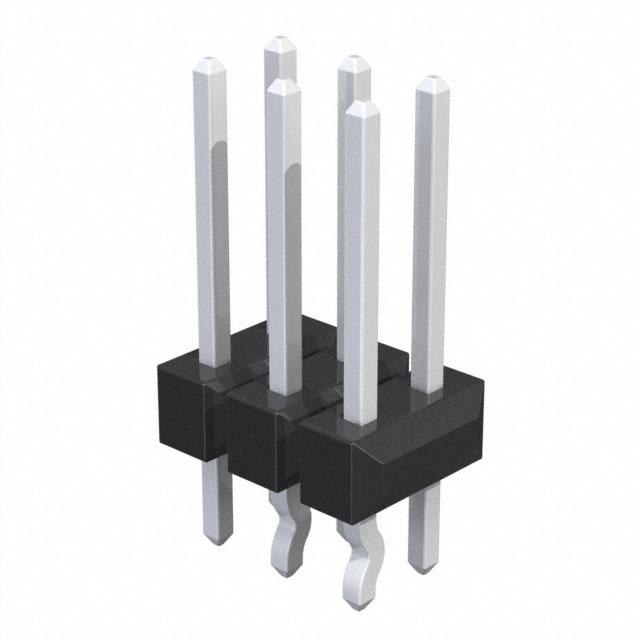

Tertiary Substitutes - Molex C-Grid 70287 Series: The Molex C-Grid 70287 series (part numbers 0702871050, 0702871148, 0702871246) features kinked pin termination in addition to solder termination, providing enhanced mechanical retention. These parts maintain all critical electrical parameters and ROHS3 Compliance with intermediate post length (0.125"). This series is suitable for applications requiring additional mechanical stability.

Compliance Considerations: All substitute parts from Amphenol ICC and Molex are ROHS Compliant or ROHS3 Compliant, addressing the RoHS non-compliant status of the original 861400062YO2. The original part remains available in inventory (1076 pieces) for legacy applications where RoHS compliance is not required.

Frequently Asked Questions (FAQ)

Q: Can Molex C-Grid 70280 parts directly replace the Amphenol 861400062YO2? A: Yes. The Molex C-Grid 70280 series maintains all critical electrical and mechanical parameters: 6-position, 2.54mm pitch, 2-row configuration, male pin headers with push-pull fastening, square contact shape, and UL94 V-0 flammability rating. Variations in contact length and finish do not affect functional compatibility in standard board-to-board applications.

Q: What is the difference between the Molex C-Grid 70280 and C-Grid 70287 series? A: The primary difference is termination type. C-Grid 70280 parts use standard solder termination, while C-Grid 70287 parts feature kinked pin solder termination, which provides enhanced mechanical retention in the PCB. Contact lengths also differ: C-Grid 70280 offers 0.110" or 0.185" post lengths, while C-Grid 70287 provides 0.125" post length.

Q: Does contact finish (Gold vs. Tin) affect electrical performance? A: Contact finish does not affect electrical performance in standard applications. Both gold and tin finishes provide adequate conductivity and corrosion resistance. Selection should be based on application requirements and cost considerations. Gold finishes offer superior corrosion resistance in harsh environments, while tin finishes are cost-effective for general-purpose applications.

Q: Are there dimensional compatibility concerns when substituting parts with different contact lengths? A: Contact length variations (0.110" to 0.185" post length) may affect mating depth and overall stack height. Verify that the substitute part's contact length is compatible with the mating connector and PCB thickness in your specific application. Extended post length parts (0.185") provide deeper PCB penetration, while shorter variants (0.110") are suitable for standard PCB thicknesses.

Q: What is the significance of RoHS Compliance for these parts? A: RoHS Compliance indicates the part meets Restriction of Hazardous Substances regulations, eliminating lead and other restricted materials. The original 861400062YO2 is RoHS non-compliant, while all substitute parts are RoHS Compliant or ROHS3 Compliant. For new designs and applications subject to RoHS regulations, compliant substitutes are required.

Q: Can the 861400062YO2LF be used as a drop-in replacement for the 861400062YO2? A: Yes. The 861400062YO2LF is the direct active equivalent with identical specifications and RoHS Compliant status. It is the recommended substitute for applications requiring continuity within the Amphenol BERGSTIK® product line.

Q: What inventory considerations should guide part selection? A: The 861400062YO2LF offers the highest availability at 12,059 pieces, followed by the Molex 0010977066 at 11,708 pieces. For applications with extended lead times or high-volume requirements, these parts provide optimal supply chain reliability.
