Equivalent & Substitute Parts for Würth Elektronik 860010572002

Part Overview

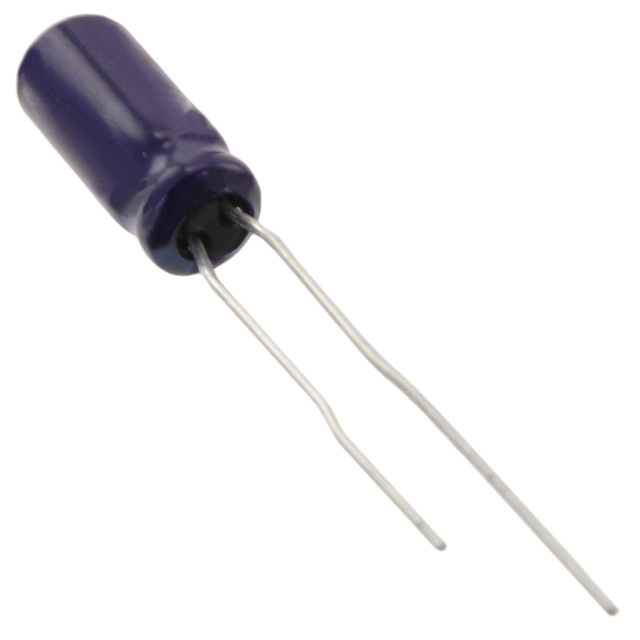

The Würth Elektronik 860010572002 is a 10 µF, 35 V aluminum electrolytic capacitor in radial configuration with 2000 hours lifetime at 85°C. This component is classified as Active and ROHS3 Compliant. Substitute parts are identified to address application requirements for extended temperature operation, increased voltage ratings, or extended lifetime specifications while maintaining the same capacitance value, tolerance, and physical form factor.

Key Parameters

Parameter	Value
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temperature	2000 Hrs @ 85°C
Operating Temperature Range	-40°C ~ 85°C
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitute parts for the 860010572002 are grouped into three categories based on allowed electrical and mechanical parameters:

Category 1: Direct Equivalent (Same Voltage, Extended Temperature Operation)

Part 860020572003: Maintains 10 µF, 35 V, identical physical dimensions, but extends operating temperature to 105°C and lifetime to 2000 Hrs @ 105°C. Series WCAP-ATG5.

Category 2: Voltage Upgrade (Higher Rated Voltage, Same Capacitance)

Part 860010672009: 10 µF, 50 V, same series WCAP-ATG8, same lifetime 2000 Hrs @ 85°C
Part 860010772009: 10 µF, 63 V, same series WCAP-ATG8, same lifetime 2000 Hrs @ 85°C
Part 860020672010: 10 µF, 50 V, series WCAP-ATG5, extended to 2000 Hrs @ 105°C
Part 860020772010: 10 µF, 63 V, series WCAP-ATG5, extended to 2000 Hrs @ 105°C
Part 860080772001: 10 µF, 63 V, series WCAP-ATLI, extended temperature -55°C ~ 105°C, 2000 Hrs @ 105°C

Category 3: Extended Lifetime (Higher Rated Voltage, Extended Lifetime)

Part 860160572001: 10 µF, 35 V, series WCAP-ATLL, 4000 Hrs @ 105°C, extended temperature -55°C ~ 105°C
Part 860160672009: 10 µF, 50 V, series WCAP-ATLL, 4000 Hrs @ 105°C, extended temperature -55°C ~ 105°C
Part 860240572001: 10 µF, 35 V, series WCAP-AT1H, 5000 Hrs @ 105°C
Part 860240672002: 10 µF, 50 V, series WCAP-AT1H, 5000 Hrs @ 105°C

All substitute parts maintain identical physical dimensions (0.197" Dia, 0.492" Height, 0.079" Lead Spacing), radial through-hole mounting, and ROHS3 compliance.

Parameter Comparison

Part Number	Manufacturer	Series	Capacitance	Voltage	Tolerance	Lifetime @ Temp	Operating Temp Range	Lead Spacing	Size Dia	Height Max	Mounting	Package	RoHS
860010572002	Würth Elektronik	WCAP-ATG8	10 µF	35 V	±20%	2000 Hrs @ 85°C	-40°C ~ 85°C	0.079" (2.00mm)	0.197" (5.00mm)	0.492" (12.50mm)	Through Hole	Radial, Can	ROHS3
860020572003	Würth Elektronik	WCAP-ATG5	10 µF	35 V	±20%	2000 Hrs @ 105°C	-40°C ~ 105°C	0.079" (2.00mm)	0.197" (5.00mm)	0.492" (12.50mm)	Through Hole	Radial, Can	ROHS3
860010672009	Würth Elektronik	WCAP-ATG8	10 µF	50 V	±20%	2000 Hrs @ 85°C	-40°C ~ 85°C	0.079" (2.00mm)	0.197" (5.00mm)	0.492" (12.50mm)	Through Hole	Radial, Can	ROHS3
860010772009	Würth Elektronik	WCAP-ATG8	10 µF	63 V	±20%	2000 Hrs @ 85°C	-40°C ~ 85°C	0.079" (2.00mm)	0.197" (5.00mm)	0.492" (12.50mm)	Through Hole	Radial, Can	ROHS3
860020672010	Würth Elektronik	WCAP-ATG5	10 µF	50 V	±20%	2000 Hrs @ 105°C	-40°C ~ 105°C	0.079" (2.00mm)	0.197" (5.00mm)	0.492" (12.50mm)	Through Hole	Radial, Can	ROHS3
860020772010	Würth Elektronik	WCAP-ATG5	10 µF	63 V	±20%	2000 Hrs @ 105°C	-40°C ~ 105°C	0.079" (2.00mm)	0.197" (5.00mm)	0.492" (12.50mm)	Through Hole	Radial, Can	ROHS3
860080772001	Würth Elektronik	WCAP-ATLI	10 µF	63 V	±20%	2000 Hrs @ 105°C	-55°C ~ 105°C	0.079" (2.00mm)	0.197" (5.00mm)	0.492" (12.50mm)	Through Hole	Radial, Can	ROHS3
860160572001	Würth Elektronik	WCAP-ATLL	10 µF	35 V	±20%	4000 Hrs @ 105°C	-55°C ~ 105°C	0.079" (2.00mm)	0.197" (5.00mm)	0.492" (12.50mm)	Through Hole	Radial, Can	ROHS3
860160672009	Würth Elektronik	WCAP-ATLL	10 µF	50 V	±20%	4000 Hrs @ 105°C	-55°C ~ 105°C	0.079" (2.00mm)	0.197" (5.00mm)	0.492" (12.50mm)	Through Hole	Radial, Can	ROHS3
860240572001	Würth Elektronik	WCAP-AT1H	10 µF	35 V	±20%	5000 Hrs @ 105°C	-40°C ~ 105°C	0.079" (2.00mm)	0.197" (5.00mm)	0.492" (12.50mm)	Through Hole	Radial, Can	ROHS3
860240672002	Würth Elektronik	WCAP-AT1H	10 µF	50 V	±20%	5000 Hrs @ 105°C	-40°C ~ 105°C	0.079" (2.00mm)	0.197" (5.00mm)	0.492" (12.50mm)	Through Hole	Radial, Can	ROHS3

Engineering Selection Recommendations

Selection of substitute parts depends on application requirements for operating temperature, voltage margin, and component lifetime:

For Extended Temperature Operation (up to 105°C): Use 860020572003 (WCAP-ATG5 series) to maintain 35 V rating with extended upper temperature limit and 105°C lifetime rating.

For Voltage Margin Increase: Use 860010672009 or 860010772009 (WCAP-ATG8 series) to upgrade to 50 V or 63 V respectively while maintaining the same thermal and lifetime characteristics as the original part.

For Combined Temperature and Voltage Upgrade: Use 860020672010 or 860020772010 (WCAP-ATG5 series) to achieve both 105°C operation and higher voltage ratings (50 V or 63 V).

For Extended Temperature Range (-55°C to 105°C): Use 860080772001 (WCAP-ATLI series) for 63 V rating with expanded low-temperature capability.

For Extended Lifetime (4000 Hrs @ 105°C): Use 860160572001 or 860160672009 (WCAP-ATLL series) with operating range -55°C to 105°C.

For Maximum Lifetime (5000 Hrs @ 105°C): Use 860240572001 or 860240672002 (WCAP-AT1H series) with 35 V or 50 V ratings respectively.

All substitute parts maintain ROHS3 compliance and identical physical form factor, ensuring direct mechanical compatibility with the original part footprint.

Frequently Asked Questions (FAQ)

Q: Can 860020572003 be used as a direct replacement for 860010572002? A: Yes. Both parts have identical capacitance (10 µF), tolerance (±20%), voltage rating (35 V), and physical dimensions. The 860020572003 extends the operating temperature range to 105°C and provides 2000 hours lifetime at 105°C, compared to 85°C for the original part.

Q: What is the difference between WCAP-ATG8 and WCAP-ATG5 series? A: WCAP-ATG5 series supports extended temperature operation to 105°C, while WCAP-ATG8 series is rated to 85°C. Both maintain identical physical dimensions and capacitance values.

Q: Can I use a 50 V rated part (860010672009) instead of the 35 V original (860010572002)? A: Yes. Higher voltage ratings provide additional safety margin in the circuit. The 860010672009 maintains identical capacitance, tolerance, physical dimensions, and thermal characteristics while offering increased voltage headroom.

Q: What is the advantage of WCAP-ATLL series (860160572001, 860160672009)? A: WCAP-ATLL series provides 4000 hours lifetime at 105°C and extends the operating temperature range to -55°C, compared to 2000 hours at 85°C for the original part. This is suitable for applications requiring extended component life and wider temperature operation.

Q: What is the advantage of WCAP-AT1H series (860240572001, 860240672002)? A: WCAP-AT1H series provides the longest lifetime specification of 5000 hours at 105°C, suitable for applications with stringent reliability requirements and extended operational life expectations.

Q: Are all substitute parts through-hole mounted with identical lead spacing? A: Yes. All substitute parts maintain 0.079" (2.00mm) lead spacing and through-hole mounting configuration, ensuring direct compatibility with existing PCB layouts.

Q: Do all substitute parts comply with RoHS3? A: Yes. All listed substitute parts are ROHS3 Compliant, maintaining regulatory compliance with the original part.
