TE Connectivity 8-520133-1 Quick Connect Female Crimp Connector Equivalent & Substitute Parts

Part Overview

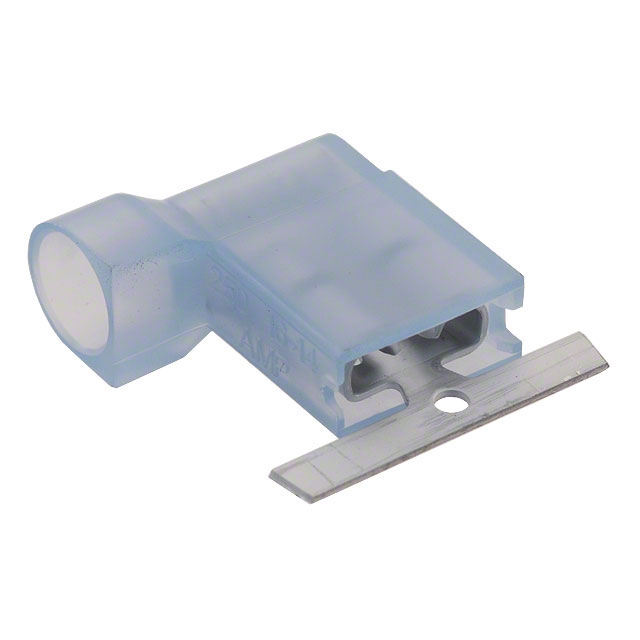

The TE Connectivity AMP Connectors 8-520133-1 is a 0.250" (6.35mm) Quick Connect Female 14-16 AWG Crimp Connector with full insulation, designed for right-angle mounting applications. This connector features a 90° angled flag terminal configuration and is part of the Ultra-Fast series. The part is currently classified as obsolete, necessitating identification of active equivalent alternatives to maintain design continuity and ensure supply chain availability for new production and repair applications.

Substiute Parts

8-520133-1

TE Connectivity AMP ConnectorsIn Stock: 9238-520133-1 Datasheet

Current PartRFQ

3-520133-2

TE Connectivity AMP ConnectorsIn Stock: 4406043-520133-2 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete 8-520133-1 is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part 3-520133-2 maintains identical specifications for tab width (0.250"), tab thickness (0.032"), wire gauge range (14-16 AWG), terminal gender (Female), terminal type (Angled - 90°, Flag), insulation classification (Fully Insulated), mounting configuration (Free Hanging/Right Angle), termination method (Crimp), contact material (Brass), contact finish (Tin), and insulation diameter (0.185"). Both parts share the same base product number (520133) and series designation (Ultra-Fast), confirming functional and mechanical interchangeability.

The primary distinction between these parts is product status and packaging configuration. The substitute part 3-520133-2 is classified as active and supplied in bulk packaging, whereas the original 8-520133-1 is obsolete and supplied in standard packaging. This substitution enables continued access to functionally identical connectors through current production channels.

Parameter Comparison

Engineering Selection Recommendations

The substitute part 3-520133-2 is the direct functional equivalent for the obsolete 8-520133-1. Selection of the substitute part is based on the following engineering criteria:

Product Status: The substitute part 3-520133-2 maintains active production status, ensuring continued availability and supply chain reliability. The original part 8-520133-1 is classified as obsolete and subject to discontinuation.

Regulatory Compliance: Both parts maintain identical ROHS3 compliance certification and EAR99 export classification, confirming equivalence for regulated applications. Moisture Sensitivity Level (MSL) rating of 1 (Unlimited) is maintained across both parts.

Electrical and Mechanical Specifications: All critical parameters including tab dimensions (0.250" width, 0.032" thickness), wire gauge compatibility (14-16 AWG), terminal configuration (90° angled flag), and contact materials (brass with tin finish) are identical between the original and substitute parts.

Packaging Consideration: The substitute part is supplied in bulk packaging rather than standard packaging. Bulk packaging does not affect connector functionality or performance; it represents a distribution format change only. Organizations requiring standard packaging quantities should consult with the supplier regarding packaging options for part 3-520133-2.

Frequently Asked Questions (FAQ)

Q: Are the 8-520133-1 and 3-520133-2 connectors mechanically interchangeable?

A: Yes. Both connectors share identical tab width (0.250"), tab thickness (0.032"), terminal type (90° angled flag), and mounting configuration (free hanging, right angle). They are direct mechanical substitutes.

Q: Can the 3-520133-2 be used in applications originally designed for the 8-520133-1?

A: Yes. The substitute part maintains identical electrical specifications (14-16 AWG wire gauge, fully insulated, crimp termination) and mechanical dimensions. No design modifications are required.

Q: What is the difference between the two part numbers?

A: The primary differences are product status and packaging. The 8-520133-1 is obsolete and supplied in standard packaging. The 3-520133-2 is active production and supplied in bulk packaging. All functional and electrical specifications are identical.

Q: Does the bulk packaging of the 3-520133-2 affect connector quality or performance?

A: No. Packaging format does not affect connector electrical performance, mechanical dimensions, or material composition. Bulk packaging is a distribution method only.

Q: Are both parts RoHS compliant?

A: Yes. Both the 8-520133-1 and 3-520133-2 are ROHS3 compliant and carry identical regulatory certifications.

Q: What wire gauge range is supported by these connectors?

A: Both connectors support 14-16 AWG wire gauge range with crimp termination.

Q: Can these connectors be used in moisture-sensitive applications?

A: Yes. Both parts carry an MSL rating of 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.

Q: Is the contact material the same between both parts?

A: Yes. Both connectors use brass contacts with tin finish, ensuring identical electrical conductivity and corrosion resistance characteristics.
