TE Connectivity AMP Connectors 8-32960-1 Equivalent & Substitute Parts

Part Overview

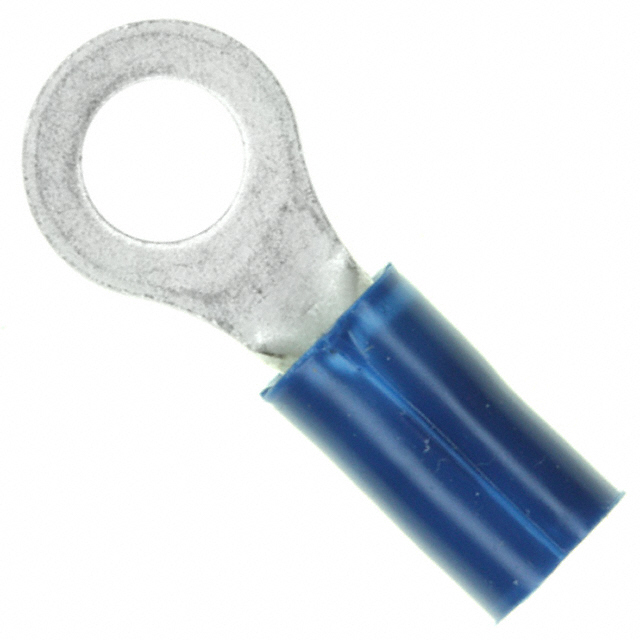

The TE Connectivity AMP Connectors 8-32960-1 is an insulated ring terminal connector designed for circular stud applications. This component features a 10 stud configuration with 14-16 AWG wire gauge capacity and crimp termination. The part is classified as obsolete, necessitating identification of active equivalent alternatives for ongoing procurement and system maintenance. The substitute part maintains functional compatibility while offering current product status and availability.

Substiute Parts

8-32960-1

TE Connectivity AMP ConnectorsIn Stock: 11028-32960-1 Datasheet

Current PartRFQ

34161

TE Connectivity AMP ConnectorsIn Stock: 148734161 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 8-32960-1 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Terminal Type: Circular
• Stud/Tab Size: 10 Stud
• Wire Gauge: 14-16 AWG
• Termination Method: Crimp
• Contact Material: Copper
• Contact Finish: Tin
• Insulation Material: Poly-Vinyl Chloride (PVC)
• Mounting Type: Free Hanging (In-Line)
• Series: Plasti-Grip

Dimensional Compatibility:

• Thickness: 0.031" (0.79mm)
• Width - Outer Edges: 0.343" (8.71mm)
• Length - Overall: 0.871" (22.12mm)

The substitute part TE Connectivity AMP Connectors 34161 satisfies all mandatory matching parameters and maintains dimensional specifications within the defined tolerance range. Both parts are manufactured by TE Connectivity AMP Connectors and belong to the Plasti-Grip series.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity AMP Connectors 34161 is the direct substitute for the obsolete 8-32960-1. Selection of the 34161 is based on the following engineering criteria:

Product Status: The 34161 maintains active product status, ensuring continued availability and manufacturer support. The 8-32960-1 is classified as obsolete and should be replaced in new designs and procurement cycles.

Compliance and Certifications: Both parts maintain equivalent compliance profiles. The 8-32960-1 is RoHS Compliant, while the 34161 is ROHS3 Compliant, representing an advancement in regulatory compliance. Both parts carry identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications.

Functional Equivalence: The 34161 provides identical electrical and mechanical specifications across all critical parameters including terminal type, stud size, wire gauge, termination method, contact material and finish, and insulation composition.

Dimensional Compatibility: The 34161 maintains identical outer dimensions (thickness, width, and length) to the 8-32960-1. The insulation diameter specification for the 34161 (0.118" ~ 0.193") encompasses the range of the 8-32960-1 (0.105" ~ 0.145"), providing broader accommodation for wire insulation variations.

Moisture and Environmental Ratings: Both parts carry identical Moisture Sensitivity Level (MSL) ratings of 1 (Unlimited), indicating equivalent environmental performance characteristics.

Frequently Asked Questions (FAQ)

Q: Can the 34161 be used as a direct replacement for the 8-32960-1 in existing assemblies?

A: Yes. The 34161 is functionally and dimensionally equivalent to the 8-32960-1 across all critical parameters. Both parts feature identical terminal type, stud size, wire gauge, termination method, contact material and finish, and insulation composition. The 34161 maintains the same outer dimensions and is compatible with identical mounting configurations.

Q: What is the difference in insulation diameter specifications between these parts?

A: The 8-32960-1 specifies an insulation diameter of 0.105" ~ 0.145" (2.67mm ~ 3.68mm), while the 34161 specifies 0.118" ~ 0.193" (3.00mm ~ 4.90mm). The 34161 range is broader and encompasses the 8-32960-1 range, providing greater flexibility for wire insulation accommodation.

Q: Why is the 8-32960-1 classified as obsolete?

A: The 8-32960-1 has been discontinued by TE Connectivity AMP Connectors. The 34161 represents the active equivalent product and should be used for all new designs and procurement activities.

Q: Are there packaging differences between the 8-32960-1 and 34161?

A: The 8-32960-1 is supplied in standard packaging, while the 34161 is supplied in bulk packaging. Both parts are identical in form, fit, and function. Packaging selection should be based on procurement volume and inventory management requirements.

Q: Do both parts meet current regulatory compliance standards?

A: Yes. The 8-32960-1 is RoHS Compliant, and the 34161 is ROHS3 Compliant. Both parts carry identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications. The 34161 represents compliance with the more recent ROHS3 standard.

Q: Are the Moisture Sensitivity Level (MSL) ratings equivalent?

A: Yes. Both the 8-32960-1 and 34161 carry an MSL rating of 1 (Unlimited), indicating identical moisture sensitivity characteristics and environmental performance.

Q: What is the wire gauge compatibility for both parts?

A: Both the 8-32960-1 and 34161 are rated for 14-16 AWG wire gauge with crimp termination. Wire selection must fall within this specified range for proper terminal engagement and electrical performance.
