Crouzet 83261041 SPDT Snap Action Switch Equivalent & Substitute Parts

Part Overview

The Crouzet 83261041 is an active SPDT snap action switch designed for chassis mount applications with quick connect termination. This switch is specified for 16A at 250V AC operation with a round pin plunger actuator. The part is RoHS compliant and rated for 1,000,000 mechanical cycles. Equivalent substitute parts are necessary when the primary part is unavailable, when application requirements permit lower current or voltage ratings, or when alternative mechanical characteristics better suit specific operational needs.

Substiute Parts

83261041

CrouzetIn Stock: 97183261041 Datasheet

Current PartRFQ

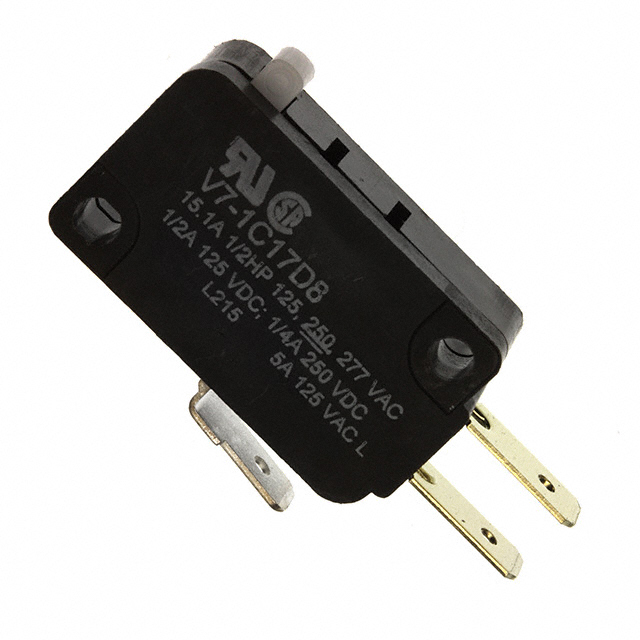

V7-1C17D8

Honeywell Sensing and Productivity SolutionsIn Stock: 3269V7-1C17D8 Datasheet

SimilarRFQ

V7-2B17E9

Honeywell Sensing and Productivity SolutionsIn Stock: 2890V7-2B17E9 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Crouzet 83261041 is determined by the following critical parameters:

Circuit Configuration: Both substitute parts maintain SPDT configuration, ensuring identical contact arrangement and switching logic.

Switch Function: All parts operate in On-Momentary mode, preserving functional behavior.

Actuator Type & Mounting: Round pin plunger actuator with chassis mount configuration is maintained across all substitutes, ensuring mechanical compatibility.

Termination Style: The Honeywell V7-1C17D8 uses identical 0.187" (4.7mm) quick connect termination. The Honeywell V7-2B17E9 uses 0.250" (6.3mm) quick connect termination, requiring verification of connector compatibility in the target application.

Electrical Ratings: Substitute parts operate at reduced current and voltage specifications (15A/125V AC and 11A/125V AC respectively) compared to the primary part (16A/250V AC). Substitution is valid only when application requirements do not exceed the substitute part's electrical ratings.

Compliance & Certifications: All parts are RoHS compliant, REACH unaffected, and classified as EAR99, maintaining regulatory equivalence.

Parameter Comparison

Engineering Selection Recommendations

Honeywell V7-1C17D8: This substitute is electrically and mechanically compatible when application requirements do not exceed 15A at 125V AC. The identical 0.187" (4.7mm) quick connect termination ensures direct connector compatibility. The operating temperature range of -40°C to 85°C is narrower than the primary part; applications requiring operation below -20°C or above 85°C are not suitable for this substitute. Both parts maintain active product status and full RoHS compliance.

Honeywell V7-2B17E9: This substitute is suitable for applications requiring 11A or less at 125V AC. The 0.250" (6.3mm) quick connect termination differs from the primary part and requires connector verification before implementation. The operating temperature range of -40°C to 85°C applies the same limitation as the V7-1C17D8. Both parts are active and RoHS compliant.

Selection between substitutes depends on application current requirements and connector compatibility. Neither substitute supports the full 250V AC rating of the primary part.

Frequently Asked Questions (FAQ)

Q: Can the Honeywell V7-1C17D8 directly replace the Crouzet 83261041 in all applications?

A: Direct replacement is valid only when the application operates at 15A or less and 125V or less. The identical quick connect termination (0.187" / 4.7mm) ensures mechanical compatibility. Applications requiring 250V AC operation cannot use this substitute.

Q: What is the primary difference between the two Honeywell substitutes?

A: The V7-1C17D8 is rated for 15A AC, while the V7-2B17E9 is rated for 11A AC. Additionally, the V7-2B17E9 uses 0.250" (6.3mm) quick connect termination instead of 0.187" (4.7mm), requiring connector compatibility verification.

Q: Does the Honeywell V7-2B17E9 require connector modification?

A: The V7-2B17E9 uses 0.250" (6.3mm) quick connect termination, which differs from the Crouzet 83261041 (0.187" / 4.7mm). Connector compatibility must be verified in the target application before implementation.

Q: Are there temperature limitations when using Honeywell substitutes?

A: Yes. Both Honeywell substitutes operate from -40°C to 85°C, which is narrower than the Crouzet 83261041 range of -20°C to 125°C. Applications requiring operation above 85°C or below -40°C cannot use these substitutes.

Q: Do all parts maintain the same mechanical life rating?

A: No. The Crouzet 83261041 is rated for 1,000,000 mechanical cycles, while both Honeywell substitutes are rated for 10,000,000 mechanical cycles, providing extended mechanical durability.

Q: Are all parts RoHS compliant?

A: Yes. The Crouzet 83261041 and both Honeywell substitutes are RoHS compliant and REACH unaffected, maintaining regulatory equivalence.
