TE Connectivity 832-0050 Accelerometer Equivalent & Substitute Parts

Part Overview

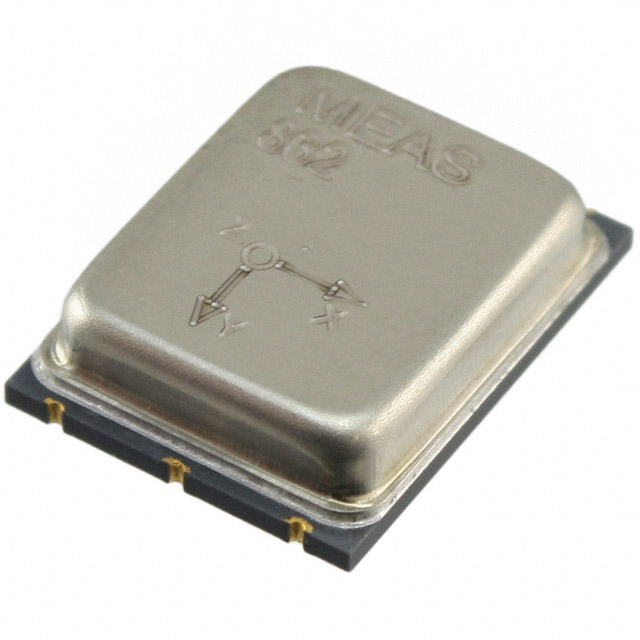

The TE Connectivity Measurement Specialties 832-0050 is a triaxial IEPE accelerometer designed for motion sensing applications requiring ±50g acceleration measurement across X, Y, and Z axes. This component operates at a 2kHz bandwidth with 25mV/g sensitivity and is supplied in a 5-SMD, No Lead surface mount package.

The 832-0050 carries an Obsolete product status. Identification of equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production requirements for applications currently utilizing this accelerometer.

Substiute Parts

832-0050

TE Connectivity Measurement SpecialtiesIn Stock: 884832-0050 Datasheet

Current PartRFQ

830M1-0050

TE Connectivity Measurement SpecialtiesIn Stock: 1074830M1-0050 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 832-0050 accelerometer is determined by the following critical parameters that must remain consistent across equivalent parts:

Core Functional Parameters:

• Acceleration range: ±50g
• Axis configuration: X, Y, Z triaxial measurement
• Sensitivity: 25 mV/g
• Supply voltage compatibility: 3.3V ~ 5.5V
• RoHS3 compliance status

Mechanical Compatibility Considerations:

• Surface mount mounting type
• Moisture sensitivity level: 1 (Unlimited)

The 830M1-0050 qualifies as a manufacturer-recommended substitute based on matching acceleration range, triaxial axis configuration, sensitivity specification, and supply voltage requirements. Both components maintain ROHS3 compliance and unlimited moisture sensitivity ratings. The substitute part transitions from an obsolete status to an active product status, ensuring continued availability and supply chain support.

Parameter Comparison

Engineering Selection Recommendations

The 830M1-0050 is the manufacturer-recommended substitute for the obsolete 832-0050 accelerometer. Both components are manufactured by TE Connectivity Measurement Specialties and maintain identical acceleration range (±50g), triaxial axis configuration, and sensitivity specifications (25 mV/g).

The substitute part offers extended operating temperature range (-40°C ~ 125°C versus -20°C ~ 80°C) and broader bandwidth capability (2Hz ~ 15kHz versus 2kHz), providing enhanced performance margins for demanding applications. Both parts maintain ROHS3 compliance and unlimited moisture sensitivity ratings, ensuring regulatory and environmental compatibility.

The transition from 5-SMD, No Lead packaging to 12-LCC packaging and from IEPE output to Analog Voltage output represents the primary design integration consideration. The active product status of the 830M1-0050 ensures long-term supply chain availability and manufacturing support compared to the obsolete 832-0050.

Frequently Asked Questions (FAQ)

Q: What are the core parameters that determine substitution compatibility for the 832-0050?

A: The critical parameters are acceleration range (±50g), triaxial axis configuration (X, Y, Z), sensitivity (25 mV/g), and supply voltage range (3.3V ~ 5.5V). Parts matching these specifications qualify as functional equivalents.

Q: How does the package change from 5-SMD, No Lead to 12-LCC affect circuit board design?

A: The package transition requires PCB layout modification. The 5-SMD, No Lead package differs in footprint, pin count, and physical dimensions from the 12-LCC package. Design verification and layout redesign are necessary for the substitute part integration.

Q: What is the difference between IEPE output and Analog Voltage output?

A: IEPE (Integrated Electronics Piezo-Electric) output provides constant current excitation with integrated signal conditioning. Analog Voltage output delivers direct voltage signals. Signal conditioning and interface circuitry requirements differ between these output types.

Q: Does the 830M1-0050 operate within the same temperature range as the 832-0050?

A: The 830M1-0050 operates across -40°C ~ 125°C, which encompasses the 832-0050 operating range of -20°C ~ 80°C. The substitute part provides extended temperature capability.

Q: Are both parts RoHS3 compliant?

A: Yes. Both the 832-0050 and 830M1-0050 maintain ROHS3 compliance status and unlimited moisture sensitivity levels (MSL 1).

Q: What is the bandwidth difference between these accelerometers?

A: The 832-0050 operates at 2kHz bandwidth. The 830M1-0050 provides 2Hz ~ 15kHz bandwidth, offering significantly broader frequency response capability for applications requiring extended measurement range.

Q: Is the 830M1-0050 currently available?

A: Yes. The 830M1-0050 carries an Active product status with documented inventory availability, unlike the obsolete 832-0050.
