TE Connectivity AMP Connectors 827572-1 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 827572-1 is a 7-position rectangular connector receptacle housing with 5.00mm pitch, designed for free-hanging in-line mounting applications. This component belongs to the Junior Timer series and is classified as Last Time Buy, indicating discontinued production with limited remaining inventory of 1008 pieces. The part requires separate contact procurement, as contacts are not included with the housing.

Identification of equivalent and substitute parts is necessary due to the Last Time Buy status of the 827572-1. Alternative components with identical electrical and mechanical specifications ensure design continuity and supply chain reliability for applications currently utilizing this connector housing.

Substiute Parts

827572-1

TE Connectivity AMP ConnectorsIn Stock: 1034827572-1 Datasheet

Current PartRFQ

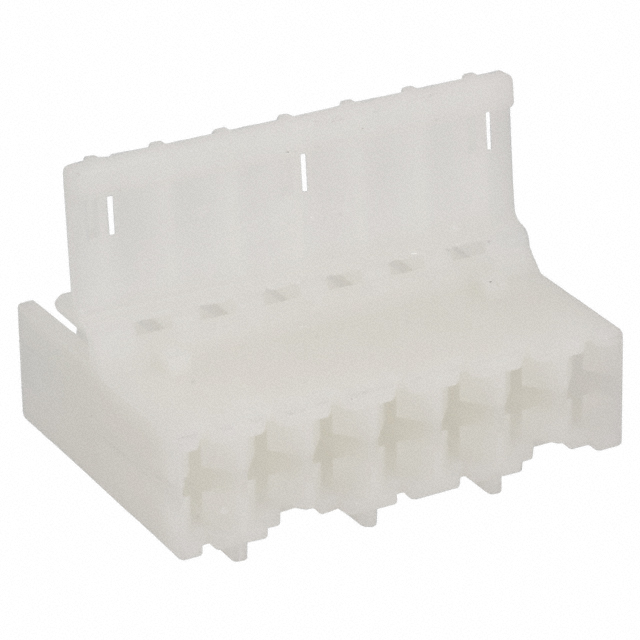

928343-7

TE Connectivity AMP ConnectorsIn Stock: 675928343-7 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for rectangular connector housings is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Connector Type: Receptacle
• Contact Type: Female Socket
• Number of Positions: 7
• Pitch: 0.197" (5.00mm)
• Number of Rows: 1
• Mounting Type: Free Hanging (In-Line)
• Contact Termination: Crimp
• Insulation Material: Polyamide (PA66), Nylon 6/6

The substitute part 928343-7 satisfies all mandatory matching parameters. Variations in color (Black versus Natural) and series designation (Junior Timer versus Standard Timer) do not affect electrical or mechanical compatibility, as these attributes do not impact connector interface geometry or functional performance. Both parts maintain identical pitch spacing, position count, and termination methodology required for direct substitution in circuit applications.

Parameter Comparison

Engineering Selection Recommendations

827572-1 Selection Criteria: The 827572-1 remains suitable for immediate procurement applications where existing inventory is available. However, the Last Time Buy status indicates this part will reach end-of-life. Current inventory of 1008 pieces supports near-term production requirements only.

928343-7 Selection Criteria: The 928343-7 is the recommended long-term alternative due to Active product status, ensuring sustained availability and supply chain continuity. This substitute maintains full electrical and mechanical compatibility with the 827572-1 across all critical interface parameters. The ROHS3 compliance status of 928343-7 provides enhanced regulatory alignment compared to the RoHS Compliant designation of 827572-1. Both parts carry identical Moisture Sensitivity Level (MSL) ratings and ECCN classifications, confirming equivalent handling and export compliance requirements.

The natural color of 928343-7 versus the black color of 827572-1 represents a non-functional variation that does not impact connector performance or interchangeability. Glass-filled versus non-glass-filled polyamide formulations in the insulation material do not affect the mechanical interface geometry or electrical characteristics relevant to housing function.

Frequently Asked Questions (FAQ)

Q: Can 928343-7 be used as a direct replacement for 827572-1 in existing designs?

A: Yes. The 928343-7 provides direct mechanical and electrical compatibility with 827572-1. Both housings feature identical 7-position, 5.00mm pitch receptacle configurations with single-row, free-hanging in-line mounting. Crimp contact termination methodology is identical across both parts.

Q: What is the significance of the color difference between the two parts?

A: Color variation (Black for 827572-1 versus Natural for 928343-7) is a cosmetic attribute that does not affect connector function, electrical performance, or mechanical interface compatibility. Color selection is typically driven by application aesthetics or internal documentation standards rather than technical requirements.

Q: How do the insulation material specifications differ?

A: The 827572-1 specifies glass-filled polyamide (PA66), while 928343-7 specifies standard polyamide (PA66). Both materials are Nylon 6/6 formulations. The glass-filled variant in 827572-1 provides enhanced mechanical rigidity, but this difference does not impact the connector housing interface geometry or electrical characteristics. Both materials satisfy identical operating temperature and moisture sensitivity requirements.

Q: Are there compliance differences between the two parts?

A: Both parts are RoHS compliant. The 827572-1 carries RoHS Compliant status, while 928343-7 carries ROHS3 Compliant status. ROHS3 represents an updated compliance designation reflecting current regulatory standards. Both parts maintain identical ECCN (EAR99) and HTSUS (8536.69.8000) classifications.

Q: Why is 928343-7 recommended over 827572-1 for new designs?

A: The 827572-1 is designated Last Time Buy, indicating production discontinuation with limited remaining inventory. The 928343-7 maintains Active product status, ensuring long-term availability and supply chain reliability. For applications requiring sustained component procurement beyond current inventory levels, 928343-7 provides design continuity.

Q: Do both parts require separate contact procurement?

A: Yes. Both 827572-1 and 928343-7 are connector housings supplied without contacts. Contact elements must be procured separately and installed via crimp termination methodology. Contact specifications must match the 7-position, 5.00mm pitch interface requirements of either housing.

Q: What is the Moisture Sensitivity Level (MSL) significance?

A: Both parts carry MSL rating of 1 (Unlimited), indicating no moisture sensitivity restrictions. These housings do not require special moisture control during storage, handling, or assembly processes. Standard warehouse storage conditions are appropriate for both components.
