TE Connectivity AMP Connectors 826652-2 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 826652-2 is a rectangular connector header classified as a right-angle, through-hole, 2-position breakaway connector with 0.100" (2.54mm) pitch. This connector is designed for board-to-board or cable applications with solder termination and push-pull fastening. The part is currently active in production with 968 pieces in stock.

Substitute parts are necessary when the primary part becomes unavailable, when alternative manufacturers are preferred for supply chain diversification, or when specific compliance certifications or packaging formats are required for particular applications.

Key Parameters

Parameter	Value
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	2
Number of Rows	1
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Shape	Square
Material Flammability Rating	UL94 V-0
Shrouding	Unshrouded
Style	Board to Board or Cable
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity 826652-2 is determined by strict alignment with the following core parameters:

Critical Matching Parameters:

Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 2
Number of Rows: 1
Connector Type: Header, Breakaway
Contact Type: Male Pin
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Push-Pull
Contact Shape: Square
Material Flammability Rating: UL94 V-0
Shrouding: Unshrouded
Style: Board to Board or Cable

All substitute parts listed below meet these critical parameters. Variations in contact length, insulation height, contact finish composition, insulation material, and operating temperature ranges are permitted within the scope of functional equivalency, provided the core mechanical and electrical interface characteristics remain unchanged.

Parameter Comparison

Parameter	TE Connectivity 826652-2	Molex 0901210122	Molex 0901210762	3M 929648-01-02-I	3M 929835-01-02-RK	Samtec HTSW-102-08-T-S-RA	Samtec TSW-102-09-G-S-RA
Manufacturer	TE Connectivity	Molex	Molex	3M	3M	Samtec Inc.	Samtec Inc.
Connector Type	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	2	2	2	2	2	2	2
Number of Rows	1	1	1	1	1	1	1
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Shape	Square	Square	Square	Square	Square	Square	Square
Shrouding	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded	Unshrouded
Style	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board	Board to Board	Board to Board or Cable	Board to Board or Cable
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Contact Length - Mating	0.228" (5.80mm)	0.266" (6.75mm)	0.266" (6.75mm)	0.235" (5.97mm)	0.235" (5.97mm)	0.230" (5.84mm)	0.230" (5.84mm)
Contact Length - Post	0.126" (3.20mm)	0.114" (2.90mm)	0.114" (2.90mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.090" (2.29mm)	0.290" (7.37mm)
Insulation Height	0.120" (3.05mm)	0.142" (3.60mm)	0.142" (3.60mm)	0.115" (2.92mm)	0.115" (2.92mm)	0.122" (3.10mm)	0.119" (3.02mm)
Contact Finish - Mating	Gold	Tin	Gold	Gold	Tin	Tin	Gold
Contact Material	Brass	Brass	Brass	Copper Alloy	Copper Alloy	Phosphor Bronze	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT)	Polyester, Glass Filled	Polyester, Glass Filled	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT)	Liquid Crystal Polymer (LCP)	Polybutylene Terephthalate (PBT)
Operating Temperature	-65°C ~ 105°C	Not Specified	Not Specified	-40°C ~ 105°C	-40°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 125°C
Current Rating (Amps)	5A	Not Specified	Not Specified	2.5A	2.5A	Varies by Wire Gauge	Not Specified
RoHS Status	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	Not Applicable	Not Applicable	Not Applicable
Packaging	Bulk	Tray	Bulk	Bulk	Bulk	Bulk	Bulk
Inventory Availability	968 Pcs	17424 Pcs	3786 Pcs	5997 Pcs	2349 Pcs	6069 Pcs	1029 Pcs

Engineering Selection Recommendations

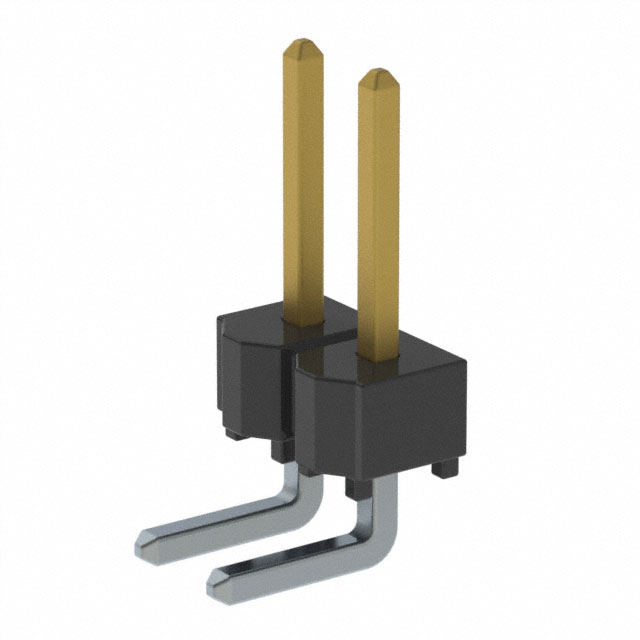

Primary Substitute - Samtec HTSW-102-08-T-S-RA: This part is listed as a direct substitute in the TE Connectivity 826652-2 documentation. It meets all critical parameters and is ROHS3 compliant with extended operating temperature range (-55°C ~ 105°C). Inventory availability is high at 6069 pieces.

Secondary Substitute - 3M 929835-01-02-RK: This part is also listed as a direct substitute in the TE Connectivity 826652-2 documentation. It is RoHS compliant and maintains the same operating temperature range (-40°C ~ 105°C). Current rating is 2.5A, which is lower than the primary part's 5A rating. Inventory availability is 2349 pieces.

Alternative - Molex 0901210762: This part meets all critical mechanical and electrical parameters with ROHS3 compliance. It features gold mating contact finish and is available in bulk packaging with 3786 pieces in stock. Operating temperature range is not specified.

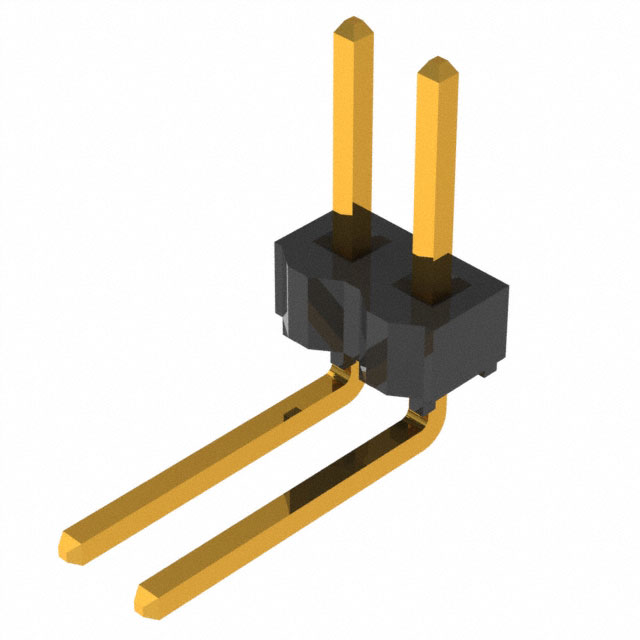

Alternative - Samtec TSW-102-09-G-S-RA: This part meets all critical parameters with ROHS3 compliance and extended operating temperature range (-55°C ~ 125°C). The contact post length is significantly longer (0.290" vs. 0.126"), which may affect board layout compatibility. Inventory availability is 1029 pieces.

Not Recommended - 3M 929835-01-02: This part is RoHS non-compliant and REACH affected, making it unsuitable for applications requiring regulatory compliance.

Frequently Asked Questions (FAQ)

Q: Can I substitute the TE Connectivity 826652-2 with any of the listed alternatives?

A: All listed substitute parts meet the critical mechanical and electrical interface parameters. However, verify that contact length, insulation height, and operating temperature specifications are compatible with your specific application requirements before substitution.

Q: What is the difference between the Samtec HTSW-102-08-T-S-RA and TSW-102-09-G-S-RA?

A: Both parts meet core substitution criteria. The primary difference is contact post length: HTSW-102-08-T-S-RA has 0.090" (2.29mm) post length, while TSW-102-09-G-S-RA has 0.290" (7.37mm) post length. The TSW variant also supports a higher operating temperature range (-55°C ~ 125°C vs. -55°C ~ 105°C). Select based on your PCB thickness and thermal requirements.

Q: Are there compliance differences between the substitute parts?

A: Yes. The TE Connectivity 826652-2 and most substitutes are RoHS compliant. Samtec parts are ROHS3 compliant. The 3M 929835-01-02 is RoHS non-compliant and should not be used in applications requiring RoHS compliance. Verify your application's compliance requirements before selection.

Q: What is the significance of contact finish differences (Gold vs. Tin)?

A: Contact finish affects corrosion resistance and mating force characteristics. Gold-plated contacts (TE Connectivity 826652-2, Molex 0901210762, 3M 929648-01-02-I, Samtec TSW-102-09-G-S-RA) provide superior corrosion resistance. Tin-plated contacts (Molex 0901210122, 3M 929835-01-02-RK, Samtec HTSW-102-08-T-S-RA) are cost-effective for general-purpose applications. Both finishes are acceptable for standard board-to-board connections.

Q: Does packaging format affect substitution eligibility?

A: Packaging format (Bulk vs. Tray) does not affect electrical or mechanical compatibility. Selection depends on your procurement and assembly process requirements. The TE Connectivity 826652-2 is supplied in Bulk packaging. Molex 0901210122 is supplied in Tray packaging; all other substitutes are supplied in Bulk.

Q: What is the current rating significance for this connector?

A: The TE Connectivity 826652-2 is rated for 5A. The 3M 929648-01-02-I and 3M 929835-01-02-RK are rated for 2.5A. Samtec HTSW and TSW series current ratings vary by wire gauge. For applications requiring 5A continuous current, verify that the substitute part's current rating meets your design requirements.

Q: Can I use these connectors in automotive applications?

A: The Molex C-Grid III series (0901210122 and 0901210762) are specifically listed for automotive and general-purpose applications. Other substitutes are listed for general-purpose applications. Verify automotive qualification requirements with your application specifications before selection.
