TE Connectivity 826469-6 Equivalent & Substitute Parts

Part Overview

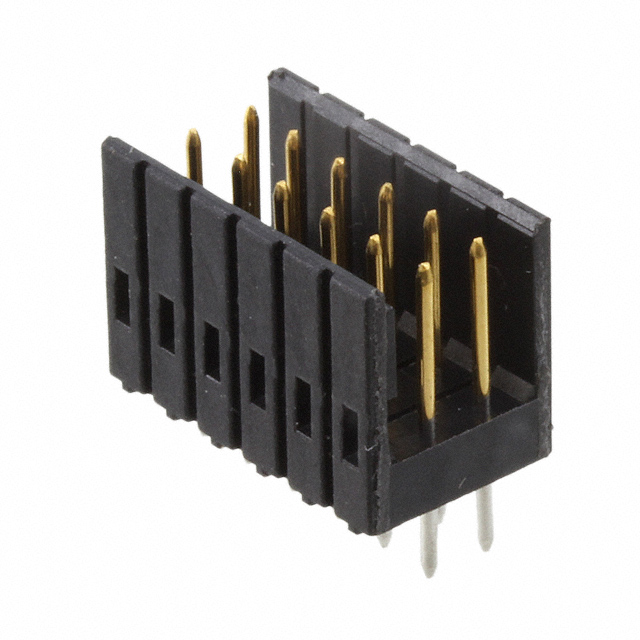

The TE Connectivity 826469-6 is a vertical rectangular connector header designed for through-hole mounting applications. This connector features 12 positions arranged in 2 rows with 0.100" (2.54mm) pitch spacing, utilizing shrouded 2-wall construction with solder termination. The part is classified as an active product with full inventory availability of 813 pieces in stock. Equivalent and substitute parts are identified to provide design flexibility, accommodate supply chain variations, and support alternative sourcing strategies for board-to-board and board-to-cable interconnect applications.

Substiute Parts

826469-6

TE Connectivity AMP ConnectorsIn Stock: 827826469-6 Datasheet

Current PartRFQ

69168-112

Amphenol ICC (FCI)In Stock: 167269168-112 Datasheet

SimilarRFQ

69168-112HLF

Amphenol ICC (FCI)In Stock: 182969168-112HLF Datasheet

SimilarRFQ

69168-212HLF

Amphenol ICC (FCI)In Stock: 129969168-212HLF Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity 826469-6 is determined by strict alignment of the following critical parameters:

Mandatory Matching Parameters:

• Connector Type: Header
• Contact Type: Male Pin
• Number of Positions: 12
• Number of Rows: 2
• Pitch - Mating: 0.100" (2.54mm)
• Row Spacing - Mating: 0.100" (2.54mm)
• Shrouding: Shrouded - 2 Wall
• Mounting Type: Through Hole
• Termination: Solder
• Contact Shape: Square
• Contact Material: Phosphor Bronze
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Moisture Sensitivity Level (MSL): 1 (Unlimited)

All three substitute parts—Amphenol ICC (FCI) 69168-112, 69168-112HLF, and 69168-212HLF—satisfy these mandatory parameters. Variations exist in fastening type (Friction Lock versus Latch Holder), contact finish specifications, and regulatory compliance status, which are documented in the parameter comparison table below.

Parameter Comparison

Engineering Selection Recommendations

TE Connectivity 826469-6 (Primary Part)

The TE Connectivity 826469-6 is the specified component with ROHS3 compliance and active product status. This part is suitable for applications requiring the highest level of regulatory compliance and established supply chain integration.

Amphenol ICC 69168-112HLF (Preferred Substitute)

The 69168-112HLF is the recommended substitute for the TE Connectivity 826469-6. This part maintains RoHS compliance, active product status, and identical mechanical and electrical parameters. The 69168-112HLF is suitable for direct replacement in applications where regulatory compliance and product continuity are required.

Amphenol ICC 69168-212HLF (Alternative Substitute)

The 69168-212HLF is an alternative substitute with RoHS compliance and active product status. This part differs from the primary part in contact finish thickness on the mating surface (15.0µin versus 3.90µin on the original). This part is suitable for applications where contact finish thickness variation is acceptable within design specifications.

Amphenol ICC 69168-112 (Limited Substitution)

The 69168-112 is not recommended as a substitute due to RoHS non-compliance status. This part does not meet the regulatory requirements of the primary TE Connectivity 826469-6 and should not be selected for new designs or applications requiring RoHS certification.

Frequently Asked Questions (FAQ)

Q: Can the Amphenol ICC 69168-112HLF be used as a direct replacement for the TE Connectivity 826469-6?

A: Yes. The 69168-112HLF meets all mandatory electrical and mechanical parameters, including connector type, contact configuration, pitch spacing, shrouding, mounting type, and termination method. Both parts are RoHS compliant and have identical MSL ratings. The primary difference is the fastening mechanism (Friction Lock versus Latch Holder), which does not affect electrical or mechanical compatibility in standard through-hole applications.

Q: What is the difference between the 69168-112HLF and 69168-212HLF?

A: Both parts are functionally equivalent with identical mechanical dimensions and electrical characteristics. The primary difference is the contact finish thickness on the mating surface: the 69168-112HLF has 30.0µin (0.76µm) gold plating, while the 69168-212HLF has 15.0µin (0.38µm) gold plating. Selection between these parts depends on application requirements for contact durability and wear resistance.

Q: Why is the Amphenol ICC 69168-112 not recommended?

A: The 69168-112 is RoHS non-compliant, which does not align with the ROHS3 compliance status of the primary TE Connectivity 826469-6. For applications requiring RoHS certification or regulatory compliance, the 69168-112 is not suitable. The 69168-112HLF or 69168-212HLF should be selected instead.

Q: Are there differences in insulation height between the main part and substitutes?

A: Yes. The TE Connectivity 826469-6 has an insulation height of 0.394" (10.00mm), while all Amphenol ICC substitutes have an insulation height of 0.386" (9.80mm). This 0.008" (0.20mm) difference is within typical manufacturing tolerances and does not affect mechanical compatibility in standard PCB applications.

Q: What is the difference in contact post length between the main part and substitutes?

A: The TE Connectivity 826469-6 has a contact post length of 0.126" (3.20mm), while all Amphenol ICC substitutes have a contact post length of 0.120" (3.05mm). This 0.006" (0.15mm) difference is within standard manufacturing tolerances and does not affect solder joint quality or electrical performance in through-hole applications.

Q: Are all substitute parts available in the same packaging format?

A: Yes. The TE Connectivity 826469-6 and all three Amphenol ICC substitute parts are supplied in bulk packaging. Inventory availability varies: 826469-6 (813 pcs), 69168-112 (1576 pcs), 69168-112HLF (1736 pcs), and 69168-212HLF (1200 pcs).

Q: What is the significance of the REACH Affected status on substitute parts?

A: The Amphenol ICC substitute parts are marked as REACH Affected, indicating they are subject to REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) regulations. The TE Connectivity 826469-6 has Vendor Undefined REACH status. For applications in regulated markets, REACH compliance documentation should be obtained from the respective manufacturers.

Q: Can the fastening type difference (Latch Holder versus Friction Lock) affect mating performance?

A: The fastening type difference does not affect electrical performance or mating compatibility. Both mechanisms provide secure connector retention. The choice between Latch Holder and Friction Lock depends on application-specific requirements for connector release force and handling procedures. Mechanical compatibility with mating connectors should be verified based on the specific mating connector design.
