TE Connectivity 822030-3 SIMM Memory Connector Equivalent & Substitute Parts

Part Overview

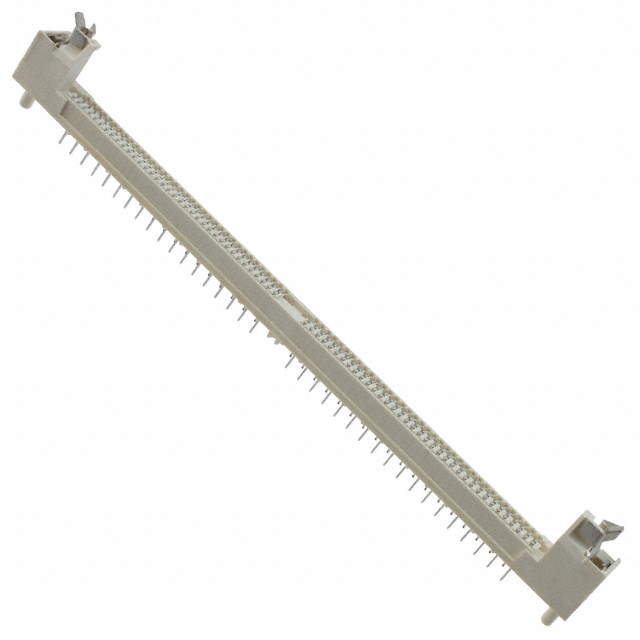

The TE Connectivity 822030-3 is a 72-position SIMM RAM socket connector designed for through-hole PCB mounting. This connector features board guides and latches, conforming to MO-116 standards and accommodating card thicknesses between 0.047" and 0.054" (1.19mm to 1.37mm). The 822030-3 is classified as obsolete, making identification of equivalent substitute parts essential for legacy system maintenance, repair, and component sourcing in applications requiring SIMM memory socket functionality.

Substiute Parts

822030-3

TE Connectivity AMP ConnectorsIn Stock: 1154822030-3 Datasheet

Current PartRFQ

5822030-3

TE Connectivity AMP ConnectorsIn Stock: 12825822030-3 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete 822030-3 is determined by strict equivalence across the following critical parameters:

Electrical and Functional Equivalence:

• Connector style (SIMM)
• Number of positions (72)
• Memory type (RAM)
• Standards compliance (MO-116)
• Contact finish thickness (200.0µin / 5.08µm)

Mechanical Equivalence:

• Mounting type (Through Hole)
• Card thickness accommodation (0.047" ~ 0.054")
• Features (Board Guide, Latches)
• Mounting feature (Normal, Standard - Top)
• Series designation (Micro-Edge)

The substitute part 5822030-3 maintains full equivalence across all critical parameters while offering improved product status and regulatory compliance. Differences in contact finish material (Tin-Lead versus Tin) and packaging format do not affect functional compatibility within the specified electrical and mechanical constraints.

Parameter Comparison

Engineering Selection Recommendations

The 5822030-3 serves as the direct active substitute for the obsolete 822030-3. Selection of the 5822030-3 is supported by the following engineering considerations:

Product Status: The 5822030-3 maintains active product status with current manufacturing availability, whereas the 822030-3 is obsolete and subject to inventory depletion.

Regulatory Compliance: The 5822030-3 achieves ROHS3 compliance and REACH unaffected status, addressing modern regulatory requirements for electronic component procurement. The 822030-3 remains RoHS non-compliant and REACH affected, presenting compliance constraints for new designs and regulated applications.

Functional Equivalence: Both connectors maintain identical electrical and mechanical specifications across all critical parameters including connector style, position count, mounting configuration, and card thickness accommodation.

Contact Finish Consideration: The 5822030-3 utilizes Tin contact finish in place of the Tin-Lead finish of the 822030-3. Both finishes maintain the specified contact finish thickness of 200.0µin (5.08µm) and are compatible with standard PCB assembly processes and soldering operations.

Frequently Asked Questions (FAQ)

Q: Can the 5822030-3 directly replace the 822030-3 in existing PCB designs?

A: Yes. The 5822030-3 maintains full mechanical and electrical equivalence with the 822030-3 across all critical parameters including connector style, position count, mounting type, card thickness accommodation, and feature set. Direct substitution is supported without PCB redesign.

Q: What is the significance of the contact finish difference between Tin-Lead and Tin?

A: Both contact finishes maintain the specified thickness of 200.0µin (5.08µm) and are compatible with standard PCB assembly and soldering processes. The Tin finish of the 5822030-3 aligns with modern RoHS3 compliance requirements, whereas the Tin-Lead finish of the 822030-3 reflects legacy manufacturing standards.

Q: Why is the 822030-3 listed as obsolete?

A: The 822030-3 is classified as obsolete due to its RoHS non-compliant status and REACH affected designation. The 5822030-3 represents the current active equivalent, offering improved regulatory compliance and manufacturing availability.

Q: Does packaging format affect connector functionality?

A: No. The packaging format difference (unspecified for 822030-3 versus Tube for 5822030-3) does not affect electrical or mechanical performance. Packaging selection is determined by procurement and inventory management requirements rather than functional compatibility.

Q: Are both connectors suitable for SIMM RAM socket applications?

A: Yes. Both the 822030-3 and 5822030-3 are designed for 72-position SIMM RAM socket applications with identical accommodation for card thicknesses between 0.047" and 0.054" (1.19mm to 1.37mm) and full compliance with MO-116 standards.

Q: What inventory considerations apply to these parts?

A: The 822030-3 has 1125 pieces available as new original stock but is obsolete with no ongoing production. The 5822030-3 has 1224 pieces available with active product status and current manufacturing support, ensuring long-term availability for ongoing applications.
