3M 8209-7003 D-Sub Connector: Equivalent & Substitute Parts

Part Overview

The 3M 8209-7003 is a 9-position D-Sub plug connector with male pins, designed for panel mount applications using IDC (insulation displacement contact) termination with ribbon cable. This connector features a steel tin-plated shell with gold-plated contacts and operates across the temperature range of -55°C to 105°C.

The 8209-7003 is classified as obsolete. Identifying equivalent and substitute parts is necessary to maintain design compatibility, ensure supply chain continuity, and support legacy system maintenance where this connector type remains in use.

Key Parameters

Parameter	Value
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Number of Positions	9
Number of Rows	2
Shell Size, Connector Layout	1 (DE, E)
Mounting Type	Panel Mount
Termination	IDC, Ribbon Cable
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Current Rating (Amps)	1A
Operating Temperature	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution eligibility for the 3M 8209-7003 is determined by strict alignment with the following core parameters:

Connector style: D-Sub
Connector type: Plug, Male Pins
Number of positions: 9
Number of rows: 2
Shell size and layout: 1 (DE, E)
Termination method: IDC, Ribbon Cable
Material flammability rating: UL94 V-0
Moisture sensitivity level: 1 (Unlimited)

Substitute parts must maintain compatibility across these parameters. Variations in mounting type (panel mount versus free hanging), shell material finish, contact finish specifications, current rating, and operating temperature range are noted but do not disqualify substitution when the core parameters align. Compliance certifications (RoHS, ROHS3) and product status (active versus obsolete) are documented for engineering selection purposes.

Parameter Comparison

Manufacturer Part Number	Manufacturer	Connector Type	Positions	Mounting Type	Termination	Shell Material, Finish	Contact Finish	Current Rating (Amps)	Operating Temperature	Product Status	RoHS Status
8209-7003	3M	Plug, Male Pins	9 (2 rows)	Panel Mount	IDC, Ribbon Cable	Steel, Tin Plated	Gold	1A	-55°C ~ 105°C	Obsolete	RoHS Compliant
09661286700	HARTING	Plug, Male Pins	9 (2 rows)	Panel Mount	IDC, Ribbon Cable	Steel	Not specified	2A	Not specified	Active	ROHS3 Compliant
09661287700	HARTING	Plug, Male Pins	9 (2 rows)	Panel Mount	IDC, Ribbon Cable	Steel	Not specified	2A	Not specified	Active	ROHS3 Compliant
1658608-4	TE Connectivity AMP Connectors	Plug, Male Pins	9 (2 rows)	Free Hanging (In-Line)	IDC, Ribbon Cable	Steel, Tin Plated	Gold	1.25A	-55°C ~ 105°C	Active	RoHS Compliant
1658613-4	TE Connectivity AMP Connectors	Plug, Male Pins	9 (2 rows)	Free Hanging (In-Line)	IDC, Ribbon Cable	Steel, Tin Plated	Gold	1.25A	-55°C ~ 105°C	Active	ROHS3 Compliant

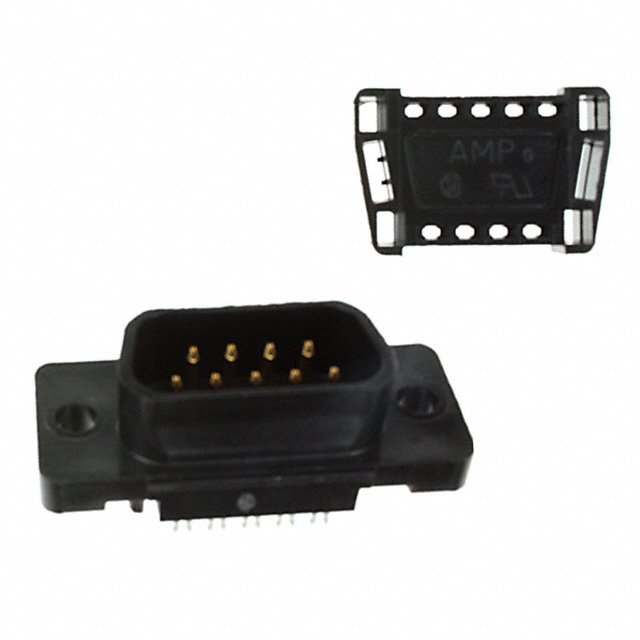

1658615-4	TE Connectivity AMP Connectors	Plug, Male Pins	9 (2 rows)	Free Hanging (In-Line)	IDC, Ribbon Cable	Not specified	Gold	1.25A	-55°C ~ 105°C	Active	ROHS3 Compliant
5746862-4	TE Connectivity AMP Connectors	Plug, Male Pins	9 (2 rows)	Free Hanging (In-Line)	IDC, Ribbon Cable	Steel, Tin Plated	Gold	1.25A	-55°C ~ 105°C	Active	RoHS Compliant
G17K09103101EU	Amphenol ICC (Commercial Products)	Plug, Male Pins	9 (2 rows)	Free Hanging (In-Line)	IDC, Ribbon Cable	Steel	Gold	Not specified	Not specified	Active	RoHS Compliant

Engineering Selection Recommendations

For applications requiring the 3M 8209-7003 panel mount configuration, direct substitution is limited. The HARTING parts 09661286700 and 09661287700 maintain panel mount mounting type and IDC ribbon cable termination, offering active product status with ROHS3 compliance. These parts provide higher current rating (2A) and represent the closest functional equivalents for panel mount applications.

For applications where mounting type flexibility exists, the TE Connectivity AMPLIMITE HDF-20 series (1658608-4, 1658613-4, 1658615-4, 5746862-4) provides active alternatives with maintained operating temperature range (-55°C to 105°C), gold contact finish, and current ratings of 1.25A. These parts feature free hanging (in-line) mounting and are available with RoHS or ROHS3 compliance.

The Amphenol ICC G17K09103101EU offers an active alternative with gold contact finish and free hanging mounting, though operating temperature and current rating specifications are not provided in available documentation.

Selection should prioritize active product status for new designs and long-term supply assurance. For legacy system maintenance where the original panel mount configuration is required, HARTING alternatives are recommended. For applications permitting in-line mounting, TE Connectivity options provide established supply availability and compliance certifications.

Frequently Asked Questions (FAQ)

Q: Can I use a free hanging (in-line) connector to replace the panel mount 8209-7003?

A: Free hanging connectors differ in mounting configuration and may not fit existing panel cutouts or mounting hardware designed for panel mount connectors. Mechanical integration must be evaluated before substitution. If your application permits in-line mounting, TE Connectivity and Amphenol ICC alternatives are electrically compatible.

Q: What is the difference between RoHS and ROHS3 compliance?

A: Both certifications restrict hazardous substances in electrical and electronic equipment. ROHS3 represents the current regulatory standard. Parts marked RoHS Compliant or ROHS3 Compliant both meet environmental compliance requirements; ROHS3 indicates compliance with the most recent directive version.

Q: The substitute part has a higher current rating (2A vs. 1A). Can I use it?

A: A higher current rating indicates the substitute can safely handle greater current without degradation. This does not create compatibility issues; the substitute remains suitable for applications designed for 1A operation. Verify that shell material and contact finish specifications meet your application requirements.

Q: Are HARTING 09661286700 and 09661287700 interchangeable?

A: Both parts share identical electrical and mechanical specifications: 9-position D-Sub plug, panel mount, IDC ribbon cable termination, 2A current rating, and ROHS3 compliance. They are functionally equivalent for substitution purposes.

Q: What does IDC termination mean?

A: IDC (insulation displacement contact) termination allows ribbon cable to be inserted directly into the connector without stripping insulation. The connector pierces the cable insulation and makes electrical contact with the conductor inside. This method is standard for D-Sub connectors used with ribbon cables.

Q: The 8209-7003 is obsolete. Which substitute should I choose for a new design?

A: For new designs, select from active product status alternatives. If panel mount is required, HARTING 09661286700 or 09661287700 are recommended. If mounting flexibility exists, TE Connectivity AMPLIMITE HDF-20 series parts (1658608-4, 1658613-4, 1658615-4, 5746862-4) offer established supply chains and compliance certifications.

Q: Do all substitutes maintain the -55°C to 105°C operating temperature range?

A: TE Connectivity parts (1658608-4, 1658613-4, 1658615-4, 5746862-4) maintain this temperature range. HARTING and Amphenol ICC parts do not specify operating temperature in available documentation. Verify temperature specifications with manufacturer datasheets if your application requires this range.
