Bourns 8113 Common Mode Choke - Equivalent & Substitute Parts

Part Overview

The Bourns 8113 is a 5 mH, 2-line common mode choke designed for through-hole mounting applications requiring 8.9A current capacity and 22mOhm maximum DC resistance. The main part number 8113 is classified as obsolete, making substitute parts necessary for new designs and ongoing production requirements. Alternative part numbers and cross-manufacturer equivalents are available to maintain design continuity and ensure component availability.

Substiute Parts

8113

Bourns Inc.In Stock: 8128113 Datasheet

Current PartRFQ

8113-RC

Bourns Inc.In Stock: 21128113-RC Datasheet

DirectRFQ

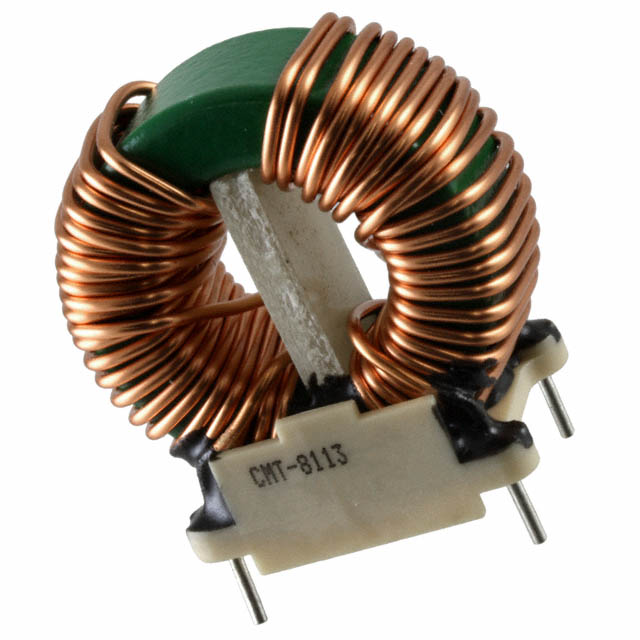

CMT-8113

Triad MagneticsIn Stock: 973CMT-8113 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Bourns 8113 are classified based on strict electrical and mechanical parameter matching:

Direct Manufacturer Substitute (Same Manufacturer): The 8113-RC maintains identical electrical specifications: 5 mH inductance at 1 kHz, 8.9A current rating, and 22mOhm DCR. Physical dimensions, mounting type, and pin configuration are unchanged. The primary distinction is product status (active vs. obsolete) and packaging format (bulk vs. standard).

Cross-Manufacturer Equivalent (Different Manufacturer): The Triad Magnetics CMT-8113 matches all critical electrical parameters: 5 mH @ 1 kHz inductance, 8.9A current capacity, and 22mOhm DCR. Physical footprint, mounting configuration, and pin layout are identical. This part includes additional AC voltage rating (1500V) and expanded approval certifications (CSA, IEC, UL, VDE) not specified for the original part.

Substitution Criteria:

• Inductance value: 5 mH @ 1 kHz (mandatory match)
• Current rating: 8.9A minimum (mandatory match)
• DC resistance: 22mOhm maximum (mandatory match)
• Number of lines: 2 (mandatory match)
• Mounting type: Through Hole (mandatory match)
• Physical dimensions: 1.450" L x 0.800" W, 1.500" height maximum (mandatory match)
• Package configuration: Vertical, 4 PC Pin (mandatory match)
• Operating temperature range: -55°C ~ 105°C (mandatory match)

Parameter Comparison

Engineering Selection Recommendations

For RoHS3 Compliance Requirements: The Bourns 8113-RC is the direct substitute, maintaining identical electrical and mechanical specifications while achieving ROHS3 compliance. This part is recommended for new designs and production transitions from the obsolete 8113.

For Applications Requiring Extended Certifications: The Triad Magnetics CMT-8113 provides additional approval certifications (CSA, IEC, UL, VDE) and specified AC voltage rating (1500V), making it suitable for applications with enhanced regulatory or safety requirements. All electrical and mechanical parameters remain equivalent to the original specification.

For Existing Inventory Management: The Bourns 8113-RC offers the highest inventory availability (2066 pcs) among active alternatives, supporting sustained production schedules. The Triad Magnetics CMT-8113 provides secondary sourcing with 914 pcs in stock.

Frequently Asked Questions (FAQ)

Q: Can the Bourns 8113-RC be used as a direct replacement for the obsolete Bourns 8113? A: Yes. The 8113-RC maintains identical inductance (5 mH @ 1 kHz), current rating (8.9A), DC resistance (22mOhm), physical dimensions, and pin configuration. The primary difference is product status (active vs. obsolete) and RoHS compliance level.

Q: What are the key electrical parameters that determine substitutability for this common mode choke? A: Inductance value (5 mH @ 1 kHz), current rating (8.9A minimum), DC resistance (22mOhm maximum), and number of lines (2) are the critical electrical parameters. All substitute parts match these specifications exactly.

Q: Are the physical dimensions identical across all three part numbers? A: Yes. All three parts share identical dimensions: 1.450" L x 0.800" W (36.83mm x 20.32mm) with maximum height of 1.500" (38.10mm), and use the same vertical 4-pin through-hole package configuration.

Q: What is the difference between the Bourns 8113-RC and the Triad Magnetics CMT-8113? A: Both parts match all core electrical and mechanical specifications. The CMT-8113 includes specified AC voltage rating (1500V) and expanded approval certifications (CSA, IEC, UL, VDE). Selection depends on specific regulatory or safety requirements for the application.

Q: Is the operating temperature range the same for all substitute parts? A: Yes. All three parts operate across the identical temperature range of -55°C to 105°C.

Q: Which substitute part should be selected for new product designs? A: The Bourns 8113-RC is the recommended choice for new designs, as it is the direct manufacturer substitute with active product status and ROHS3 compliance. The Triad Magnetics CMT-8113 is suitable when additional certifications or AC voltage rating specifications are required.
