810PE205G F Type Coaxial Connector Plug Equivalent & Substitute Parts

Part Overview

The 810PE205G is an F Type connector plug manufactured by Winchester Interconnect, designed for coaxial cable termination in RF applications. This male pin connector features push-on contact termination and crimp shield termination, optimized for RG-59 cable group applications. The connector operates at frequencies up to 500 MHz with a non-constant impedance characteristic and is rated for 500 V operation across a temperature range of -40°C to 65°C.

The product maintains Active status and is RoHS Compliant with MSL Level 1 (Unlimited moisture sensitivity). Identifying equivalent substitute parts is necessary to ensure supply chain flexibility, manage inventory alternatives, and maintain design compatibility across manufacturing batches and procurement cycles.

Substiute Parts

810PE205G

Winchester InterconnectIn Stock: 861810PE205G Datasheet

Current PartRFQ

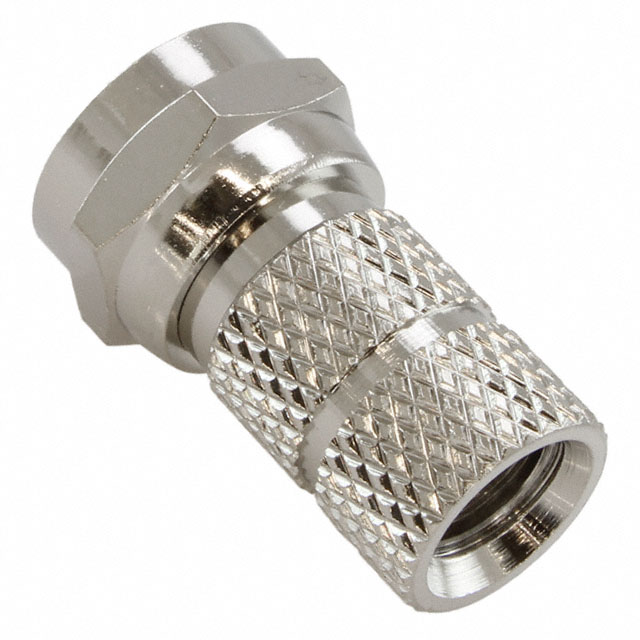

TOF59

Cinch Connectivity SolutionsIn Stock: 775TOF59 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 810PE205G are identified based on strict electrical and mechanical compatibility criteria. The following parameters define the substitution scope:

Primary Compatibility Criteria:

• Connector Style: F Type (required match)
• Connector Type: Plug, Male Pin (required match)
• Mounting Type: Free Hanging (In-Line) (required match)
• Cable Group: RG-59 (required match)
• Number of Ports: 1 (required match)
• Body Material: Brass (required match)
• Impedance: Non-Constant (required match)

Secondary Compatibility Parameters:

• Contact Termination: Push On (primary specification)
• Shield Termination: Crimp or equivalent mechanical fastening
• Frequency capability: Minimum 500 MHz
• Voltage Rating: Minimum 500 V
• Operating Temperature: Must encompass -40°C to 65°C range
• RoHS Compliance: Required
• MSL Rating: Level 1 or equivalent

The TOF59 connector from Cinch Connectivity Solutions meets the primary compatibility criteria as an F Type male plug connector for RG-59 cable in free-hanging configuration. Both parts share identical connector style, type, mounting approach, and cable group specifications.

Parameter Comparison

Engineering Selection Recommendations

810PE205G (Winchester Interconnect) is the primary specification part. Selection criteria:

• Use 810PE205G when voltage rating of 500 V is required
• Use 810PE205G when mating cycle durability of 500 cycles is specified
• Use 810PE205G when snap-on fastening mechanism is required
• Use 810PE205G when crimp shield termination is the assembly standard

TOF59 (Cinch Connectivity Solutions) serves as an equivalent substitute under these conditions:

• TOF59 is suitable when application voltage does not exceed 250 V
• TOF59 is suitable when mating cycle requirement is 200 cycles or fewer
• TOF59 is suitable when twist-on shield termination is acceptable
• TOF59 is suitable when threaded fastening mechanism is compatible with assembly process
• TOF59 provides extended frequency capability (2 GHz vs. 500 MHz)
• TOF59 provides extended operating temperature range (-55°C to 85°C vs. -40°C to 65°C)

Both parts maintain Active product status and RoHS Compliance. Both are MSL Level 1 rated. Substitution is valid only when the application requirements align with the lower voltage and mating cycle specifications of the TOF59, and when the different shield termination and fastening methods are compatible with the assembly process.

Frequently Asked Questions (FAQ)

Q: Can TOF59 replace 810PE205G in all applications?

A: No. TOF59 is a substitute only when application voltage requirements do not exceed 250 V and mating cycle requirements do not exceed 200 cycles. The 810PE205G is rated for 500 V and 500 mating cycles. Verify your application specifications before substitution.

Q: What is the difference in shield termination between these connectors?

A: The 810PE205G uses crimp shield termination with snap-on fastening. The TOF59 uses twist-on shield termination with threaded fastening. These are different assembly methods and may require different tooling or assembly procedures.

Q: Are both connectors RoHS Compliant?

A: Yes. Both 810PE205G and TOF59 are RoHS Compliant with MSL Level 1 (Unlimited) moisture sensitivity rating.

Q: Which connector supports higher frequency operation?

A: The TOF59 supports frequencies up to 2 GHz, while the 810PE205G is rated to 500 MHz. Both are non-constant impedance F Type connectors for RG-59 cable.

Q: Can I use TOF59 in a high-voltage application rated for 500 V?

A: No. The TOF59 is rated for 250 V maximum. The 810PE205G must be used for applications requiring 500 V operation.

Q: Are both connectors suitable for the same cable type?

A: Yes. Both connectors are designed for RG-59 cable group in free-hanging (in-line) configuration with male pin plug termination.

Q: What is the difference in operating temperature range?

A: The 810PE205G operates from -40°C to 65°C. The TOF59 operates from -55°C to 85°C, providing a wider temperature range. Both ranges are suitable for standard commercial and industrial applications within their respective limits.

Q: How many mating cycles are each connector rated for?

A: The 810PE205G is rated for 500 mating cycles. The TOF59 is rated for 200 mating cycles. Select based on your application's connection/disconnection frequency requirements.
