810PE205A Equivalent & Substitute Parts

Part Overview

The 810PE205A is an F Type Connector Plug manufactured by Winchester Interconnect, designed for coaxial RF applications. This male pin connector features push-on contact termination and crimp shield termination, suitable for RG-6 cable applications. The connector operates at frequencies up to 500 MHz with a non-constant impedance characteristic and is rated for 500 V with an operating temperature range of -40°C to 65°C. The product is currently active and RoHS compliant. Substitute parts are identified to provide alternative sourcing options when the primary part is unavailable or when specific application requirements necessitate alternative electrical or mechanical characteristics.

Key Parameters

Parameter	Value
Manufacturer Part Number	810PE205A
Manufacturer	Winchester Interconnect
Category	Coaxial Connectors (RF)
Connector Style	F Type
Connector Type	Plug, Male Pin
Contact Termination	Push On
Shield Termination	Crimp
Cable Group	RG-6
Impedance	Non-Constant
Mounting Type	Free Hanging (In-Line)
Frequency - Max	500 MHz
Operating Temperature	-40°C ~ 65°C
Voltage Rating	500 V
Product Status	Active
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitute parts for the 810PE205A are identified based on functional equivalence within the F Type Connector Plug category. The primary substitution criteria include:

Core Functional Parameters:

Connector Style: F Type
Connector Type: Plug, Male Pin
Contact Termination: Push On
Mounting Type: Free Hanging (In-Line)
Impedance: Non-Constant
Cable Group Compatibility: RG-6

Compliance Parameters:

RoHS Compliant status
Active product status
ECCN and HTSUS classification alignment

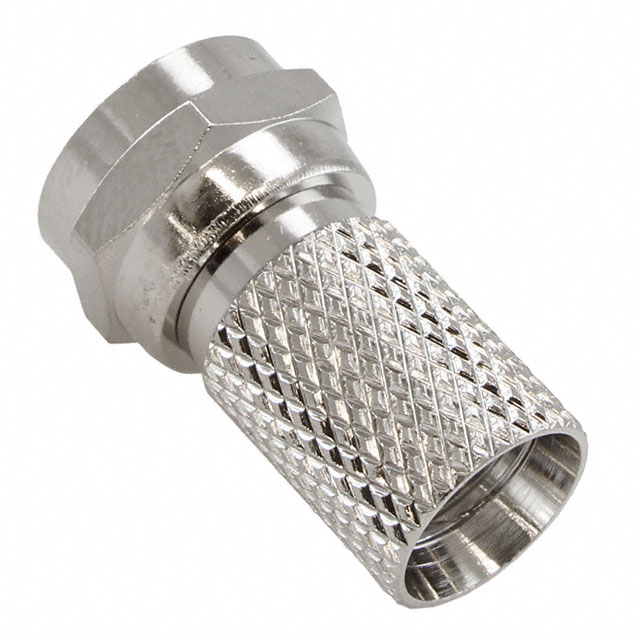

The substitute part TOF56 maintains the same connector style, type, contact termination method, and mounting configuration. Both parts are RoHS compliant and active products. Differences in shield termination method (crimp versus twist-on), fastening type, frequency rating, voltage rating, and operating temperature range represent design variations that may affect suitability depending on specific application requirements.

Parameter Comparison

Parameter	810PE205A (Winchester Interconnect)	TOF56 (Cinch Connectivity Solutions)
Connector Style	F Type	F Type
Connector Type	Plug, Male Pin	Plug, Male Pin
Contact Termination	Push On	Push On
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Impedance	Non-Constant	Non-Constant
Cable Group	RG-6	RG-6, CT100
Shield Termination	Crimp	Twist On
Fastening Type	Snap-On	Threaded
Frequency - Max	500 MHz	2 GHz
Operating Temperature	-40°C ~ 65°C	-65°C ~ 165°C
Voltage Rating	500 V	250 V
Mating Cycles	500	50
Body Material	Brass	Brass
RoHS Status	RoHS Compliant	RoHS Compliant
Product Status	Active	Active

Engineering Selection Recommendations

Both the 810PE205A and TOF56 are active, RoHS-compliant F Type connector plugs with push-on contact termination suitable for free-hanging in-line applications. Selection between these parts depends on application-specific requirements:

810PE205A Selection Criteria:

Applications requiring crimp shield termination
Snap-on fastening preference
Operating environments within -40°C to 65°C range
Systems requiring 500 V voltage rating
Frequent mating cycle applications (500 cycles rated)
Frequency requirements up to 500 MHz

TOF56 Selection Criteria:

Applications requiring twist-on shield termination
Threaded fastening preference
Extended operating temperature range (-65°C to 165°C)
Cable compatibility with RG-6 or CT100
Higher frequency applications (up to 2 GHz)
Lower mating cycle requirements (50 cycles rated)

Both parts maintain RoHS compliance and active product status, ensuring regulatory alignment and ongoing manufacturer support.

Frequently Asked Questions (FAQ)

Q: Can TOF56 directly replace 810PE205A in all applications?

A: TOF56 is functionally equivalent for F Type connector plug applications with push-on contact termination and free-hanging mounting. However, differences in shield termination method (twist-on versus crimp), fastening type (threaded versus snap-on), voltage rating (250 V versus 500 V), and mating cycle rating (50 versus 500) must be evaluated against specific application requirements.

Q: What is the significance of the shield termination difference?

A: The 810PE205A uses crimp shield termination, while TOF56 uses twist-on termination. These represent different assembly methods. Crimp termination typically provides a more permanent connection, while twist-on termination allows for tool-free assembly and disassembly.

Q: Are both parts suitable for the same cable types?

A: Both parts support RG-6 cable. TOF56 additionally supports CT100 cable. The 810PE205A is specifically rated for RG-6 applications.

Q: What are the mating cycle implications?

A: The 810PE205A is rated for 500 mating cycles, while TOF56 is rated for 50 mating cycles. Applications requiring frequent connection and disconnection should prioritize the 810PE205A.

Q: How do the frequency ratings differ?

A: The 810PE205A operates up to 500 MHz, while TOF56 operates up to 2 GHz. Applications requiring frequencies above 500 MHz should use TOF56.

Q: What is the voltage rating difference impact?

A: The 810PE205A is rated for 500 V, while TOF56 is rated for 250 V. High-voltage applications should use the 810PE205A.

Q: Are there operating temperature considerations?

A: The 810PE205A operates from -40°C to 65°C, while TOF56 operates from -65°C to 165°C. Applications in extreme temperature environments should select the part with the appropriate temperature range.

Q: What packaging options are available?

A: The 810PE205A is available in standard packaging, while TOF56 is available in bulk packaging.
