810-002-LP1R006 Equivalent & Substitute Parts

Part Overview

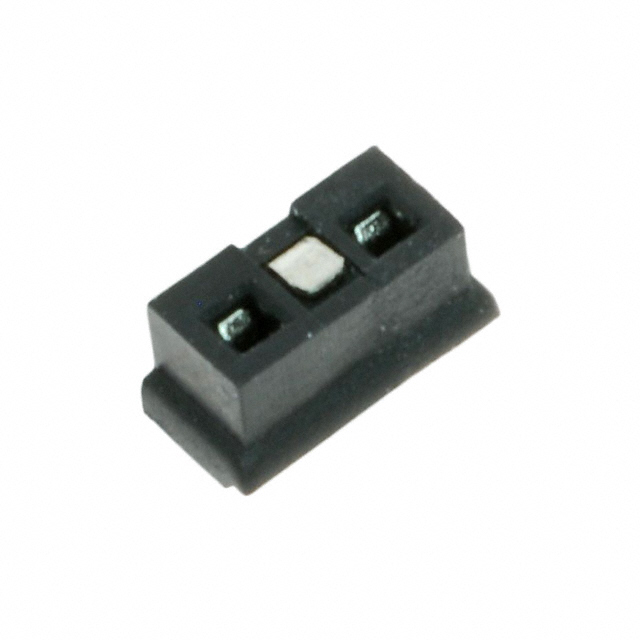

The 810-002-LP1R006 is a 2-position (1 x 2) shunt connector manufactured by NorComp Inc. with a 0.079" (2.00mm) pitch and 0.075" (1.91mm) low profile height. The connector features an open top design with female sockets, tin contact finish, and black thermoplastic housing rated UL94 V-0. This part is classified as obsolete, making identification of functionally equivalent alternatives necessary for ongoing system support and component procurement.

Substiute Parts

810-002-LP1R006

NorComp Inc.In Stock: 1009810-002-LP1R006 Datasheet

Current PartRFQ

810-002-LP1R001

NorComp Inc.In Stock: 45079810-002-LP1R001 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The 810-002-LP1R001 qualifies as a functional substitute for the 810-002-LP1R006 based on the following critical parameters:

• Position Configuration: Both parts maintain identical 2-position (1 x 2) grid layout
• Pitch Spacing: Both parts use 0.079" (2.00mm) pitch, ensuring mechanical and electrical compatibility
• Profile Height: Both parts share 0.075" (1.91mm) low profile height for identical form factor
• Connector Type: Both are open top female socket designs
• Housing Color & Material: Both feature black thermoplastic construction
• Flammability Rating: Both meet UL94 V-0 specification
• Regulatory Compliance: Both are ROHS3 compliant and REACH unaffected

The primary difference is the contact finish material: the substitute uses gold plating instead of tin, which represents an upgrade in corrosion resistance and contact reliability. The 810-002-LP1R001 is currently active in production with significantly higher inventory availability.

Parameter Comparison

Engineering Selection Recommendations

The 810-002-LP1R001 is the direct functional equivalent for the obsolete 810-002-LP1R006. Selection of the substitute is based on:

• Product Status: The 810-002-LP1R001 is active in production, ensuring long-term availability and supply chain continuity
• Regulatory Compliance: Both parts maintain identical ROHS3 and REACH compliance status
• Mechanical Compatibility: Identical pitch, height, and form factor ensure direct mechanical substitution without PCB redesign
• Material Upgrade: The polyamide (PA6T) nylon 6T housing in the substitute provides enhanced thermal and mechanical properties compared to standard thermoplastic
• Contact Reliability: Gold plating provides superior corrosion resistance and contact longevity compared to tin finish

The 810-002-LP1R001 is suitable for direct replacement in all applications where the 810-002-LP1R006 was originally specified.

Frequently Asked Questions (FAQ)

Q: Can the 810-002-LP1R001 be used as a direct replacement for the 810-002-LP1R006?

A: Yes. Both parts share identical position configuration, pitch spacing, height profile, connector type, and housing specifications. The parts are mechanically and electrically interchangeable without PCB modification.

Q: What is the difference between tin and gold contact finishes?

A: Gold plating provides superior corrosion resistance, lower contact resistance, and extended service life compared to tin. The 810-002-LP1R001 gold finish (15.0µin / 0.38µm) is an upgrade that enhances reliability in applications subject to environmental exposure or frequent mating cycles.

Q: Are there any compliance differences between these parts?

A: No. Both parts are ROHS3 compliant and REACH unaffected. Both meet UL94 V-0 flammability requirements.

Q: What is the current rating difference?

A: The 810-002-LP1R006 does not specify a current rating. The 810-002-LP1R001 is rated for 1A. This specification in the substitute indicates the maximum safe current capacity for the connector.

Q: Why is the 810-002-LP1R006 obsolete?

A: The 810-002-LP1R001 is the active production equivalent. NorComp Inc. has transitioned to the gold-plated variant as the standard offering, providing improved contact performance and reliability.

Q: What is the Moisture Sensitivity Level (MSL) difference?

A: The 810-002-LP1R006 lists MSL as not applicable. The 810-002-LP1R001 is rated MSL 1 (unlimited), indicating no moisture sensitivity restrictions for storage or handling.

Q: Are packaging options different?

A: The 810-002-LP1R006 is available in standard packaging. The 810-002-LP1R001 is supplied in bulk packaging, which may affect procurement quantities and logistics considerations.
