Equivalent & Substitute Parts for VCC 8095 Incandescent Lamp

Part Overview

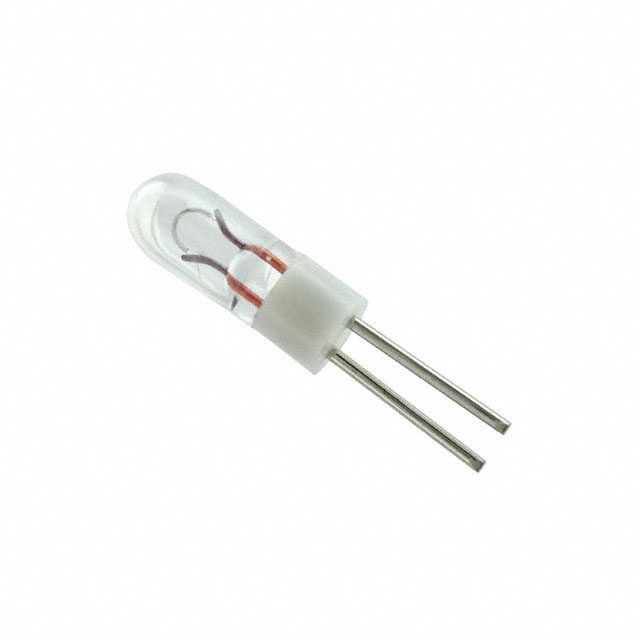

The VCC 8095 is an incandescent lamp designed for indicator and signaling applications. This component features a clear round lens with domed top, rated for 10V operation, and delivers 0.1 MSCP (Mean Spherical Candle Power). The part is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system support and component procurement.

Substitute parts must maintain identical electrical performance characteristics, mechanical form factor, and lead configuration to ensure direct compatibility in existing circuit designs and lamp sockets.

Substiute Parts

8095

Visual Communications Company - VCCIn Stock: 9008095 Datasheet

Current PartRFQ

8095

JKL Components Corp.In Stock: 8318095 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the VCC 8095 are identified based on strict equivalence across the following parameters:

Electrical Parameters:

• Voltage Rating: 10V (exact match required)
• Light Output: 0.1 MSCP (exact match required)
• Lamp Type: Incandescent technology

Mechanical Parameters:

• Lens Style: Round with Domed Top (exact match required)
• Lens Size Designation: RT-1 (exact match required)
• Lead Configuration: Radial - Bi-Pin .050 (exact match required)

Compliance Parameters:

• RoHS3 Compliance status
• Moisture Sensitivity Level 1 rating
• ECCN and HTSUS classifications

Substitutes must satisfy all critical parameters simultaneously. Deviations in voltage rating, lens geometry, lead configuration, or light output render a part incompatible for direct replacement.

Parameter Comparison

Engineering Selection Recommendations

The JKL Components 8095 incandescent lamp serves as a direct functional equivalent to the VCC 8095. Both parts satisfy identical electrical and mechanical specifications across all critical parameters.

Selection Basis:

The JKL Components 8095 is classified as Active product status, whereas the VCC 8095 is obsolete. This distinction is significant for long-term component availability and supply chain continuity. Both parts maintain ROHS3 compliance and identical ECCN/HTSUS classifications, confirming regulatory equivalence.

The substitute part carries identical part number designation (8095) across both manufacturers, indicating cross-industry recognition of this specification. Packaging is specified as Box for the JKL Components variant, which may differ from original VCC packaging but does not affect functional performance or socket compatibility.

Current inventory availability shows 807 pieces for the JKL Components substitute against 853 pieces for the original VCC part, indicating adequate supply for procurement decisions.

Frequently Asked Questions (FAQ)

Q: Can the JKL Components 8095 be used as a direct replacement for the VCC 8095 in existing designs?

A: Yes. Both parts are electrically and mechanically identical across all specified parameters. The JKL Components 8095 will function identically in any circuit or socket designed for the VCC 8095, provided the socket accommodates the Radial Bi-Pin .050 lead configuration.

Q: What is the significance of the "Obsolete" status for the VCC 8095?

A: Obsolete status indicates the VCC 8095 is no longer manufactured or supported by Visual Communications Company. The JKL Components 8095, classified as Active, represents the recommended source for ongoing procurement to ensure supply chain continuity.

Q: Are there differences in packaging between the two parts?

A: The VCC 8095 packaging is not specified in available data. The JKL Components 8095 is supplied in Box packaging. Packaging differences do not affect component performance or compatibility; however, packaging specifications should be confirmed with the supplier if specific packaging requirements exist.

Q: What parameters must remain identical for substitution to be valid?

A: Voltage rating (10V), lamp type (Incandescent), color (Clear), lens style (Round with Domed Top), lens size (RT-1), lead configuration (Radial Bi-Pin .050), and light output (0.1 MSCP) must all match exactly. Deviations in any of these parameters render the part incompatible.

Q: Are both parts RoHS compliant?

A: Yes. Both the VCC 8095 and JKL Components 8095 are ROHS3 compliant with MSL rating of 1 (Unlimited), confirming equivalent environmental and regulatory status.

Q: What is the lead configuration, and why is it critical?

A: Both parts feature Radial Bi-Pin .050 lead configuration. This specification defines the physical lead geometry and spacing required for socket compatibility. Substitutes must match this configuration exactly to ensure proper electrical contact and mechanical fit.
