TE Connectivity AMP Connectors 794699-1 Equivalent & Substitute Parts

Part Overview

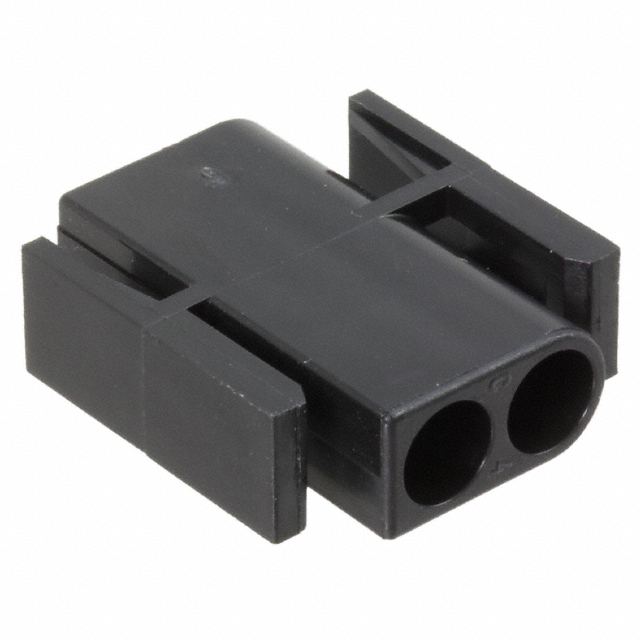

The TE Connectivity AMP Connectors 794699-1 is a 2-position rectangular connector plug housing designed for the MATE-N-LOK series. This component features a 0.240" (6.10mm) pitch, panel mount configuration, and crimp contact termination with latch lock fastening. The part is classified as obsolete, necessitating identification of active equivalent alternatives to maintain design continuity and ensure supply chain availability for new production and repair applications.

Substiute Parts

794699-1

TE Connectivity AMP ConnectorsIn Stock: 825794699-1 Datasheet

Current PartRFQ

1-350344-0

TE Connectivity AMP ConnectorsIn Stock: 742451-350344-0 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 794699-1 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Series: MATE-N-LOK
• Connector Type: Plug
• Contact Type: Female Socket
• Number of Positions: 2
• Pitch: 0.240" (6.10mm)
• Number of Rows: 1
• Mounting Type: Panel Mount
• Contact Termination: Crimp
• Fastening Type: Latch Lock
• Insulation Material: Polyamide (PA), Nylon
• Operating Temperature Range: -55°C ~ 105°C

The substitute part 1-350344-0 meets all mandatory matching parameters. The primary distinction is product status (active versus obsolete) and color specification (natural versus black). Both parts maintain identical electrical and mechanical interface characteristics, ensuring direct functional substitution within the MATE-N-LOK connector ecosystem.

Parameter Comparison

Engineering Selection Recommendations

The substitute part 1-350344-0 provides full functional equivalence to the obsolete 794699-1 across all critical electrical and mechanical parameters. Selection of the substitute is supported by the following factors:

Product Status: The substitute part maintains active product status with TE Connectivity, ensuring continued availability and manufacturing support. The main part's obsolete classification creates supply chain risk for ongoing production and field service applications.

Compliance Certification: Both parts maintain RoHS compliance. The substitute achieves ROHS3 compliance, representing an enhanced regulatory position relative to the main part's RoHS Compliant status. Both parts carry identical MSL ratings and ECCN classifications, confirming equivalent handling and export compliance requirements.

Electrical and Mechanical Compatibility: All interface parameters—connector type, contact configuration, pitch, mounting method, termination type, and fastening mechanism—are identical. The substitute integrates directly into existing MATE-N-LOK connector assemblies without modification to mating components or circuit board layouts.

Color Specification: The substitute features natural color insulation material instead of black. This distinction is cosmetic and does not affect electrical performance, mechanical fit, or thermal characteristics. Color selection should be evaluated based on application-specific requirements and assembly documentation.

Frequently Asked Questions (FAQ)

Q: Can 1-350344-0 directly replace 794699-1 in existing designs?

A: Yes. The substitute part maintains identical electrical and mechanical specifications across all critical parameters including connector type, contact configuration, pitch, mounting type, termination method, and fastening mechanism. Direct substitution is supported without circuit board or assembly modifications.

Q: What is the significance of the color difference between the parts?

A: The main part features black insulation material while the substitute features natural color. This difference is cosmetic and does not affect electrical performance, mechanical compatibility, thermal characteristics, or operating temperature range. Color selection should be based on application documentation and assembly requirements.

Q: Are there compliance differences between the two parts?

A: Both parts maintain RoHS compliance. The substitute achieves ROHS3 compliance, representing an enhanced regulatory position. Both parts carry identical Moisture Sensitivity Level (MSL) ratings of 1 (Unlimited) and identical ECCN classifications (EAR99), confirming equivalent handling and export compliance.

Q: Why is the main part classified as obsolete?

A: The 794699-1 is designated obsolete by TE Connectivity. The substitute part 1-350344-0 maintains active product status, ensuring continued manufacturing support, availability, and supply chain reliability for new production and field service applications.

Q: Are contacts included with either part?

A: No. Both the main part and substitute are connector housings only. Contacts are not included and must be sourced separately according to application requirements.

Q: What is the packaging difference between the parts?

A: The main part is supplied in unspecified packaging, while the substitute is supplied in bulk packaging. Packaging format should be evaluated based on procurement volume and inventory management requirements.

Q: Can the substitute be used in applications requiring black insulation material?

A: The substitute features natural color insulation. Applications with specific color requirements should be evaluated against assembly documentation and design specifications. Color is a cosmetic parameter and does not affect electrical or mechanical function.
