TE Connectivity AMP Connectors 794682-4 Equivalent & Substitute Parts

Part Overview

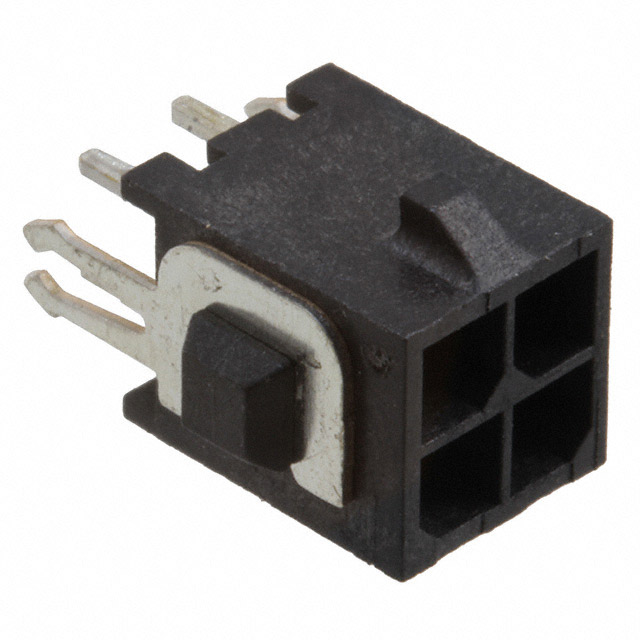

The TE Connectivity AMP Connectors 794682-4 is a rectangular connector header designed for through-hole mounting applications. This connector is classified as Obsolete, necessitating identification of equivalent and substitute parts for ongoing design and procurement requirements. The 794682-4 features a vertical orientation with 4 positions arranged in 2 rows, 0.118" (3.00mm) pitch, and shrouded 4-wall construction suitable for board-to-cable/wire connections. Active equivalent and substitute parts are available from TE Connectivity and Molex manufacturers, offering functional compatibility with documented parameter variations.

Substiute Parts

794682-4

TE Connectivity AMP ConnectorsIn Stock: 782794682-4 Datasheet

Current PartRFQ

3-794682-4

TE Connectivity AMP ConnectorsIn Stock: 216143-794682-4 Datasheet

DirectRFQ

0430450414

MolexIn Stock: 350560430450414 Datasheet

SimilarRFQ

0440670401

MolexIn Stock: 9050440670401 Datasheet

SimilarRFQ

0440670402

MolexIn Stock: 11780440670402 Datasheet

SimilarRFQ

0440670403

MolexIn Stock: 9060440670403 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 794682-4 is determined by strict alignment with the following critical parameters: connector type (Header), contact type (Male Pin), number of positions (4), number of rows (2), mating pitch (0.118" / 3.00mm), row spacing (0.118" / 3.00mm), mounting type (Through Hole), shrouding configuration (Shrouded - 4 Wall), style (Board to Cable/Wire), termination method (Solder), fastening type (Locking Ramp), contact shape (Square), contact material (Brass), and insulation material composition.

Substitute parts are grouped into two categories:

Direct Equivalent: Part 3-794682-4 from TE Connectivity AMP Connectors maintains identical electrical and mechanical specifications to the main part, with the primary distinction being Active product status and ROHS3 compliance. This part represents a direct replacement with enhanced regulatory compliance.

Similar Substitutes: Parts 0430450414, 0440670401, 0440670402, and 0440670403 from Molex maintain core functional parameters including connector type, contact type, position count, row configuration, mating pitch, row spacing, mounting type, shrouding, style, termination, fastening type, contact shape, and contact material. These parts introduce variations in insulation material (Liquid Crystal Polymer with glass fill versus Polyamide/Nylon), contact post length (0.158" / 4.01mm versus 0.125" / 3.18mm), insulation height (0.390" / 9.91mm versus 0.364" / 9.25mm), and contact finish specifications. All substitute parts maintain UL94 V-0 flammability rating and MSL 1 classification.

Parameter Comparison

Engineering Selection Recommendations

Primary Selection: 3-794682-4

The TE Connectivity AMP Connectors 3-794682-4 is the recommended primary substitute for the obsolete 794682-4. This part maintains complete electrical and mechanical compatibility with identical specifications across all critical parameters. The 3-794682-4 holds Active product status, ensuring ongoing availability and supply chain continuity. This part achieves ROHS3 compliance and REACH Unaffected status, meeting current regulatory requirements. The primary distinction from the main part is the elimination of tin-lead contact finish on the post, replaced with tin finish, and enhanced regulatory compliance documentation. Inventory availability of 21,530 pieces supports production requirements.

Secondary Selection: 0430450414 (Molex Micro-Fit 3.0 43045)

The Molex 0430450414 provides functional substitution with documented parameter variations. This part maintains core connector architecture, position count, pitch, and mounting characteristics. The insulation material differs, utilizing Liquid Crystal Polymer with glass fill instead of Polyamide/Nylon, providing enhanced thermal and mechanical properties. The contact post length remains at 0.125" (3.18mm), matching the main part specification. The voltage rating increases to 600V, exceeding the 250V specification of the main part. Current rating is specified at 8A. This part is suitable for applications requiring enhanced material performance and higher voltage margins. Active product status and ROHS3 compliance are confirmed.

Tertiary Selection: 0440670401, 0440670402, 0440670403 (Molex Micro-Fit 3.0 44067)

The Molex 0440670401, 0440670402, and 0440670403 parts provide functional substitution with extended contact post length of 0.158" (4.01mm), representing a 0.033" (0.83mm) increase from the main part specification. These parts utilize Liquid Crystal Polymer insulation material with glass fill. Mated stacking height is specified at 17.27mm. Contact finish variations exist: 0440670401 features tin mating finish, while 0440670402 and 0440670403 feature gold mating finish with differing thickness specifications (15.0µin and 30.0µin respectively). These parts are suitable for applications where extended post length accommodates thicker printed circuit board assemblies or specific mechanical requirements. All three parts maintain Active product status and ROHS3 compliance.

Frequently Asked Questions (FAQ)

Q: Can the 3-794682-4 be used as a direct replacement for the 794682-4?

A: Yes. The 3-794682-4 maintains identical electrical and mechanical specifications across all critical parameters including connector type, contact type, position count, pitch, mounting type, shrouding, and termination method. The primary differences are Active product status and enhanced regulatory compliance (ROHS3 Compliant, REACH Unaffected). The contact finish on the post changes from tin-lead to tin, which does not affect functional compatibility.

Q: What are the key differences between the TE Connectivity 3-794682-4 and the Molex 0430450414?

A: Both parts maintain identical mating pitch (0.118" / 3.00mm), row spacing, position count, and mounting type. The primary differences are: (1) Insulation material: 3-794682-4 uses Polyamide/Nylon while 0430450414 uses Liquid Crystal Polymer with glass fill; (2) Insulation height: 3-794682-4 is 0.364" (9.25mm) while 0430450414 is 0.390" (9.91mm); (3) Voltage rating: 3-794682-4 is 250V while 0430450414 is 600V; (4) Current rating: 0430450414 specifies 8A while 3-794682-4 specifies current varies by wire gauge. The 0430450414 is suitable for applications requiring higher voltage margins and enhanced material properties.

Q: What is the difference between the Molex 0440670401, 0440670402, and 0440670403?

A: These three parts are from the same Micro-Fit 3.0 44067 series and share identical core specifications. The differences are in contact finish specifications: (1) 0440670401 features tin mating finish with 100.0µin thickness; (2) 0440670402 features gold mating finish with 15.0µin thickness; (3) 0440670403 features gold mating finish with 30.0µin thickness. All three parts feature extended contact post length of 0.158" (4.01mm) compared to the main part's 0.125" (3.18mm).

Q: Why do the Molex 44067 series parts have longer contact posts?

A: The extended contact post length of 0.158" (4.01mm) in the 0440670401, 0440670402, and 0440670403 parts accommodates applications requiring deeper insertion into printed circuit board assemblies or specific mechanical stack-up requirements. This parameter is provided in the part specifications and should be evaluated against your application's printed circuit board thickness and connector mounting depth requirements.

Q: Are all substitute parts RoHS compliant?

A: The 3-794682-4 and all Molex substitute parts (0430450414, 0440670401, 0440670402, 0440670403) are ROHS3 Compliant. The original 794682-4 has RoHS Status listed as "Not applicable" due to its obsolete classification. All substitute parts maintain REACH Unaffected status.

Q: What is the packaging format for these parts?

A: The original 794682-4 packaging format is not specified in the provided data. The 3-794682-4 is supplied in Tray packaging. All Molex substitute parts (0430450414, 0440670401, 0440670402, 0440670403) are supplied in Tray packaging.

Q: Can these connectors be used in automotive applications?

A: The Molex 0430450414 explicitly lists Automotive among its applications. The TE Connectivity 3-794682-4 lists General Purpose applications. The Molex 0440670401, 0440670402, and 0440670403 list General Purpose, Medical, Military, and Telecommunications applications. Application suitability should be confirmed against specific automotive qualification requirements if automotive use is required.

Q: What is the operating temperature range for these connectors?

A: The TE Connectivity 794682-4 and 3-794682-4 specify operating temperature range of -40°C to 105°C. The Molex substitute parts do not provide operating temperature specifications in the available data.

Q: Are these parts suitable for lead-free solder assembly?

A: The 3-794682-4 features tin contact finish on the post, which is compatible with lead-free solder processes. The original 794682-4 features tin-lead contact finish on the post. The Molex parts feature tin contact finish on the post, compatible with lead-free solder processes. Specific lead-free assembly compatibility should be confirmed with your manufacturing process requirements.
