TE Connectivity AMP Connectors 794619-2 Equivalent & Substitute Parts

Part Overview

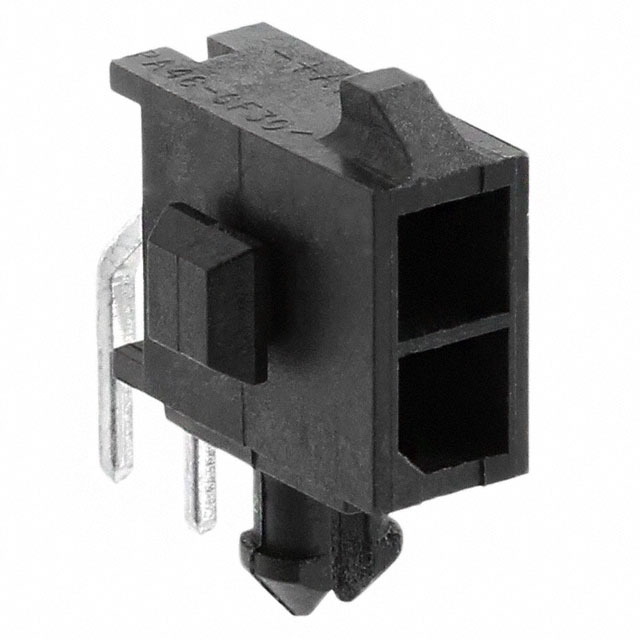

The TE Connectivity AMP Connectors 794619-2 is a rectangular connector header designed for through-hole, right-angle mounting applications. This connector is part of the Micro MATE-N-LOK series and features a 2-position, 2-row configuration with shrouded 4-wall design for board-to-cable/wire connections. The 794619-2 is classified as obsolete, making identification of active equivalent parts essential for ongoing procurement and design continuity.

Substiute Parts

794619-2

TE Connectivity AMP ConnectorsIn Stock: 737794619-2 Datasheet

Current PartRFQ

3-794619-2

TE Connectivity AMP ConnectorsIn Stock: 9533-794619-2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete 794619-2 is determined by strict equivalence across the following critical parameters:

Mechanical Compatibility Parameters:

• Connector type (Header)
• Number of positions (2)
• Number of rows (2)
• Row spacing (0.118" / 3.00mm)
• Mounting type (Through Hole, Right Angle)
• Shrouding configuration (Shrouded - 4 Wall)
• Contact type (Male Pin)
• Insulation height (0.290" / 7.37mm)
• Contact shape (Square)

Electrical Compatibility Parameters:

• Voltage rating (250V)
• Operating temperature range (-40°C ~ 105°C)
• Material flammability rating (UL94 V-0)

Termination Parameters:

• Termination method (Solder)
• Fastening type (Locking Ramp)

The substitute part 3-794619-2 maintains full equivalence across all mechanical and electrical parameters. The primary differences are product status (Active vs. Obsolete), packaging format (Tray vs. standard), contact finish post material (Tin vs. Tin-Lead), and regulatory compliance status (RoHS Compliant vs. RoHS non-compliant).

Parameter Comparison

Engineering Selection Recommendations

The 3-794619-2 is the direct active equivalent for the obsolete 794619-2. Both parts maintain identical mechanical and electrical specifications across all critical parameters including connector configuration, voltage rating, operating temperature range, and flammability certification.

Product Status Consideration: The 794619-2 is classified as obsolete, while the 3-794619-2 is active. For new designs and ongoing procurement, the 3-794619-2 is the appropriate selection to ensure long-term component availability and supply chain continuity.

Regulatory Compliance: The 3-794619-2 is RoHS Compliant, whereas the 794619-2 is RoHS non-compliant. For applications subject to RoHS requirements, the 3-794619-2 is the mandated choice. Both parts carry UL94 V-0 flammability certification and operate across the identical temperature range of -40°C to 105°C.

Contact Finish Difference: The primary technical distinction is the contact finish post material. The 794619-2 uses Tin-Lead finish, while the 3-794619-2 uses Tin finish. Both finishes provide equivalent solder joint reliability and electrical performance for through-hole solder termination applications. The Tin finish in the 3-794619-2 aligns with lead-free manufacturing standards.

Packaging: The 3-794619-2 is supplied in Tray packaging, whereas the 794619-2 uses standard packaging. Packaging format does not affect electrical or mechanical compatibility.
