TE Connectivity 794264-1 Rectangular Connector Housing - Equivalent & Substitute Parts

Part Overview

The TE Connectivity 794264-1 is a 20-position receptacle housing for rectangular connectors in the Mini-Universal MATE-N-LOK II series. This component features a 0.163" (4.14mm) pitch configuration with dual-row arrangement and crimp-type contact termination. The part is classified as obsolete, necessitating identification of active equivalent alternatives for ongoing procurement and system integration requirements.

Substiute Parts

794264-1

TE Connectivity AMP ConnectorsIn Stock: 899794264-1 Datasheet

Current PartRFQ

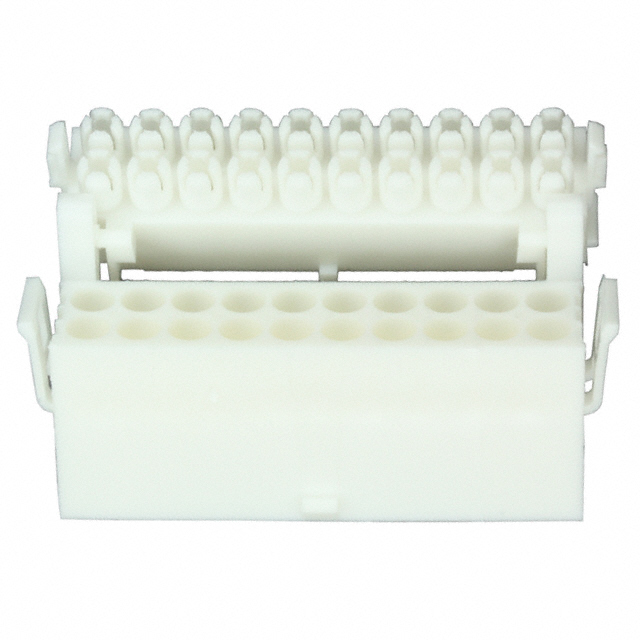

794211-1

TE Connectivity AMP ConnectorsIn Stock: 999794211-1 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 794264-1 is based on electrical and mechanical parameter equivalence within the Mini-Universal MATE-N-LOK II connector series. The critical parameters determining substitutability are:

• Connector Type: Receptacle housing configuration
• Number of Positions: 20-position capacity
• Pitch and Row Spacing: 0.163" (4.14mm) dual-row arrangement
• Contact Termination: Crimp-type interface
• Fastening Mechanism: Locking ramp engagement system
• Insulation Material: Polyamide (PA) nylon construction
• Series Compatibility: Mini-Universal MATE-N-LOK II platform

The substitute part 794211-1 maintains identical electrical and mechanical specifications across all critical parameters, ensuring direct functional equivalence for circuit board integration and mating operations.

Parameter Comparison

Engineering Selection Recommendations

The 794211-1 serves as the direct active equivalent for the obsolete 794264-1. Both components maintain identical electrical and mechanical specifications across all critical parameters, ensuring functional interchangeability in Mini-Universal MATE-N-LOK II connector applications.

The 794211-1 is classified as an active product with current manufacturing support, whereas the 794264-1 is obsolete. Both components carry RoHS compliance certification and MSL Level 1 rating, indicating equivalent environmental and regulatory standing.

Selection of the 794211-1 for new designs and procurement activities eliminates obsolescence risk while maintaining full compatibility with existing connector systems and contact interfaces. The substitute part is available in bulk packaging format.

Frequently Asked Questions (FAQ)

Q: Can the 794211-1 directly replace the 794264-1 in existing assemblies?

A: Yes. The 794211-1 maintains identical electrical and mechanical specifications including connector type, position count, pitch, row spacing, mounting configuration, contact termination method, and fastening mechanism. Direct substitution is supported without design modification.

Q: What is the primary difference between these two parts?

A: The 794264-1 is classified as obsolete, while the 794211-1 is an active product with current manufacturing availability. Both components are functionally equivalent across all specified parameters.

Q: Are there any compliance or certification differences?

A: No. Both the 794264-1 and 794211-1 carry identical RoHS compliance status and Moisture Sensitivity Level 1 (Unlimited) ratings.

Q: Does packaging format affect compatibility?

A: Packaging format does not affect electrical or mechanical compatibility. The 794264-1 is supplied in standard packaging, while the 794211-1 is available in bulk packaging. Both formats contain identical connector housings suitable for the same applications.

Q: Are contacts included with these housing components?

A: No. Both the 794264-1 and 794211-1 are housing-only components. Contacts must be procured separately and installed through crimp termination methods.

Q: What applications are these connectors suitable for?

A: These 20-position receptacle housings are designed for free-hanging in-line connector applications within systems utilizing the Mini-Universal MATE-N-LOK II connector platform. Specific application suitability depends on system-level requirements and mating plug configurations.
