TE Connectivity 794260-1 Rectangular Connector Housing – Equivalent & Substitute Parts

Part Overview

The TE Connectivity 794260-1 is a 16-position receptacle housing connector from the Mini-Universal MATE-N-LOK II series. This connector is designed for applications requiring rectangular connector housings with crimp termination and locking ramp fastening. The part is currently active in production with 923 units in stock. Substitute parts are identified when equivalent electrical and mechanical parameters are required for component procurement, inventory management, or supply chain continuity.

Substiute Parts

794260-1

TE Connectivity AMP ConnectorsIn Stock: 1017794260-1 Datasheet

Current PartRFQ

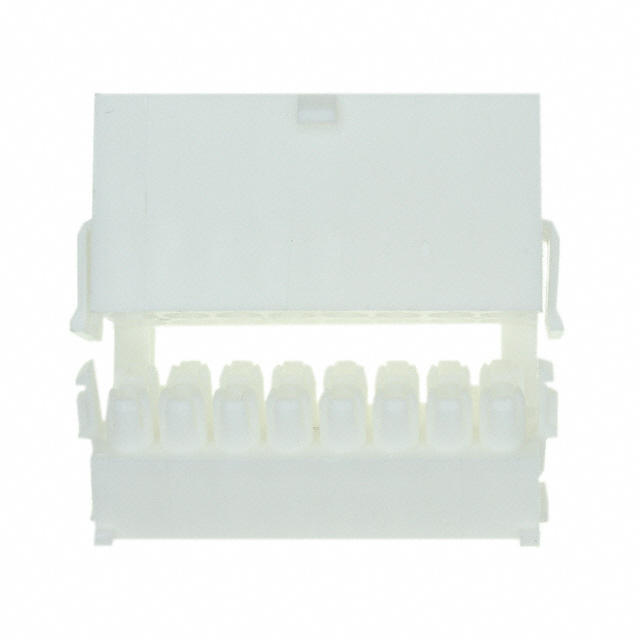

794207-1

TE Connectivity AMP ConnectorsIn Stock: 1294794207-1 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the TE Connectivity 794260-1 are identified based on strict equivalence of the following critical parameters:

• Connector Type: Receptacle housing
• Number of Positions: 16
• Pitch: 0.163" (4.14mm)
• Number of Rows: 2
• Row Spacing: 0.163" (4.14mm)
• Mounting Type: Free Hanging (In-Line)
• Contact Termination: Crimp
• Fastening Type: Locking Ramp
• Insulation Material: Polyamide (PA), Nylon
• Series: Mini-Universal MATE-N-LOK II

The substitute part TE Connectivity 794207-1 matches all critical electrical and mechanical parameters, confirming functional interchangeability within the Mini-Universal MATE-N-LOK II connector family.

Parameter Comparison

Engineering Selection Recommendations

Both the TE Connectivity 794260-1 and 794207-1 are active production parts with full compliance certifications. The 794260-1 carries ROHS3 compliance, while the 794207-1 carries RoHS compliance. Both parts maintain MSL Level 1 (Unlimited) moisture sensitivity ratings, indicating no special storage or handling requirements.

Selection between these parts should be based on:

1. Inventory Availability: The 794207-1 substitute has higher current stock (1249 units) compared to the 794260-1 (923 units).
2. Compliance Requirements: Verify that ROHS3 compliance (794260-1) or RoHS compliance (794207-1) aligns with your application and regional requirements.
3. Supply Chain Continuity: Either part provides equivalent functionality for rectangular connector housing applications within the Mini-Universal MATE-N-LOK II series.

Frequently Asked Questions (FAQ)

Q: Are the 794260-1 and 794207-1 mechanically interchangeable?

A: Yes. Both parts share identical pitch (0.163" / 4.14mm), row configuration (2 rows), position count (16), mounting type (Free Hanging In-Line), and fastening mechanism (Locking Ramp). They are mechanically interchangeable within the Mini-Universal MATE-N-LOK II connector family.

Q: What is the difference in RoHS compliance between these parts?

A: The 794260-1 is ROHS3 compliant, while the 794207-1 is RoHS compliant. ROHS3 represents the current regulatory standard. Verify your application's compliance requirements before selection.

Q: Do these connectors include contacts?

A: No. Both the 794260-1 and 794207-1 are housing-only components. Contacts must be procured separately and installed via crimp termination.

Q: Can I use these parts in high-moisture environments?

A: Both parts carry MSL Level 1 (Unlimited) ratings, indicating no moisture sensitivity restrictions. Standard handling and storage practices apply.

Q: What is the pitch specification, and why is it important?

A: The pitch is 0.163" (4.14mm), representing the center-to-center distance between adjacent contact positions. This specification determines mechanical and electrical compatibility with mating connectors and contact sets.

Q: Are both parts suitable for crimp termination applications?

A: Yes. Both the 794260-1 and 794207-1 are designed for crimp contact termination with locking ramp fastening, supporting standard connector assembly processes.
