Part Overview

The TE Connectivity 794253-1 is a 12-position rectangular connector plug housing from the Mini-Universal MATE-N-LOK II series. This connector housing is designed for crimp contact termination with a 0.163" (4.14mm) pitch configuration and free-hanging in-line mounting. The part is currently active in production status with 814 pieces available in inventory. Substitute parts are identified to provide alternative sourcing options when the primary part number is unavailable or when inventory requirements necessitate alternative component selection.

Substiute Parts

794253-1

TE Connectivity AMP ConnectorsIn Stock: 901794253-1 Datasheet

Current PartRFQ

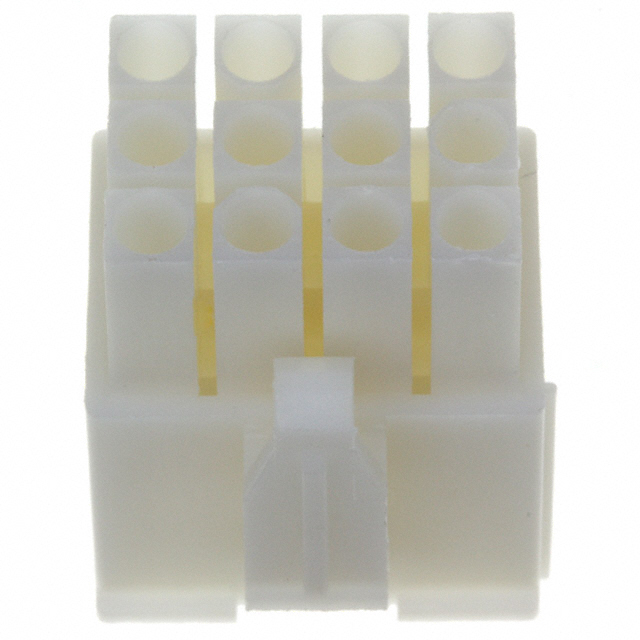

172170-1

TE Connectivity AMP ConnectorsIn Stock: 7826172170-1 Datasheet

Parametric EquivalentRFQ

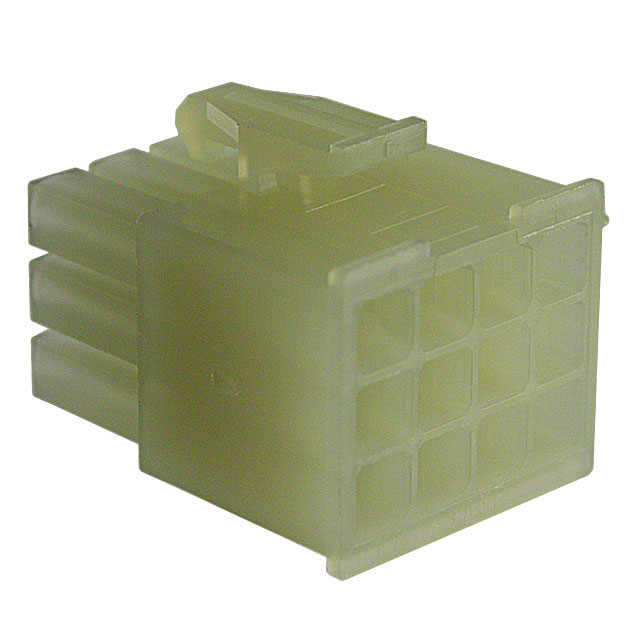

172341-1

TE Connectivity AMP ConnectorsIn Stock: 3951172341-1 Datasheet

Parametric EquivalentRFQ

794200-1

TE Connectivity AMP ConnectorsIn Stock: 1141794200-1 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 794253-1 are qualified based on the following critical parameters that determine functional and mechanical compatibility:

Primary Equivalence Criteria:

• Connector type: Plug
• Number of positions: 12
• Pitch: 0.163" (4.14mm)
• Number of rows: 3
• Row spacing: 0.163" (4.14mm)
• Mounting type: Free Hanging (In-Line)
• Contact termination: Crimp
• Fastening type: Latch Lock
• Color: Natural
• Moisture sensitivity level: 1 (Unlimited)

All identified substitute parts meet these core electrical and mechanical parameters. Variations exist in series designation (Mini-Universal MATE-N-LOK versus Mini-Universal MATE-N-LOK II), insulation material composition, operating temperature specifications, and RoHS compliance status. These variations do not affect the fundamental substitution relationship for applications requiring a 12-position rectangular connector plug housing with 4.14mm pitch and latch lock fastening.

Parameter Comparison

Engineering Selection Recommendations

All four part numbers (794253-1, 172170-1, 172341-1, and 794200-1) are active products from TE Connectivity AMP Connectors and meet the core mechanical and electrical requirements for 12-position rectangular connector plug housings with 4.14mm pitch and latch lock fastening.

Compliance Considerations:

The 794253-1 carries ROHS3 compliance status. The substitute parts 172170-1, 172341-1, and 794200-1 carry RoHS compliance status. All parts maintain MSL 1 (Unlimited) moisture sensitivity level, indicating no special moisture handling requirements during storage or assembly.

Series Compatibility:

The 794253-1 and 794200-1 belong to the Mini-Universal MATE-N-LOK II series. The 172170-1 and 172341-1 belong to the Mini-Universal MATE-N-LOK series. Both series are compatible for applications requiring 12-position plug housings with identical pitch and row spacing specifications.

Material and Temperature Specifications:

The 794253-1 and 794200-1 specify Polyamide (PA) and Nylon insulation material without defined operating temperature ranges. The 172170-1 and 172341-1 specify Polyamide (PA66) and Nylon 6/6 insulation material with operating temperature range of -20°C to 105°C. Selection between these options depends on application-specific temperature requirements and material compatibility needs.

Inventory Availability:

Part 172170-1 offers the highest inventory availability at 7767 pieces, followed by 172341-1 at 3852 pieces, 794200-1 at 1083 pieces, and 794253-1 at 814 pieces. Inventory levels should be considered when planning component procurement and supply chain continuity.
