TE Connectivity AMP Connectors 794013-1 Equivalent & Substitute Parts

Part Overview

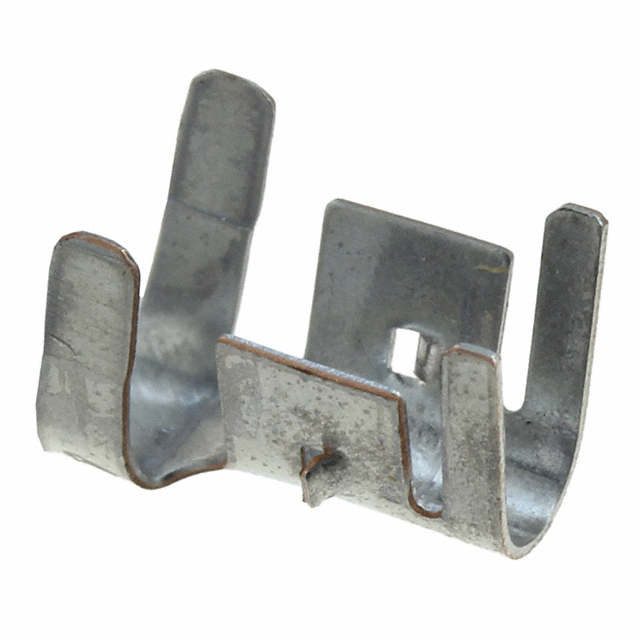

The TE Connectivity AMP Connectors 794013-1 is a WTB Tin-Lead Terminal Connector rated for 12 AWG wire gauge applications. This through-board terminal connector features phosphor bronze contact material with tin-lead finish and is designed for wire termination in the Amp-In series.

The 794013-1 is classified as obsolete product status. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production requirements for applications utilizing this connector specification.

Substiute Parts

794013-1

TE Connectivity AMP ConnectorsIn Stock: 711794013-1 Datasheet

Current PartRFQ

3-794013-1

TE Connectivity AMP ConnectorsIn Stock: 726093-794013-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 794013-1 is determined by strict equivalence across the following critical parameters:

• Wire Gauge: 12 AWG (fixed requirement)
• Terminal Type: Through Board (fixed requirement)
• Hole Diameter: 0.125" (3.18mm) (fixed requirement)
• Insulation Diameter Range: 0.090" ~ 0.150" (2.29mm ~ 3.81mm) (fixed requirement)
• Length - Overall: 0.295" (7.49mm) (fixed requirement)
• Contact Material: Phosphor Bronze (fixed requirement)
• Series: Amp-In (fixed requirement)
• RoHS Compliance: ROHS3 Compliant (fixed requirement)
• Moisture Sensitivity Level: 1 (Unlimited) (fixed requirement)

The substitute part 3-794013-1 maintains all critical mechanical and electrical parameters identical to the main part. The primary difference is the contact finish specification: the substitute uses tin finish instead of tin-lead finish. Both finishes are compatible with the phosphor bronze base material and maintain equivalent electrical performance for 12 AWG through-board terminal applications.

Parameter Comparison

Engineering Selection Recommendations

The 3-794013-1 serves as the direct substitute for the obsolete 794013-1. Both parts maintain identical mechanical dimensions, electrical specifications, and compliance certifications required for 12 AWG through-board terminal applications within the Amp-In series.

The 3-794013-1 is classified as active product status, ensuring ongoing availability and supply chain support. This part carries ROHS3 compliance and MSL 1 rating, matching the original specification.

The contact finish difference between tin-lead (794013-1) and tin (3-794013-1) does not affect mechanical compatibility or electrical performance for standard through-board terminal applications. Both finishes provide equivalent corrosion resistance and solderability characteristics on phosphor bronze substrates.

The 3-794013-1 is supplied in Cut Tape (CT) packaging, which is standard for high-volume production environments and component automation systems.
