LAPP 79016600 Equivalent & Substitute Parts Reference

Part Overview

The LAPP 79016600 is an EPIC® HB series base-box mount connector with side entry configuration, designed for M25 thread applications requiring IP65 dust-tight and water-resistant protection. This connector is classified as an active product with 621 units in current inventory stock. Alternative equivalent parts may be required due to supply chain considerations, regional availability, or specific application requirements where substitute connectors meet identical electrical and mechanical specifications.

Substiute Parts

79016600

LAPPIn Stock: 68779016600 Datasheet

Current PartRFQ

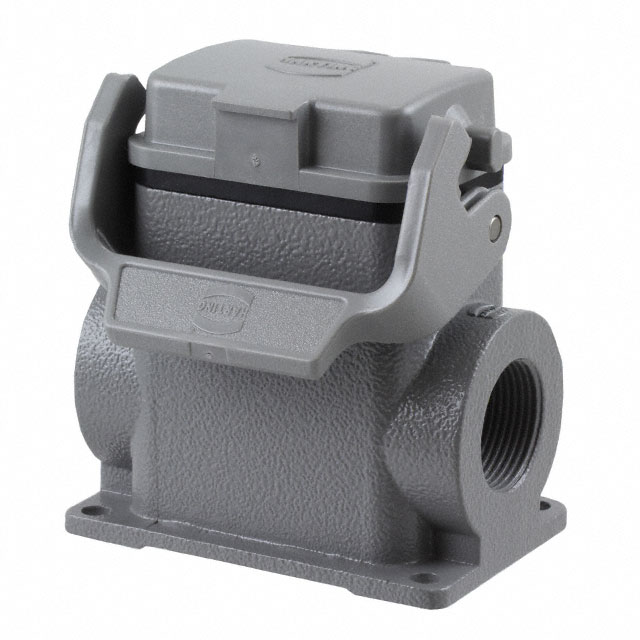

19300060296

HARTINGIn Stock: 126119300060296 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the LAPP 79016600 is determined by strict alignment of the following critical parameters:

Primary Substitution Criteria:

• Connector Type: Base - Box Mount configuration
• Style: Side Entry orientation
• Thread Size: M25 specification
• Ingress Protection: IP65 minimum rating (dust tight, water resistant)
• Lock Mechanism: Locking Clip on Base Bottom
• Housing Material: Aluminum or Aluminum Alloy composition
• Housing Finish: Powder Coated surface treatment

The HARTING 19300060296 (Han® B series) qualifies as an equivalent substitute based on matching all primary criteria. Both connectors share identical connector type, side entry style, M25 thread size, IP65 ingress protection, locking clip configuration, aluminum housing material, and powder-coated finish. Dimensional variations and extended operating temperature range in the substitute do not affect functional equivalency for standard applications.

Parameter Comparison

Engineering Selection Recommendations

Both the LAPP 79016600 and HARTING 19300060296 are active products with current manufacturing status and identical export control classifications (EAR99). Selection between these connectors should be based on:

Inventory and Supply Availability: LAPP 79016600 has 621 units in stock; HARTING 19300060296 has 1165 units available. Higher inventory levels may support extended lead time requirements.

Compliance and Certifications: HARTING 19300060296 carries RoHS3 compliance and REACH unaffected status with MSL Level 1 rating. LAPP 79016600 compliance documentation is not specified in available parameters.

Operating Temperature Envelope: HARTING 19300060296 supports -40°C to 125°C operation, providing 25°C extended upper temperature capability compared to LAPP 79016600 (-40°C to 100°C). Applications requiring sustained elevated temperature operation should specify the HARTING substitute.

Dimensional Accommodation: Dimensional differences exist between the two connectors. Installation space constraints must be evaluated against provided measurements before final selection.

Frequently Asked Questions (FAQ)

Q: Can HARTING 19300060296 directly replace LAPP 79016600 in existing installations?

A: Yes, for applications where the primary functional requirements are M25 side-entry base-mount configuration with IP65 protection and locking clip mechanism. Dimensional differences and extended temperature rating of the HARTING substitute do not affect functional compatibility for standard applications. Physical space availability in the installation must be confirmed.

Q: What are the key differences between these two connectors?

A: The connectors share identical connector type, style, thread size, ingress protection rating, and locking mechanism. Differences include: manufacturer series designation (EPIC® HB vs. Han® B), size nomenclature (HB6 vs. 6B), physical dimensions, housing material specification (Aluminum Alloy vs. Aluminum Die Cast), operating temperature range (100°C vs. 125°C maximum), and additional feed-through feature on the HARTING unit.

Q: Are there compliance or certification differences between these parts?

A: Both connectors share EAR99 export classification and identical HTSUS coding. HARTING 19300060296 includes documented RoHS3 compliance and REACH unaffected status with MSL Level 1 rating. LAPP 79016600 compliance documentation is not provided in available specifications.

Q: Which connector should be selected for high-temperature applications?

A: HARTING 19300060296 supports continuous operation to 125°C, compared to 100°C maximum for LAPP 79016600. Applications requiring sustained elevated temperature operation should specify the HARTING substitute.

Q: How do the packaging quantities affect procurement decisions?

A: Both connectors are supplied in bulk packaging. HARTING 19300060296 has higher current inventory (1165 units) compared to LAPP 79016600 (621 units), which may provide supply chain advantages for large-volume requirements or extended delivery schedules.

Q: Are dimensional differences critical for installation compatibility?

A: Dimensional variations exist: LAPP 79016600 measures 84.00mm L x 52.00mm W x 57.00mm H; HARTING 19300060296 measures 82.00mm L x 57.00mm W x 73.80mm H. Installation space constraints must be evaluated against these specifications before final selection.
