TE Connectivity 788800-2 D-Sub Receptacle Equivalent & Substitute Parts
Part Overview

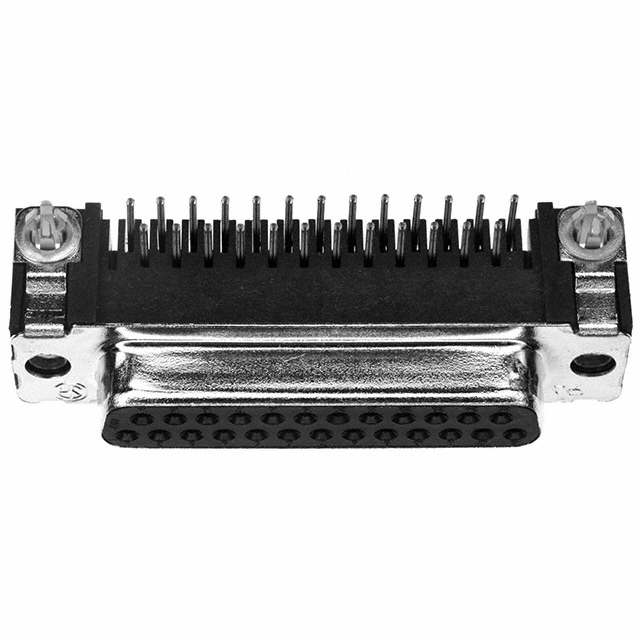

The TE Connectivity AMP Connectors 788800-2 is a 25-position D-Sub receptacle connector with right-angle solder termination, designed for through-hole mounting applications. This connector features female sockets in a 2-row configuration with shell size 3 (DB, B) layout. The part is classified as obsolete, necessitating identification of active equivalent and substitute components that maintain functional compatibility with existing circuit board designs and mating connector specifications.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Shell Size, Connector Layout | 3 (DB, B) |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Backset Spacing | 0.318" (8.08mm) |
| Current Rating | 6A |
| Voltage Rating | 125V |
| Operating Temperature Range | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Dielectric Material | Polyamide (PA), Nylon |
| Contact Material | Phosphor Bronze |
Substitute Part Grouping Explanation
Substitution of the obsolete 788800-2 is determined by strict equivalence across the following critical parameters: connector style (D-Sub), connector type (receptacle with female sockets), number of positions (25), number of rows (2), shell size and layout (3/DB, B), mounting type (through-hole, right-angle), termination method (solder), and backset spacing (0.318"/8.08mm). These parameters ensure mechanical and electrical compatibility with mating D-Sub plugs and existing printed circuit board layouts.
Secondary parameters including shell material finish, contact finish, current rating, voltage rating, operating temperature range, and dielectric material are evaluated to determine functional equivalence. Parts meeting all critical parameters are classified as direct substitutes. Parts with variations in secondary parameters are classified as similar substitutes, with specific parameter differences noted for engineering evaluation.
The substitute parts identified fall into two categories:
Direct Substitute (Active Status): 5788800-2 from TE Connectivity AMP Connectors, which maintains identical specifications to the main part with the exception of RoHS compliance status (RoHS Compliant versus RoHS non-compliant).
Similar Substitutes (Active Status): Parts from NorComp Inc. (182 series), Mercury United Electronics, Inc. (622 series), and Amphenol ICC/FCI (Delta D series) that maintain all critical mechanical and electrical parameters while introducing variations in secondary specifications such as shell material finish, current rating, voltage rating, operating temperature range, and dielectric material composition.
Parameter Comparison
| Parameter | 788800-2 (Main) | 5788800-2 | 182-025-213R171 | 182-025-213R531 | 622-025-260-043 | D25S33E4GV00LF | D25S33E4GX00LF | D25S33E6GV00LF |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP | TE Connectivity AMP | NorComp Inc. | NorComp Inc. | Mercury United Electronics | Amphenol ICC (FCI) | Amphenol ICC (FCI) | Amphenol ICC (FCI) |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Shell Size, Connector Layout | 3 (DB, B) | 3 (DB, B) | 3 (DB, B) | 3 (DB, B) | 3 (DB, B) | 3 (DB, B) | 3 (DB, B) | 3 (DB, B) |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated | Steel, Nickel Plated | Steel, Nickel Plated | Steel, Nickel Plated | Steel, Tin-Nickel Plated | Steel, Tin-Nickel Plated | Steel, Tin-Nickel Plated |
| Contact Finish | Gold, Flash | Gold, Flash | Gold, Flash | Gold, Flash | Gold, Flash | Gold, Flash | Gold, Flash | Gold or Gold, GXT™, 30.0µin (0.76µm) |
| Backset Spacing | 0.318" (8.08mm) | 0.318" (8.08mm) | 0.318" (8.08mm) | 0.318" (8.08mm) | 0.318" (8.08mm) | 0.318" (8.08mm) | 0.318" (8.08mm) | 0.318" (8.08mm) |
| Current Rating | 6A | 6A | 5A | 5A | 3A per Contact | 5A per Contact | 5A per Contact | 5A per Contact |
| Voltage Rating | 125V | 125V | Not Specified | Not Specified | Not Specified | 300V | 300V | 300V |
| Operating Temperature Range | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 85°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Dielectric Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Polyamide (PA9T), Nylon 9T | Polyamide (PA9T), Nylon 9T | Polyester Thermoplastic | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Not Specified | Not Specified | Copper Alloy | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Product Status | Obsolete | Active | Active | Active | Active | Active | Active | Active |
| RoHS Status | RoHS non-compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
Engineering Selection Recommendations
Primary Recommendation: 5788800-2
The 5788800-2 from TE Connectivity AMP Connectors is the direct substitute for the obsolete 788800-2. This part maintains identical electrical and mechanical specifications, including 25-position configuration, 2-row layout, shell size 3 (DB, B), through-hole right-angle mounting, solder termination, 6A current rating, 125V voltage rating, and -55°C to 105°C operating temperature range. The primary distinction is RoHS compliance status: 5788800-2 is RoHS Compliant, whereas 788800-2 is RoHS non-compliant. This part is currently active with 5,684 units in stock and is suitable for direct replacement in new designs and legacy system updates.
Secondary Recommendations: Amphenol ICC (FCI) Delta D Series
The D25S33E4GV00LF and D25S33E4GX00LF from Amphenol ICC (FCI) are active substitutes that maintain all critical mechanical parameters. These parts feature enhanced specifications including 300V voltage rating (versus 125V), extended operating temperature range to 125°C (versus 105°C), and RoHS compliance. The D25S33E4GV00LF features mating-side female screwlock flange, while D25S33E4GX00LF features housing/shell flange. Current rating is 5A per contact (versus 6A). Dielectric material is polybutylene terephthalate (PBT) rather than polyamide (PA). These parts are suitable for applications requiring higher voltage ratings or extended temperature performance.
The D25S33E6GV00LF provides similar specifications to D25S33E4GV00LF with contact finish thickness of 30.0µin (0.76µm) and optional gold or GXT™ contact finish. This part is RoHS compliant and active.
Tertiary Recommendations: NorComp Inc. 182 Series
The 182-025-213R171 and 182-025-213R531 from NorComp Inc. are active substitutes with panel mount capability in addition to through-hole mounting. Both parts feature ROHS3 compliance and -55°C to 105°C operating temperature range. Current rating is 5A (versus 6A). Shell material finish is nickel plated (versus tin plated). Dielectric material is polyamide (PA9T), nylon 9T. The 182-025-213R171 includes ground strap feature, while 182-025-213R531 includes board lock feature. These parts are suitable for applications requiring panel mount flexibility.
Quaternary Recommendation: Mercury United Electronics 622 Series
The 622-025-260-043 from Mercury United Electronics, Inc. is an active substitute with board edge mounting capability. This part features mating-side female screwlock flange, board lock, mounting brackets, and shielding. Current rating is 3A per contact (lower than main part). Operating temperature range is -55°C to 85°C (lower than main part). Dielectric material is polyester thermoplastic. This part is suitable for applications requiring shielded configuration and board edge mounting, with consideration for reduced current and temperature ratings.
Frequently Asked Questions (FAQ)
Q: Can the 5788800-2 be used as a direct replacement for the 788800-2 in existing designs?
A: Yes. The 5788800-2 maintains identical electrical and mechanical specifications to the 788800-2, including 25-position configuration, 2-row layout, shell size 3 (DB, B), through-hole right-angle mounting, solder termination, 6A current rating, 125V voltage rating, and -55°C to 105°C operating temperature range. The primary difference is RoHS compliance status. The 5788800-2 is currently active with 5,684 units in stock.
Q: What are the key differences between the TE Connectivity 5788800-2 and the Amphenol ICC D25S33E4GV00LF?
A: Both parts maintain identical mechanical compatibility with 25-position, 2-row, shell size 3 (DB, B) configuration and through-hole right-angle solder termination. The D25S33E4GV00LF features higher voltage rating (300V versus 125V), extended operating temperature range (-55°C to 125°C versus -55°C to 105°C), and lower current rating (5A per contact versus 6A). The D25S33E4GV00LF uses polybutylene terephthalate (PBT) dielectric material versus polyamide (PA) in the 5788800-2. Both are RoHS compliant.
Q: Are the NorComp 182 series parts compatible with the same mating connectors as the 788800-2?
A: Yes. The NorComp 182-025-213R171 and 182-025-213R531 maintain identical shell size 3 (DB, B) configuration, 25-position, 2-row layout, and backset spacing (0.318"/8.08mm) as the 788800-2. These parts are mechanically compatible with standard D-Sub 25-position plugs. The NorComp parts offer additional panel mount capability in addition to through-hole mounting.
Q: What is the significance of the contact finish thickness specification in the D25S33E6GV00LF?
A: The D25S33E6GV00LF specifies contact finish thickness of 30.0µin (0.76µm), whereas the main part 788800-2 specifies flash thickness. Flash thickness is a thin, unspecified gold plating applied for corrosion protection. The 30.0µin specification provides a defined minimum gold thickness for enhanced durability and contact reliability in high-cycle mating applications.
Q: Why does the Mercury United Electronics 622-025-260-043 have a lower current rating than the main part?
A: The 622-025-260-043 specifies 3A per contact current rating versus 6A for the main part 788800-2. This difference reflects design variations in contact geometry, material composition, and thermal characteristics. The 622-025-260-043 is suitable for applications with lower current requirements. Applications requiring 6A current capacity should utilize the 5788800-2, D25S33E4GV00LF, or D25S33E4GX00LF.
Q: What mounting type variations exist among the substitute parts?
A: The main part 788800-2 and most substitutes feature through-hole, right-angle mounting. The NorComp 182 series (182-025-213R171 and 182-025-213R531) offer panel mount capability in addition to through-hole mounting. The Mercury United Electronics 622-025-260-043 features board edge mounting in addition to through-hole mounting. Selection of mounting type depends on specific printed circuit board layout requirements.
Q: Are all substitute parts RoHS compliant?
A: The 5788800-2, D25S33E4GV00LF, D25S33E4GX00LF, D25S33E6GV00LF from TE Connectivity and Amphenol ICC are RoHS Compliant. The NorComp 182-025-213R171 and 182-025-213R531 are ROHS3 Compliant. The Mercury United Electronics 622-025-260-043 is ROHS3 Compliant. The main part 788800-2 is RoHS non-compliant. For applications requiring RoHS compliance, all identified substitutes are suitable.
Q: What dielectric material variations exist among the substitute parts?
A: The main part 788800-2 uses polyamide (PA), nylon dielectric material. The NorComp 182 series uses polyamide (PA9T), nylon 9T. The Mercury United Electronics 622-025-260-043 uses polyester thermoplastic. The Amphenol ICC Delta D series (D25S33E4GV00LF, D25S33E4GX00LF, D25S33E6GV00LF) use polybutylene terephthalate (PBT). These material variations provide different thermal and mechanical properties suitable for different application environments.
Q: What is the operating temperature range difference between the main part and the Amphenol ICC substitutes?
A: The main part 788800-2 operates from -55°C to 105°C. The Amphenol ICC Delta D series (D25S33E4GV00LF, D25S33E4GX00LF, D25S33E6GV00LF) operate from -55°C to 125°C, providing an extended upper temperature limit of 20°C. This extended range is suitable for applications in higher-temperature environments. The Mercury United Electronics 622-025-260-043 operates from -55°C to 85°C, providing a reduced upper temperature limit.
