TE Connectivity 788797-1 D-Sub Receptacle Equivalent & Substitute Parts
Part Overview
The TE Connectivity 788797-1 is a 9-position D-Sub receptacle connector with female sockets, right-angle solder termination, and through-hole mounting. This connector belongs to the AMPLIMITE HD-20 series and is classified as an active product. The connector features a steel tin-plated shell, gold-plated contacts, and board lock functionality. Substitute parts are identified when equivalent electrical and mechanical parameters are required for design flexibility, inventory management, or when the primary part becomes unavailable.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Shell Size, Connector Layout | 1 (DE, E) |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Current Rating | 6A |
| Voltage Rating | 125V |
| Operating Temperature Range | -55°C to 105°C |
| Backset Spacing | 0.318" (8.08mm) |
| Contact Finish | Gold |
| Shell Material, Finish | Steel, Tin Plated |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
Substitute Part Grouping Explanation
Substitute parts for the TE Connectivity 788797-1 are classified based on strict alignment with the following critical parameters:
Primary Substitution Criteria:
- Connector type: Receptacle, female sockets
- Position count: 9 positions
- Shell size and layout: 1 (DE, E)
- Mounting configuration: Through hole, right angle
- Termination method: Solder
- Backset spacing: 0.318" (8.08mm)
- Operating temperature range: -55°C to 105°C minimum
- Current rating: 5A or greater
- Voltage rating: 125V or greater
Direct Equivalent: The TE Connectivity 5788797-1 maintains identical electrical and mechanical specifications with improved RoHS3 compliance status.
Parametric Equivalents: Parts from TE Connectivity (747844-6) and Amphenol ICC (D09S33E4GL00LF, D09S33E4GV00LF, D09S33E4GX00LF) meet core functional requirements with variations in dielectric material, shell finish, and compliance certifications.
Similar Alternatives: NorComp Inc. parts (174-E09-213R001, 174-E09-213R141, 182-009-213R171, 182-009-213R531, 182-009-213R561) provide functional equivalence with differences in backset spacing, current rating, flange features, and compliance status.
Parameter Comparison
| Part Number | Manufacturer | Series | Positions | Mounting Type | Shell Material, Finish | Current Rating (A) | Voltage Rating (V) | Operating Temp (°C) | Backset Spacing | Flange Feature | RoHS Status | Inventory (Pcs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 788797-1 | TE Connectivity | AMPLIMITE HD-20 | 9 | Through Hole, Right Angle | Steel, Tin Plated | 6 | 125 | -55 to 105 | 0.318" (8.08mm) | Mating Side, Female Screwlock (4-40) | RoHS Non-Compliant | 929 |
| 5788797-1 | TE Connectivity | AMPLIMITE HD-20 | 9 | Through Hole, Right Angle | Steel, Tin Plated | 6 | 125 | -55 to 105 | 0.318" (8.08mm) | Mating Side, Female Screwlock (4-40) | ROHS3 Compliant | 2290 |
| 747844-6 | TE Connectivity | AMPLIMITE HD-20 | 9 | Through Hole, Right Angle | Steel, Tin Plated | 6 | 125 | -55 to 105 | 0.318" (8.08mm) | Mating Side, Female Screwlock (4-40) | RoHS Non-Compliant | 1876 |
| 174-E09-213R001 | NorComp Inc. | 174-E, M Series | 9 | Panel Mount, Through Hole, Right Angle | Steel, Nickel Plated | 5 | Not Specified | -50 to 100 | 0.370" (9.40mm) | Housing/Shell (Unthreaded) | ROHS3 Compliant | 951 |
| 174-E09-213R141 | NorComp Inc. | 174-E, M Series | 9 | Panel Mount, Through Hole, Right Angle | Steel, Nickel Plated | 5 | Not Specified | -50 to 100 | 0.370" (9.40mm) | Mating Side, Female Screwlock (4-40) | ROHS3 Compliant | 1056 |
| 182-009-213R171 | NorComp Inc. | 182 | 9 | Panel Mount, Through Hole, Right Angle | Steel, Nickel Plated | 5 | Not Specified | -55 to 105 | 0.318" (8.08mm) | Housing/Shell (4-40) | ROHS3 Compliant | 2344 |
| 182-009-213R531 | NorComp Inc. | 182 | 9 | Panel Mount, Through Hole, Right Angle | Steel, Nickel Plated | 5 | Not Specified | -55 to 105 | 0.318" (8.08mm) | Housing/Shell (4-40) | ROHS3 Compliant | 7246 |
| 182-009-213R561 | NorComp Inc. | 182 | 9 | Panel Mount, Through Hole, Right Angle | Steel, Nickel Plated | 5 | Not Specified | -55 to 105 | 0.318" (8.08mm) | Mating Side, Female Screwlock (4-40) | ROHS3 Compliant | 7453 |
| D09S33E4GL00LF | Amphenol ICC (FCI) | Delta D | 9 | Through Hole, Right Angle | Steel, Tin-Nickel Plated | 5 | 300 | -55 to 125 | 0.318" (8.08mm) | Housing/Shell (M3) | RoHS Compliant | 1421 |
| D09S33E4GV00LF | Amphenol ICC (FCI) | Delta D | 9 | Through Hole, Right Angle | Steel, Tin-Nickel Plated | 5 | 300 | -55 to 125 | 0.318" (8.08mm) | Mating Side, Female Screwlock (4-40) | ROHS3 Compliant | 6905 |
| D09S33E4GX00LF | Amphenol ICC (FCI) | Delta D | 9 | Through Hole, Right Angle | Steel, Tin-Nickel Plated | 5 | 300 | -55 to 125 | 0.318" (8.08mm) | Housing/Shell (4-40) | ROHS3 Compliant | 3076 |
Engineering Selection Recommendations
Direct Replacement (Highest Compatibility):
The TE Connectivity 5788797-1 is the direct equivalent to 788797-1 with identical electrical and mechanical specifications. This part is ROHS3 compliant, addressing regulatory requirements while maintaining full functional compatibility. Selection of 5788797-1 is appropriate when RoHS compliance is a design requirement.
Parametric Equivalents (TE Connectivity Series):

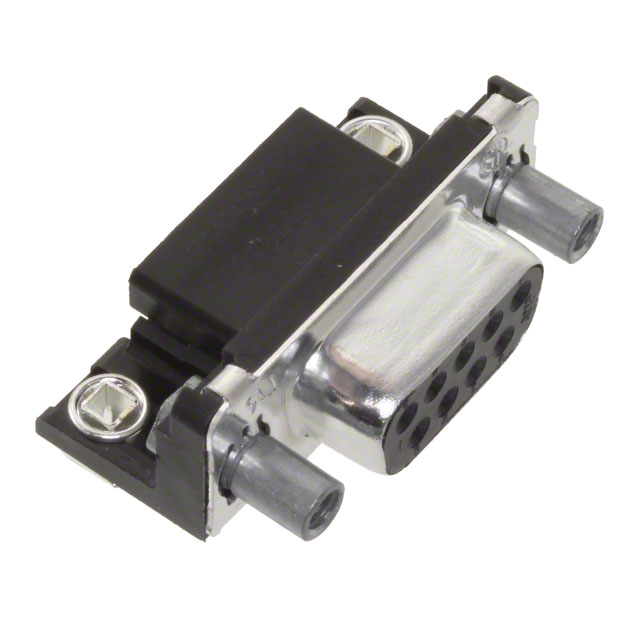

The TE Connectivity 747844-6 maintains the AMPLIMITE HD-20 series designation and shares identical core specifications with 788797-1, including 6A current rating, 125V voltage rating, and 0.318" backset spacing. This part is suitable for applications where series continuity is preferred, though it retains RoHS non-compliant status.
Amphenol ICC Delta D Series (Enhanced Performance):
Parts D09S33E4GL00LF, D09S33E4GV00LF, and D09S33E4GX00LF offer extended voltage rating (300V), higher operating temperature ceiling (125°C), and ROHS3 compliance. These parts are suitable for applications requiring enhanced electrical performance or regulatory compliance. Current rating is 5A per contact, which is lower than the primary part's 6A rating. Flange feature variations exist among these three parts.
NorComp Inc. 174-E Series (Alternative Geometry):
Parts 174-E09-213R001 and 174-E09-213R141 provide functional equivalence with panel mount capability and nickel-plated steel shells. These parts feature 0.370" backset spacing, which differs from the primary part's 0.318" spacing. Operating temperature range is -50°C to 100°C, which is narrower than the primary part. ROHS3 compliance is provided. These parts are suitable for applications where panel mounting is required and backset spacing tolerance permits the variation.
NorComp Inc. 182 Series (Matched Geometry):
Parts 182-009-213R171, 182-009-213R531, and 182-009-213R561 maintain the 0.318" backset spacing and -55°C to 105°C operating temperature range of the primary part. These parts feature nickel-plated steel shells and ROHS3 compliance. Current rating is 5A, which is lower than the primary part. Flange features and mounting configurations vary among these three parts. These parts are suitable for applications where backset spacing and temperature range alignment is critical.
Frequently Asked Questions (FAQ)
Q: Can the TE Connectivity 5788797-1 be used as a direct replacement for 788797-1?
A: Yes. The 5788797-1 is electrically and mechanically identical to 788797-1, with the primary difference being ROHS3 compliance status. Both parts share the same AMPLIMITE HD-20 series designation, 9-position configuration, 6A current rating, 125V voltage rating, and 0.318" backset spacing. The 5788797-1 is suitable for direct substitution in all applications where the 788797-1 was originally specified.
Q: What are the key differences between TE Connectivity and Amphenol ICC substitute parts?
A: TE Connectivity 747844-6 maintains the AMPLIMITE HD-20 series and 6A current rating. Amphenol ICC Delta D series parts (D09S33E4GL00LF, D09S33E4GV00LF, D09S33E4GX00LF) offer 300V voltage rating and -55°C to 125°C operating temperature range, but feature 5A per contact current rating. Amphenol ICC parts are available with ROHS3 compliance. Flange feature configurations differ between manufacturers.
Q: Are NorComp Inc. parts suitable substitutes for the 788797-1?
A: NorComp Inc. parts provide functional equivalence with specific parameter variations. The 174-E series features 0.370" backset spacing and -50°C to 100°C operating temperature, which differ from the primary part. The 182 series maintains 0.318" backset spacing and -55°C to 105°C operating temperature, matching the primary part's geometry and thermal range. Current rating for all NorComp parts is 5A, which is lower than the primary part's 6A rating. NorComp parts are suitable when these parameter variations are acceptable for the application.
Q: What is the significance of backset spacing in connector substitution?
A: Backset spacing defines the distance from the connector mounting surface to the contact plane. The primary part 788797-1 specifies 0.318" (8.08mm) backset spacing. NorComp 174-E series parts feature 0.370" (9.40mm) spacing, which is not interchangeable without PCB redesign. NorComp 182 series and Amphenol ICC Delta D series maintain 0.318" spacing, ensuring mechanical compatibility with existing PCB layouts.
Q: How does current rating affect part selection?
A: The primary part 788797-1 is rated for 6A continuous current. Substitute parts from NorComp Inc. and Amphenol ICC are rated for 5A per contact. In applications where current density approaches or exceeds 5A per contact, the primary part or TE Connectivity 5788797-1 and 747844-6 are required. For applications operating below 5A per contact, lower-rated substitutes are functionally adequate.
Q: What compliance certifications should be considered for new designs?
A: The primary part 788797-1 is RoHS non-compliant. For new designs subject to RoHS regulations, the TE Connectivity 5788797-1 (ROHS3 compliant), Amphenol ICC Delta D series (ROHS3 compliant), and NorComp Inc. 174-E and 182 series (ROHS3 compliant) are appropriate selections. Compliance status is provided in the parameter comparison table.
Q: Can parts with different flange features be interchanged?
A: Flange features determine the mechanical interface and mounting method. The primary part 788797-1 features mating side female screwlock (4-40). Substitute parts offer variations including housing/shell unthreaded, housing/shell (4-40), housing/shell (M3), and mating side female screwlock (4-40). Parts with different flange features require different mounting hardware and may not be directly interchangeable without mechanical redesign.
Q: What is the impact of shell material and finish on connector performance?
A: The primary part features steel tin-plated shell. Substitute parts offer steel tin-nickel plated or steel nickel-plated finishes. Shell material and finish affect corrosion resistance, contact resistance, and environmental performance. Tin-plated shells provide lower contact resistance, while nickel-plated shells offer enhanced corrosion resistance in harsh environments. Selection depends on application environmental requirements.
Q: Are there inventory considerations when selecting substitute parts?
A: Yes. Inventory levels vary significantly among substitute parts. The primary part 788797-1 has 929 units in stock. The TE Connectivity 5788797-1 has 2290 units available. NorComp 182-009-213R531 has the highest inventory at 7246 units. Amphenol ICC D09S33E4GV00LF has 6905 units. Inventory availability may influence part selection for high-volume production requirements.
