TE Connectivity 787653-1 D-Sub Connector Equivalent & Substitute Parts

Part Overview

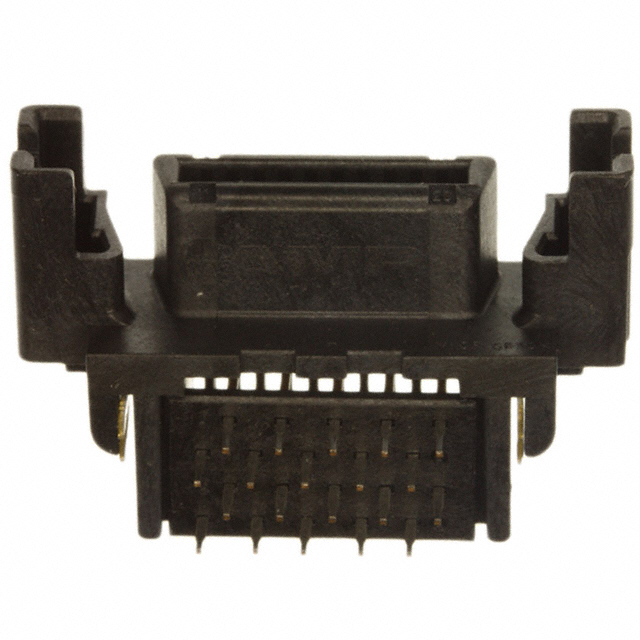

The TE Connectivity 787653-1 is a 20-position receptacle connector for board-to-board applications with right-angle solder termination. This connector belongs to the CHAMP .050 I series and features outer shroud contacts with board lock and latch lock capabilities. The part is classified as obsolete, making identification of equivalent substitute components necessary for ongoing design support, maintenance, and procurement activities.

Substiute Parts

787653-1

TE Connectivity AMP ConnectorsIn Stock: 1205787653-1 Datasheet

Current PartRFQ

787653-3

TE Connectivity AMP ConnectorsIn Stock: 852787653-3 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 787653-1 is determined by the following critical parameters that must remain constant across equivalent components:

• Connector Type & Configuration: Receptacle, 20-position, 2-row arrangement
• Mounting & Termination: Through-hole, right-angle orientation with solder termination
• Electrical Interface: Board-to-board connectivity with outer shroud contacts
• Contact System: Gold finish at 30.0µin (0.76µm) thickness
• Mechanical Features: Board lock and latch lock mechanisms
• Series Compatibility: CHAMP .050 I series designation

The substitute part 787653-3 maintains all critical electrical and mechanical parameters while introducing SCA-2 board-to-board specification compliance and improved regulatory status.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: TE Connectivity 787653-3

The 787653-3 serves as the direct substitute for the 787653-1 based on electrical and mechanical equivalence within the CHAMP .050 I series. Both connectors maintain identical pin count, row configuration, mounting orientation, and contact specifications.

Regulatory Compliance Considerations:

The 787653-3 provides enhanced regulatory compliance status compared to the main part. It carries ROHS3 compliance certification and REACH unaffected status, whereas the 787653-1 is not RoHS applicable and is REACH affected. For applications subject to environmental or procurement regulations, the 787653-3 presents a more favorable compliance profile.

Feature Differentiation:

The 787653-1 includes both board lock and latch lock features, while the 787653-3 incorporates board lock functionality. The 787653-3 additionally specifies SCA-2 board-to-board compatibility, indicating enhanced standardization for specific application environments.

Availability & Inventory:

Both parts are classified as obsolete. Current inventory availability shows 1146 pieces of the 787653-1 and 841 pieces of the 787653-3 in stock as new original components.

Frequently Asked Questions (FAQ)

Q: Can the 787653-3 directly replace the 787653-1 in existing designs?

A: Yes. Both connectors maintain identical electrical and mechanical specifications within the CHAMP .050 I series, including 20-position configuration, 2-row arrangement, through-hole right-angle solder termination, and gold contact finish at 30.0µin thickness. The connectors are functionally equivalent for board-to-board applications.

Q: What is the difference between the latch lock and board lock features?

A: The 787653-1 includes both board lock and latch lock mechanisms, while the 787653-3 includes board lock only. Both features provide mechanical retention; the specific requirement depends on application-level design specifications.

Q: Does the SCA-2 designation on the 787653-3 affect compatibility?

A: The SCA-2 designation indicates compliance with a specific board-to-board standard. This does not prevent substitution; it indicates the 787653-3 meets additional standardization criteria. Compatibility is maintained across both parts for standard board-to-board applications.

Q: Are there RoHS or REACH compliance implications for substitution?

A: The 787653-3 is ROHS3 compliant and REACH unaffected, while the 787653-1 is not RoHS applicable and is REACH affected. For applications requiring environmental compliance certification, the 787653-3 is the appropriate selection.

Q: What is the moisture sensitivity level for these connectors?

A: Both the 787653-1 and 787653-3 carry MSL 1 (Unlimited) classification, indicating no moisture sensitivity restrictions for storage or handling.

Q: Are both parts still in production?

A: Both connectors are classified as obsolete. Selection between them should be based on regulatory compliance requirements and specific feature needs rather than production status.
