TE Connectivity 787616-6 USB-A Receptacle Connector Equivalent & Substitute Parts

Part Overview

The TE Connectivity 787616-6 is a USB-A (USB TYPE-A) receptacle connector with 4 positions, designed for through-hole, right-angle mounting applications. This connector features a shielded design with board lock functionality and solder termination. The part is classified as obsolete, making equivalent and substitute parts necessary for ongoing production, maintenance, and design continuity. The 787616-6 operates across a temperature range of -55°C to 85°C with a current rating of 1A per contact and supports 1500 mating cycles.

Substiute Parts

787616-6

TE Connectivity AMP ConnectorsIn Stock: 1130787616-6 Datasheet

Current PartRFQ

292303-6

TE Connectivity AMP ConnectorsIn Stock: 6662292303-6 Datasheet

DirectRFQ

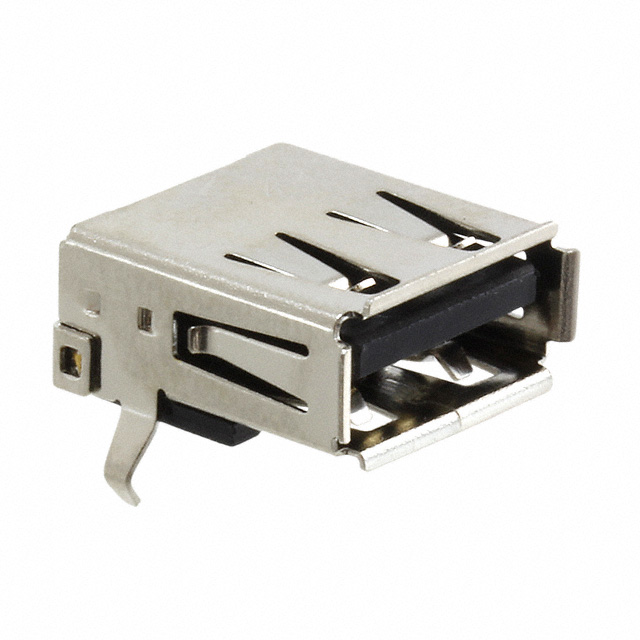

SUSBX

Switchcraft Inc.In Stock: 1099SUSBX Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 787616-6 are identified based on strict parametric equivalence across the following critical dimensions:

Core Compatibility Parameters:

• Connector Type: USB-A (USB TYPE-A)
• Number of Contacts: 4
• Gender: Receptacle
• Mounting Type: Through Hole, Right Angle
• Mounting Feature: Horizontal
• Termination: Solder
• Shielding: Shielded
• Features: Board Lock
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Number of Ports: 1
• Mating Cycles: 1500

Electrical Compatibility Parameters:

• Current Rating: 1A per Contact
• Voltage - Rated: 30VAC
• Operating Temperature: -55°C ~ 85°C

Substitute parts meeting all core compatibility parameters and electrical specifications are classified as direct functional equivalents. Parts with identical mechanical and electrical characteristics but different product status or compliance certifications are listed as active alternatives.

Parameter Comparison

Engineering Selection Recommendations

Primary Recommendation: TE Connectivity 292303-6

The TE Connectivity 292303-6 is the preferred substitute for the 787616-6. This part maintains complete parametric equivalence across all core mechanical and electrical specifications while offering significant advantages in product lifecycle status and regulatory compliance. The 292303-6 is classified as active, ensuring ongoing availability and manufacturer support. The part carries ROHS3 compliance and REACH Unaffected status, meeting current regulatory requirements. The 292303-6 includes USB 2.0 specification designation, providing enhanced documentation and standardization. Shell material differs (stainless steel versus copper alloy), but both materials satisfy the UL94 V-0 flammability requirement and provide equivalent shielding performance. Current inventory of 6580 units supports production continuity.

Secondary Alternative: Switchcraft Inc. SUSBX

The Switchcraft SUSBX provides parametric equivalence for mechanical and mounting characteristics. This part shares identical connector type, contact count, gender, mounting configuration, and board lock features. The SUSBX is ROHS3 compliant and REACH Unaffected. However, electrical specifications (current rating and voltage rating) are not provided for this part, and product status is obsolete. The SUSBX is suitable for applications where electrical parameter documentation is available through alternative sources or where legacy system compatibility is required. Inventory availability is 1003 units.

Compliance Considerations

The 787616-6 is RoHS non-compliant with vendor-undefined REACH status. Both substitute parts (292303-6 and SUSBX) are ROHS3 compliant and REACH Unaffected, supporting transition to current regulatory frameworks. For new designs or production requiring regulatory compliance, the 292303-6 is the optimal selection.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 292303-6 directly replace the 787616-6 in existing designs?

A: Yes. The 292303-6 maintains complete parametric equivalence across all core mechanical specifications (connector type, contact count, gender, mounting type, mounting feature, termination, board lock, flammability rating, and insulation color) and electrical specifications (current rating, voltage rating, operating temperature, and mating cycles). The primary difference is product status (active versus obsolete) and regulatory compliance (ROHS3 compliant versus non-compliant). Shell material differs (stainless steel versus copper alloy), but both materials provide equivalent shielding performance and satisfy UL94 V-0 requirements.

Q: What are the key differences between the 787616-6 and the Switchcraft SUSBX?

A: Both parts share identical mechanical and mounting characteristics. The SUSBX is ROHS3 compliant and REACH Unaffected, whereas the 787616-6 is RoHS non-compliant. The SUSBX does not provide documented electrical specifications (current rating and voltage rating are not specified). Both parts are classified as obsolete. The SUSBX uses copper alloy shell material, matching the 787616-6. Contact finish differs (gold versus gold or gold-palladium).

Q: Why is the 292303-6 recommended over the SUSBX?

A: The 292303-6 is classified as active, ensuring ongoing manufacturer support and availability. The 292303-6 provides complete electrical specification documentation (1A per contact, 30VAC rated). The 292303-6 includes USB 2.0 specification designation, providing enhanced standardization and documentation. Current inventory of 6580 units supports production continuity. The SUSBX is obsolete with incomplete electrical specifications.

Q: Are there packaging differences between these parts?

A: The 787616-6 packaging is not specified. The 292303-6 is supplied in bulk packaging. The SUSBX is supplied in bulk packaging. Packaging differences do not affect functional compatibility or electrical performance.

Q: What is the significance of the shell material difference between the 787616-6 and 292303-6?

A: The 787616-6 uses copper alloy shell material, while the 292303-6 uses stainless steel. Both materials provide shielding functionality and satisfy the UL94 V-0 flammability requirement. Stainless steel offers enhanced corrosion resistance compared to copper alloy. Both materials are suitable for the specified operating temperature range (-55°C to 85°C) and mating cycle count (1500 cycles).

Q: Is the USB 2.0 specification designation on the 292303-6 a functional difference?

A: The USB 2.0 specification designation on the 292303-6 indicates compliance with USB 2.0 standards and provides enhanced documentation. The 787616-6 does not include specification designation. Both parts maintain identical electrical characteristics (1A per contact, 30VAC rated) and mechanical configuration. The USB 2.0 designation on the 292303-6 supports standardization and documentation clarity without altering functional compatibility.

Q: Can the SUSBX be used if electrical specifications are not critical to the application?

A: The SUSBX maintains complete mechanical and mounting equivalence to the 787616-6. If electrical specifications are not critical to the application and legacy system compatibility is required, the SUSBX is functionally equivalent. However, the SUSBX is classified as obsolete, and the 292303-6 is recommended for new designs and ongoing production due to active product status and complete specification documentation.

Q: What is the moisture sensitivity level for these connectors?

A: All three parts (787616-6, 292303-6, and SUSBX) are classified as MSL 1 (Unlimited), indicating no moisture sensitivity restrictions. These connectors do not require special moisture control during storage, handling, or assembly.

Q: Are there any ECCN or HTSUS differences between these parts?

A: All three parts share identical ECCN classification (EAR99) and HTSUS code (8536.69.4040). These classifications do not affect functional compatibility or substitution eligibility.
