TE Connectivity 787362-9 D-Type Receptacle Connector: Equivalent & Substitute Parts

Part Overview

The TE Connectivity 787362-9 is a 100-position D-Type receptacle connector featuring female sockets with right-angle board edge mounting and solder termination. This connector is part of the AMPLIMITE .050 III series and is designed for applications requiring high-density signal interconnection with board lock and shielding features. The part maintains active product status with 1165 units in current inventory.

Substitute parts are identified to address inventory availability, compliance requirements, or alternative sourcing needs while maintaining full electrical and mechanical compatibility within the specified parameter envelope.

Substiute Parts

787362-9

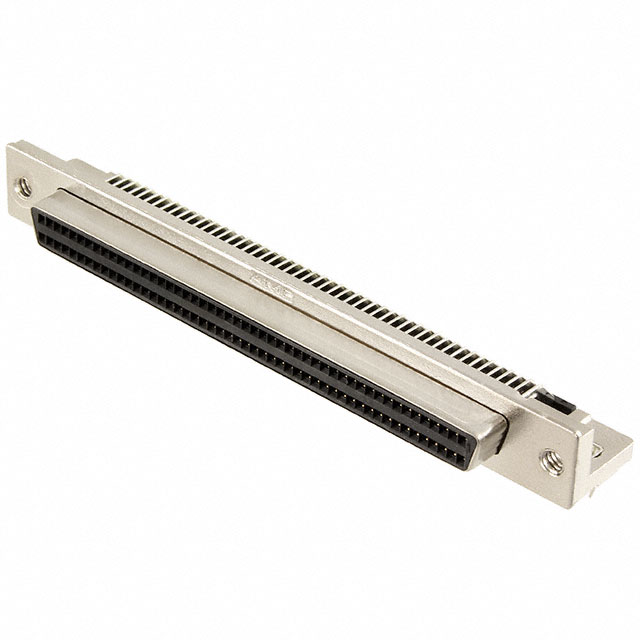

TE Connectivity AMP ConnectorsIn Stock: 1201787362-9 Datasheet

Current PartRFQ

5787362-9

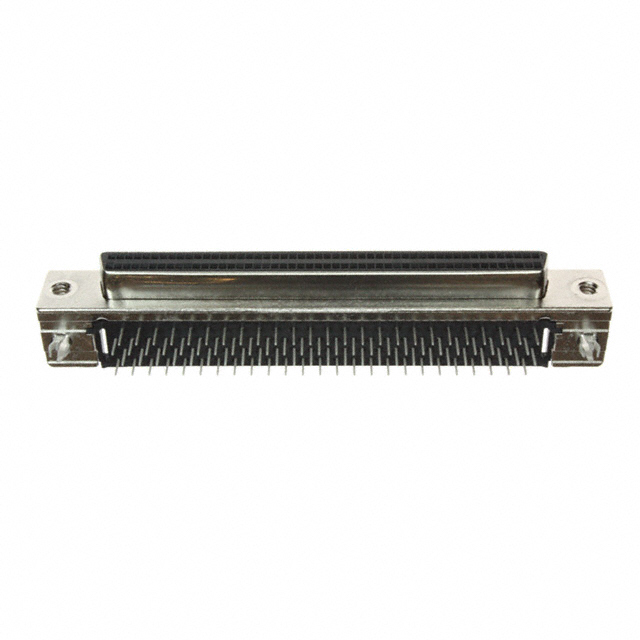

TE Connectivity AMP ConnectorsIn Stock: 14375787362-9 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for D-Type receptacle connectors is determined by strict equivalence across all electrical and mechanical parameters. The following criteria establish substitution validity:

Electrical Parameters: Current rating (1A), voltage rating (30V), and contact material (Phosphor Bronze with gold finish) must remain identical to ensure signal integrity and current-carrying capacity.

Mechanical Parameters: Position count (100), row configuration (2 rows), pitch specification (0.050 x 0.100), mounting type (board edge, through hole, right angle), and termination method (solder) must be unchanged.

Physical Specifications: Shell material (steel, nickel plated), flange feature (4-40), dielectric material (thermoplastic), and color (black) must match exactly.

Environmental & Compliance: Operating temperature range (-55°C ~ 105°C), flammability rating (UL94 V-0), and moisture sensitivity level (1) establish the environmental envelope for substitution.

The substitute part 5787362-9 meets all these criteria and is therefore a direct equivalent.

Parameter Comparison

Engineering Selection Recommendations

Both the 787362-9 and 5787362-9 are active products manufactured by TE Connectivity and are electrically and mechanically equivalent across all specified parameters. Selection between these parts is based on compliance and sourcing considerations:

787362-9 Selection Criteria: This part is designated as "Not applicable" for RoHS status and "REACH Affected" for regulatory compliance. Selection is appropriate for applications where RoHS compliance is not a requirement or where REACH-affected materials are acceptable. Current inventory of 1165 units supports immediate availability.

5787362-9 Selection Criteria: This part carries RoHS Compliant certification, making it suitable for applications requiring RoHS compliance. REACH status is listed as "Vendor Undefined," which may require clarification for applications with strict REACH compliance mandates. Current inventory of 1352 units provides enhanced availability.

Both parts maintain identical electrical performance (1A at 30V), mechanical configuration (100-position, 2-row, 0.050 pitch), and environmental ratings (UL94 V-0, -55°C ~ 105°C operating range). Selection should be driven by regulatory requirements specific to the end application and geographic market.
