TE Connectivity 787362-5 D-Type Receptacle Connector: Equivalent & Substitute Parts

Part Overview

The TE Connectivity 787362-5 is a 50-position D-Type receptacle connector featuring female sockets with right-angle board edge mounting and solder termination. This connector is part of the AMPLIMITE .050 III series and is designed for applications requiring shielded, board-locked D-sub connectivity with through-hole PCB integration. The part maintains active product status with 787 units in current inventory. Substitute parts are identified to address supply chain requirements, compliance updates, or inventory optimization while maintaining full electrical and mechanical compatibility.

Substiute Parts

787362-5

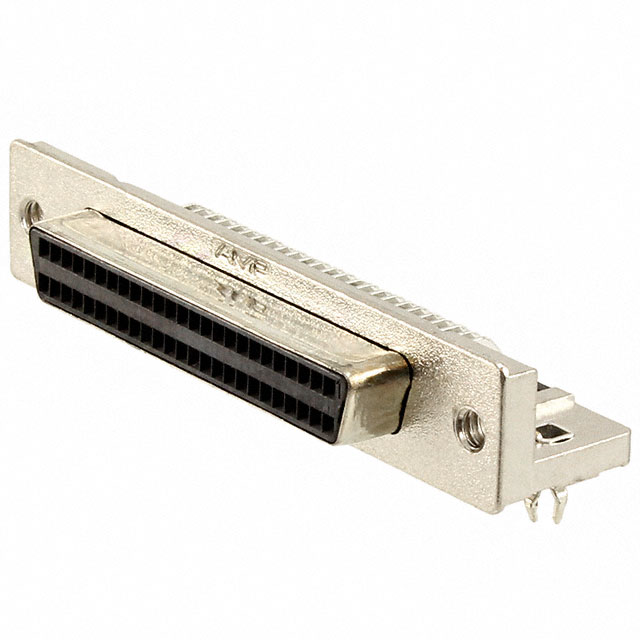

TE Connectivity AMP ConnectorsIn Stock: 809787362-5 Datasheet

Current PartRFQ

5787362-5

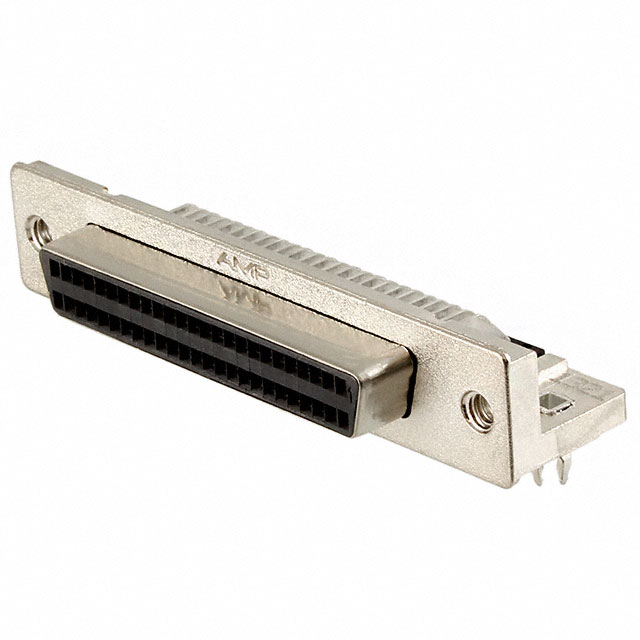

TE Connectivity AMP ConnectorsIn Stock: 12915787362-5 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution compatibility for the TE Connectivity 787362-5 is determined by strict equivalence across all electrical and mechanical parameters. The substitute part 5787362-5 qualifies as a direct equivalent based on the following criteria:

Electrical Parameters (Must Match): Current Rating (1A), Voltage Rating (30V), Contact Type (Signal), Contact Material (Phosphor Bronze), Contact Finish (Gold)

Mechanical Parameters (Must Match): Connector Style (D-Type), Connector Type (Receptacle, Female Sockets), Number of Positions (50), Number of Rows (2), Shell Size and Connector Layout (0.050 Pitch x 0.100 Row to Row), Mounting Type (Board Edge, Through Hole, Right Angle), Termination (Solder), Shell Material and Finish (Steel, Nickel Plated), Flange Feature (Housing/Shell 4-40), Backset Spacing (0.146" / 3.71mm)

Environmental Parameters (Must Match): Operating Temperature Range (-55°C to 105°C), Material Flammability Rating (UL94 V-0), Dielectric Material (Thermoplastic), Moisture Sensitivity Level (1 - Unlimited)

Series Designation (Must Match): AMPLIMITE .050 III

All parameters listed above are identical between the main part and substitute part, confirming full interchangeability for component selection and PCB assembly applications.

Parameter Comparison

Engineering Selection Recommendations

Both the 787362-5 and 5787362-5 are active products from TE Connectivity AMP Connectors and are fully interchangeable for D-Type receptacle connector applications requiring 50-position, female socket, right-angle board edge mounting with solder termination.

Compliance Consideration: The substitute part 5787362-5 carries ROHS3 compliance status, while the main part 787362-5 is RoHS non-compliant. For applications subject to RoHS3 regulatory requirements, the substitute part 5787362-5 is the appropriate selection. For applications without RoHS3 mandates, either part satisfies the electrical and mechanical requirements identically.

Inventory and Availability: The substitute part 5787362-5 maintains higher inventory availability (1257 units) compared to the main part (787 units), supporting supply chain continuity for high-volume production requirements.

Tariff Classification: Minor differences exist in HTSUS classification (8536.69.4040 for 787362-5 versus 8536.69.4030 for 5787362-5), reflecting potential differences in tariff treatment for import/export purposes.

All other electrical, mechanical, and environmental specifications are identical, ensuring direct substitution without design modification or PCB layout changes.

Frequently Asked Questions (FAQ)

Q: Are the 787362-5 and 5787362-5 connectors mechanically interchangeable?

A: Yes. Both connectors share identical mechanical specifications including 50-position configuration, 0.050 pitch x 0.100 row-to-row spacing, right-angle board edge mounting, solder termination, and 0.146" backset spacing. PCB footprints and mounting hole patterns are identical.

Q: What is the primary difference between these two part numbers?

A: The primary difference is RoHS compliance status. The 5787362-5 is ROHS3 compliant, while the 787362-5 is RoHS non-compliant. All electrical and mechanical parameters are identical.

Q: Can I use the 5787362-5 as a direct replacement for the 787362-5 in existing designs?

A: Yes. The 5787362-5 is a direct substitute with identical electrical ratings (1A current, 30V voltage), operating temperature range (-55°C to 105°C), and mechanical specifications. No design changes are required.

Q: Are there any differences in contact material or finish between these parts?

A: No. Both parts feature phosphor bronze contacts with gold plating, identical shell material (steel, nickel plated), and identical dielectric material (thermoplastic).

Q: Which part should I specify for new designs?

A: For applications requiring RoHS3 compliance, specify 5787362-5. For applications without RoHS3 requirements, either part is acceptable. Both maintain active product status and identical performance characteristics.

Q: Do these connectors support the same current and voltage ratings?

A: Yes. Both the 787362-5 and 5787362-5 are rated for 1A current and 30V voltage with identical operating temperature ranges of -55°C to 105°C.

Q: Are the packaging specifications identical?

A: Both parts are supplied in bulk packaging. Inventory levels differ (787 units for 787362-5 and 1257 units for 5787362-5), but packaging format and handling requirements are identical.

Q: What is the significance of the AMPLIMITE .050 III series designation?

A: This series designation indicates the connector family, pitch specification (0.050"), and generation (III). Both parts belong to this identical series, confirming full compatibility within the AMPLIMITE connector ecosystem.
