Part Overview

The TE Connectivity AMP Connectors 787254-1 is a 68 Position Receptacle Connector with right-angle solder termination, designed for panel mount through-hole applications. This connector features outer shroud contacts, board guide, board lock, and shielding in the CHAMP .031 series.

The 787254-1 carries an obsolete product status, making identification of equivalent substitute parts essential for ongoing design support, maintenance, and procurement activities. Active equivalent models provide continued availability and updated compliance certifications.

Substiute Parts

787254-1

TE Connectivity AMP ConnectorsIn Stock: 1124787254-1 Datasheet

Current PartRFQ

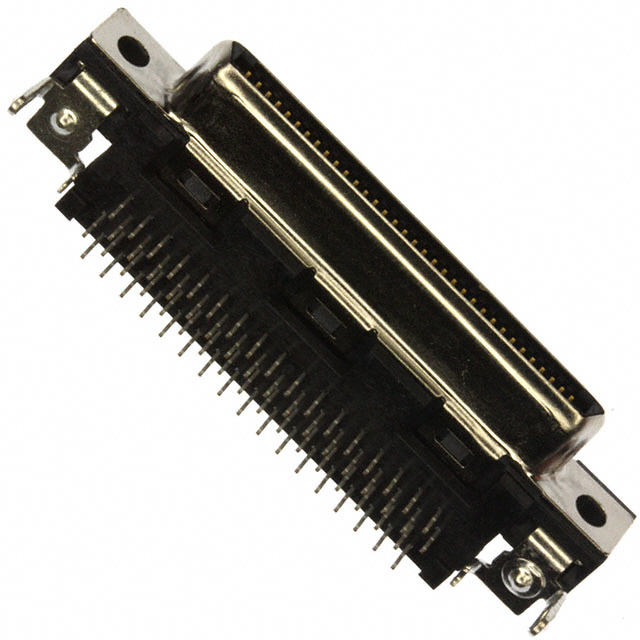

5796055-1

TE Connectivity AMP ConnectorsIn Stock: 23125796055-1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 787254-1 is determined by strict equivalence across all electrical and mechanical parameters. The substitute part 5796055-1 qualifies as a direct equivalent based on the following criteria:

Electrical Parameters:

• Identical connector type (Receptacle)
• Identical position count (68 positions)
• Identical row configuration (2 rows)
• Identical contact finish specification (Gold, 30.0µin thickness)

Mechanical Parameters:

• Identical mounting configuration (Panel Mount, Through Hole, Right Angle)
• Identical termination method (Solder)
• Identical connector style (Outer Shroud Contacts)
• Identical series designation (CHAMP .031)
• Identical flange feature (Housing/Shell M2.6)

Functional Features:

• Identical feature set (Board Guide, Board Lock, Shielded)
• Identical moisture sensitivity level (MSL 1)

The substitute part maintains full functional and mechanical compatibility with the original specification while offering improved product status and compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

The 5796055-1 serves as the direct equivalent substitute for the obsolete 787254-1 based on complete electrical and mechanical parameter equivalence.

Product Status Consideration: The 787254-1 is classified as obsolete, while the 5796055-1 maintains active product status. This distinction is significant for long-term supply chain planning and design continuity.

Compliance Advantage: The 5796055-1 provides ROHS3 compliance, whereas the 787254-1 is RoHS non-compliant. Additionally, the 5796055-1 carries REACH Unaffected status compared to the REACH Affected designation of the 787254-1. These compliance improvements align with current regulatory requirements.

Availability: The 5796055-1 demonstrates higher inventory availability (2300 units) relative to the 787254-1 (1049 units), supporting procurement reliability.

Functional Compatibility: All electrical, mechanical, and feature specifications remain identical between the two parts, ensuring direct interchangeability in existing designs and applications.
