TE Connectivity 787190-8 D-Type Receptacle Connector: Equivalent & Substitute Parts

Part Overview

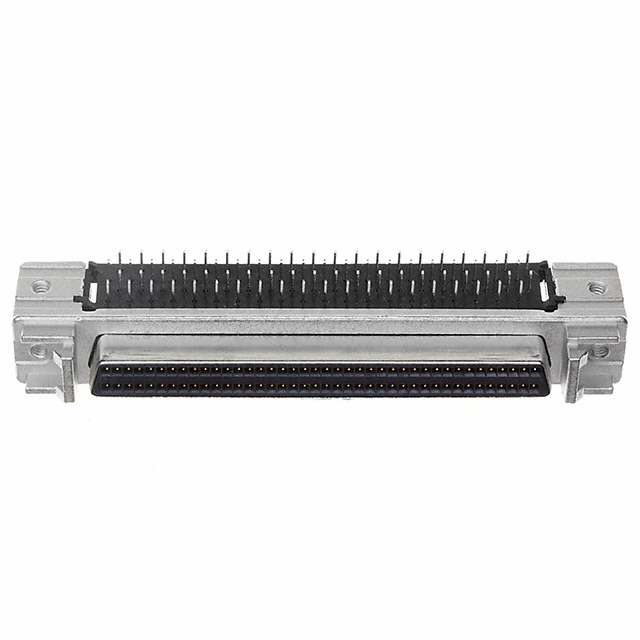

The TE Connectivity 787190-8 is an 80-position D-Type receptacle connector featuring female sockets with right-angle board edge mounting and solder termination. This connector is part of the AMPLIMITE .050 III series and is designed for applications requiring shielded signal transmission with a 30V rating and 1A current capacity per contact. The product maintains Active status with 933 pieces in current inventory.

Substitute parts are identified to address inventory availability, compliance requirements, or procurement lead time considerations while maintaining full electrical and mechanical compatibility.

Substiute Parts

787190-8

TE Connectivity AMP ConnectorsIn Stock: 1011787190-8 Datasheet

Current PartRFQ

5787190-8

TE Connectivity AMP ConnectorsIn Stock: 20425787190-8 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for D-Type receptacle connectors is determined by strict equivalence across all electrical and mechanical parameters. The 787190-8 and its identified substitute must match in the following critical parameters:

Electrical Compatibility:

• Connector type (Receptacle, Female Sockets)
• Number of positions (80)
• Number of rows (2)
• Current rating (1A per contact)
• Voltage rating (30V)
• Contact material and finish (Phosphor Bronze with Gold plating)

Mechanical Compatibility:

• Connector style (D-Type)
• Shell size and pitch (0.050 Pitch x 0.100 Row to Row)
• Mounting configuration (Board Edge, Through Hole, Right Angle)
• Termination method (Solder)
• Flange features (Housing/Shell with 2-56 mounting; Latchblocks, Rails)
• Backset spacing (0.146" / 3.71mm)

Environmental & Regulatory Compliance:

• Operating temperature range (-55°C to 105°C)
• Material flammability rating (UL94 V-0)
• Shielding requirement
• Series designation (AMPLIMITE .050 III)

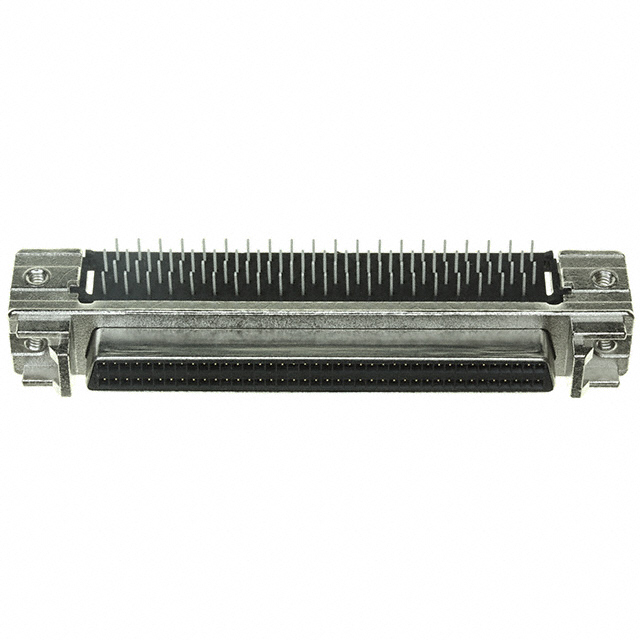

The substitute part 5787190-8 meets all specified parameters and is therefore a direct equivalent.

Parameter Comparison

Engineering Selection Recommendations

Both the 787190-8 and 5787190-8 are Active products from TE Connectivity AMP Connectors and are electrically and mechanically equivalent. Selection between these parts should be based on the following factors:

Compliance Considerations: The 5787190-8 carries RoHS Compliant status, whereas the 787190-8 is marked as Not applicable for RoHS. Applications subject to RoHS directives should specify the 5787190-8. Both parts are subject to REACH regulations, with the 787190-8 marked as REACH Affected and the 5787190-8 as Vendor Undefined.

Inventory Availability: The 5787190-8 maintains higher inventory levels (1972 pieces) compared to the 787190-8 (933 pieces), making it suitable for applications with extended procurement windows or high-volume requirements.

Regulatory Alignment: For applications requiring explicit RoHS compliance documentation, the 5787190-8 is the appropriate selection. Both parts meet UL94 V-0 flammability requirements and operate across the identical temperature range of -55°C to 105°C.

Direct Substitution: The 5787190-8 functions as a direct substitute for the 787190-8 in all electrical, mechanical, and environmental applications without modification to circuit design, PCB layout, or mating connector specifications.

Frequently Asked Questions (FAQ)

Q: Can the 5787190-8 be used as a direct replacement for the 787190-8 in existing designs?

A: Yes. The 5787190-8 is a direct equivalent to the 787190-8. All electrical parameters (80 positions, 1A current rating, 30V voltage rating), mechanical specifications (0.050 pitch, right-angle board edge mounting, solder termination), and environmental ratings (-55°C to 105°C, UL94 V-0) are identical. No design modifications are required.

Q: What is the difference between the RoHS status of these two parts?

A: The 787190-8 is marked as Not applicable for RoHS, while the 5787190-8 is RoHS Compliant. For applications subject to RoHS directives or customer requirements, the 5787190-8 should be specified. Both parts meet all other regulatory requirements identically.

Q: Are the connector pinouts identical between 787190-8 and 5787190-8?

A: Yes. Both connectors are 80-position D-Type receptacles with identical pin configurations, spacing (0.050 pitch x 0.100 row to row), and contact arrangements. They are fully interchangeable at the connector interface level.

Q: What is the significance of the base product numbers 787190 and 5787190?

A: The base product numbers indicate the connector family designation. The 787190-8 and 5787190-8 share the same functional design within the AMPLIMITE .050 III series but may differ in manufacturing batches, compliance certifications, or supply chain sourcing. Both are current production parts.

Q: Can these connectors be used interchangeably in the same PCB assembly?

A: Yes. Both connectors have identical mounting specifications (Board Edge, Through Hole, Right Angle), backset spacing (0.146" / 3.71mm), and flange features (Housing/Shell with 2-56 mounting, Latchblocks, Rails). PCB footprints and assembly processes require no modification.

Q: What is the current rating per contact, and does it differ between the two parts?

A: Both the 787190-8 and 5787190-8 are rated for 1A per contact. This specification is identical across both parts.

Q: Are there any temperature or environmental performance differences?

A: No. Both connectors operate across the identical temperature range of -55°C to 105°C and share the same material specifications (Steel shell with Nickel plating, Phosphor Bronze contacts with Gold finish, Thermoplastic dielectric, UL94 V-0 flammability rating). Environmental performance is equivalent.

Q: What packaging format is used for both parts?

A: Both the 787190-8 and 5787190-8 are supplied in Tube packaging, suitable for automated assembly processes and standard component handling.

Q: Which part should be selected for new designs?

A: For new designs, the 5787190-8 is recommended due to its RoHS Compliant status and higher inventory availability (1972 pieces versus 933 pieces). This ensures compliance with current regulatory requirements and reduces procurement risk.
