TE Connectivity 787190-5 D-Type Receptacle Connector Equivalent & Substitute Parts

Part Overview

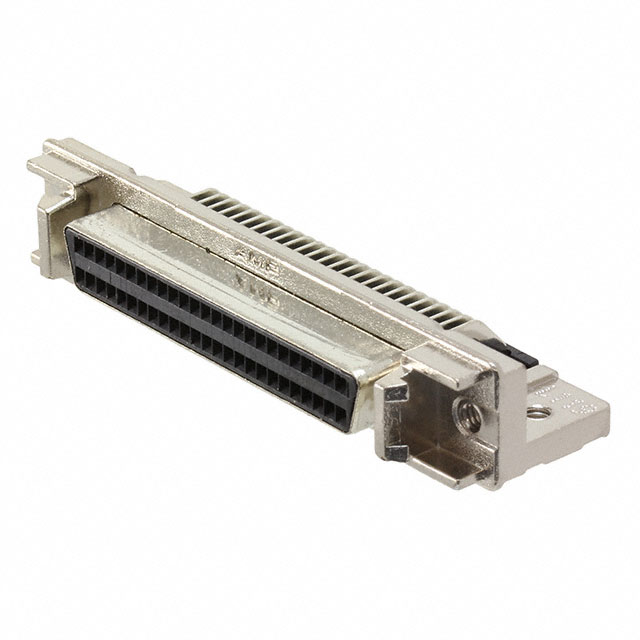

The TE Connectivity 787190-5 is a 50-position D-Type receptacle connector featuring female sockets with right-angle board edge mounting and solder termination. This connector is part of the AMPLIMITE .050 III series and is classified as an active product. The 787190-5 serves applications requiring high-density signal interconnection with shielded construction and gold-plated contacts. Substitute parts are identified when equivalent electrical and mechanical specifications are required, inventory availability differs, or compliance certifications vary across manufacturing batches or product variants.

Substiute Parts

787190-5

TE Connectivity AMP ConnectorsIn Stock: 975787190-5 Datasheet

Current PartRFQ

5787190-5

TE Connectivity AMP ConnectorsIn Stock: 16565787190-5 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 787190-5 is determined by strict equivalence across all electrical and mechanical parameters. The substitute part 5787190-5 qualifies as a direct equivalent based on the following criteria:

Electrical Equivalence: Current rating (1A), voltage rating (30V), and operating temperature range (-55°C to 105°C) are identical across both parts.

Mechanical Equivalence: Both parts maintain identical connector style (D-Type), connector type (receptacle, female sockets), position count (50), row configuration (2 rows), shell size and pitch (0.050 Pitch x 0.100 Row to Row), mounting type (board edge, through hole, right angle), and termination method (solder).

Material and Construction Equivalence: Shell material and finish (steel, nickel plated), contact finish (gold), contact material (phosphor bronze), dielectric material (thermoplastic), flange features (housing/shell with 2-56 fasteners, latchblocks, rails), shielded construction, and backset spacing (0.146"/3.71mm) are identical.

Compliance Equivalence: Both parts carry UL94 V-0 flammability rating, MSL 1 (unlimited moisture sensitivity), and identical ECCN (EAR99) and HTSUS (8536.69.4040) classifications.

Distinguishing Factors: The primary differences between 787190-5 and 5787190-5 are RoHS compliance status and REACH status documentation. The 5787190-5 variant is ROHS3 compliant, while the 787190-5 is marked as not applicable. REACH status differs between the two parts. Inventory availability also varies, with 5787190-5 offering higher stock levels (1585 pcs vs. 937 pcs).

Parameter Comparison

Engineering Selection Recommendations

Both the 787190-5 and 5787190-5 are active products manufactured by TE Connectivity AMP Connectors and are electrically and mechanically equivalent for all functional applications. Selection between these two parts should be based on compliance requirements and inventory availability.

For applications requiring ROHS3 compliance: The 5787190-5 is the appropriate selection, as it carries explicit ROHS3 compliant certification. This part is suitable for end-use applications subject to RoHS Directive 2011/65/EU and its amendments.

For applications with REACH documentation requirements: The 787190-5 is marked as REACH Affected, indicating documented REACH substance compliance. The 5787190-5 carries Vendor Undefined REACH status, which may require additional supplier documentation for applications with strict REACH traceability requirements.

For inventory-constrained applications: The 5787190-5 offers higher stock availability (1585 pcs) compared to the 787190-5 (937 pcs), supporting shorter lead times and bulk procurement scenarios.

Both parts carry identical electrical ratings (1A current, 30V voltage), mechanical specifications (50-position D-Type receptacle, right-angle board edge mounting, solder termination), material construction (steel nickel-plated shell, gold-plated phosphor bronze contacts), and environmental ratings (UL94 V-0, MSL 1, operating temperature -55°C to 105°C).

Frequently Asked Questions (FAQ)

Q: Are the 787190-5 and 5787190-5 interchangeable in circuit board designs?

A: Yes. Both parts are electrically and mechanically equivalent. They share identical connector geometry, pin configuration (50 positions, 2 rows, 0.050 pitch), mounting type (board edge, through hole, right angle), and electrical ratings (1A, 30V). Direct substitution in PCB layouts is supported without design modification.

Q: What is the difference between the RoHS status of these two parts?

A: The 787190-5 is marked as RoHS not applicable, while the 5787190-5 is ROHS3 compliant. ROHS3 compliance indicates the part meets RoHS Directive 2011/65/EU requirements, including restrictions on hazardous substances. Applications subject to RoHS regulations should specify the 5787190-5 variant.

Q: Do both parts support the same solder termination process?

A: Yes. Both the 787190-5 and 5787190-5 use solder termination and are compatible with standard PCB assembly processes. Solder joint reliability, thermal cycling performance, and mechanical strength are equivalent across both parts.

Q: What is the significance of the REACH status difference?

A: The 787190-5 is marked REACH Affected, indicating documented compliance with REACH Regulation (EC) 1907/2006. The 5787190-5 carries Vendor Undefined REACH status. For applications requiring explicit REACH substance declarations or traceability documentation, the 787190-5 may be preferred, or additional supplier documentation should be requested for the 5787190-5.

Q: Can I use either part in high-temperature applications?

A: Yes. Both parts operate across the identical temperature range of -55°C to 105°C. Connector performance, contact resistance, and dielectric properties remain stable throughout this range for both variants.

Q: Are the packaging and handling requirements identical?

A: Both parts are supplied in tube packaging with MSL 1 (unlimited moisture sensitivity level), indicating no special moisture control or baking requirements during storage or handling. Standard component storage conditions apply to both variants.

Q: Which part should I select for new designs?

A: For new designs, the 5787190-5 is recommended due to ROHS3 compliance certification, which aligns with current regulatory requirements and future-proofs designs against evolving environmental regulations. Higher inventory availability also supports production scheduling.
