Amphenol ICC 78299-540 Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 78299-540 is a rectangular connector header featuring a right-angle, through-hole configuration with 40 positions at 2.54mm pitch. This BERGSTIK® II series connector is designed for board-to-board applications requiring press-fit and solder termination with push-pull fastening. The part is currently active in production with 856 units in stock. Substitute parts are identified to address inventory availability, compliance requirements, or specific application needs where equivalent electrical and mechanical parameters are maintained.

Substiute Parts

78299-540

Amphenol ICC (FCI)In Stock: 88778299-540 Datasheet

Current PartRFQ

2-826634-0

TE Connectivity AMP ConnectorsIn Stock: 29062-826634-0 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Amphenol ICC 78299-540 is determined by the following critical parameters:

• Connector Type: Header configuration
• Contact Type: Male Pin
• Pitch - Mating: 0.100" (2.54mm) — exact match required
• Number of Positions: 40 — exact match required
• Number of Rows: 2 — exact match required
• Row Spacing - Mating: 0.100" (2.54mm) — exact match required
• Mounting Type: Through Hole, Right Angle — exact match required
• Style: Board to Board or Board to Board/Cable compatible
• Shrouding: Unshrouded
• Contact Shape: Square
• Material Flammability Rating: UL94 V-0 — minimum requirement

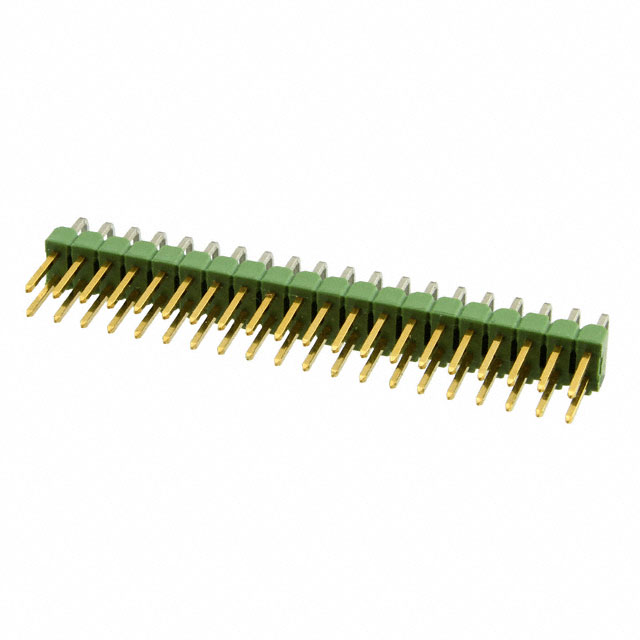

The TE Connectivity AMP Connectors part 2-826634-0 meets all critical substitution criteria. This part maintains identical mating pitch, position count, row configuration, and mounting orientation. Both connectors feature unshrouded, square-contact male pin headers with UL94 V-0 flammability ratings suitable for through-hole, right-angle board-to-board applications.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 2-826634-0 is a qualified substitute for the Amphenol ICC 78299-540 based on matching critical electrical and mechanical parameters. Both connectors maintain identical mating pitch (2.54mm), position count (40), row configuration (2 rows), and right-angle through-hole mounting orientation.

Key differentiation factors:

• RoHS Compliance: The TE Connectivity part is ROHS3 compliant, while the Amphenol ICC part is RoHS non-compliant. Selection should align with regulatory requirements for the target application.
• Contact Material: Amphenol ICC uses phosphor bronze; TE Connectivity uses brass. Both materials are suitable for standard board-to-board applications.
• Insulation Material: TE Connectivity specifies polybutylene terephthalate (PBT); Amphenol ICC does not specify insulation material. PBT provides documented thermal and chemical resistance.
• Operating Temperature: TE Connectivity specifies -65°C ~ 105°C operating range; Amphenol ICC does not specify. Applications requiring defined temperature performance should reference the TE Connectivity specification.
• Current Rating: TE Connectivity specifies 5A; Amphenol ICC does not specify. Applications with defined current requirements should reference the TE Connectivity specification.
• Inventory Availability: TE Connectivity 2-826634-0 has 2820 units in stock compared to 856 units for the Amphenol ICC part.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 2-826634-0 be used as a direct replacement for the Amphenol ICC 78299-540?

A: Yes, the TE Connectivity 2-826634-0 qualifies as a substitute. Both connectors share identical mating pitch (2.54mm), position count (40), row spacing (2 rows at 0.100" spacing), and right-angle through-hole mounting configuration. Mechanical and electrical compatibility is maintained for board-to-board applications.

Q: What are the key differences between these two connectors?

A: Primary differences include contact material (phosphor bronze vs. brass), insulation material specification (unspecified vs. PBT), RoHS compliance status (non-compliant vs. ROHS3 compliant), and documented operating temperature range (unspecified vs. -65°C ~ 105°C). Both maintain UL94 V-0 flammability ratings and identical pitch/position configurations.

Q: Does the TE Connectivity part support cable applications?

A: The TE Connectivity 2-826634-0 is classified as "Header, Breakaway" with "Board to Board or Cable" style capability. The Amphenol ICC 78299-540 is specified for "Board to Board" style only. If cable connectivity is required, the TE Connectivity part provides additional application flexibility.

Q: Are there any compliance considerations when substituting?

A: Yes. The TE Connectivity 2-826634-0 is ROHS3 compliant, while the Amphenol ICC 78299-540 is RoHS non-compliant. Applications subject to RoHS regulations should use the TE Connectivity part. Both parts have MSL 1 (Unlimited) moisture sensitivity ratings.

Q: What is the impact of different contact materials?

A: The Amphenol ICC part uses phosphor bronze contacts; the TE Connectivity part uses brass contacts. Both materials are standard for rectangular connectors in board-to-board applications. Contact material selection does not affect mechanical compatibility or mating performance for standard signal and power distribution applications.

Q: How do the insulation materials compare?

A: The TE Connectivity part specifies polybutylene terephthalate (PBT) insulation with documented thermal and chemical resistance. The Amphenol ICC part does not specify insulation material. PBT is a standard engineering thermoplastic suitable for industrial and commercial applications with defined performance characteristics.
