Amphenol ICC 77313-122-10 Rectangular Connector - Equivalent & Substitute Parts

Part Overview

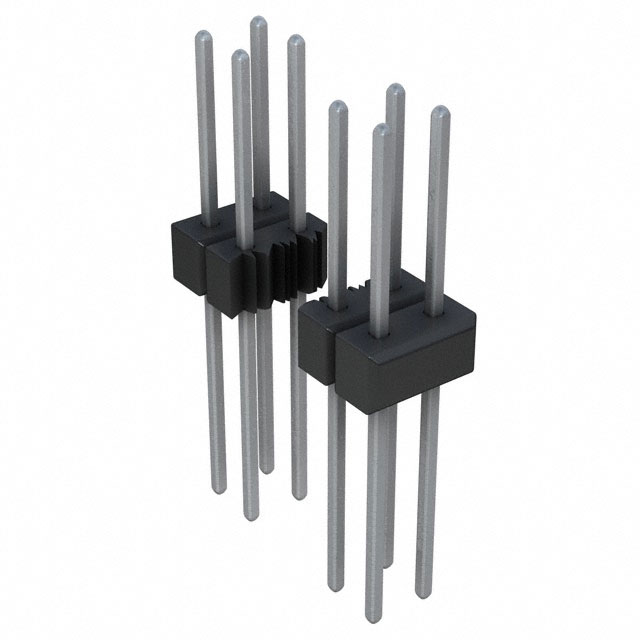

The Amphenol ICC 77313-122-10 is a vertical header connector with 10 positions at 2.54mm pitch, designed for through-hole board-to-board or cable applications. This part is classified as obsolete, making equivalent and substitute parts necessary for ongoing design support and procurement. The connector features a breakaway header design with unshrouded configuration, phosphor bronze contacts with gold mating finish, and thermoplastic insulation rated UL94 V-0.

Key Parameters

Parameter	Value
Manufacturer Part Number	77313-122-10
Manufacturer	Amphenol ICC (FCI)
Category	Rectangular Connectors
Series	BERGSTIK®
Product Status	Obsolete
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Contact Material	Phosphor Bronze
Contact Finish - Mating	Gold or Gold, GXT™
Contact Finish - Post	Tin
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS non-compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution for the 77313-122-10 is determined by strict alignment of the following electrical and mechanical parameters:

Critical Matching Parameters:

Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 10
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Connector Type: Header configuration
Contact Type: Male Pin
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Insulation Material Flammability: UL94 V-0

Substitute Categories:

Category 1: Direct Amphenol ICC Equivalent

77313-122-10LF: Active product status, RoHS compliant variant with identical electrical and mechanical specifications

Category 2: Alternative Manufacturers - Standard Performance

3M 2310-6221-TB and 2310-6221-TP: Active products with matching pitch, position count, and row configuration
Preci-Dip 450-10-210-00-018101 and 451-80-210-00-003101: Active products with matching core parameters
TE Connectivity 826632-5: Active AMPMODU Mod II series with matching pitch and position configuration
Samtec BBD-105-G-A and BBD-105-T-A: Active BBD series headers with matching pitch and position count

Category 3: Extended Stack Height Variants

Samtec EW-05-09-F-D-200: Flex Stack variant with integrated spacer
Samtec MTLW-105-08-G-D-318: Flex Stack MTLW series with extended mating contact length

Parameter Comparison

Parameter	77313-122-10	77313-122-10LF	2310-6221-TB	2310-6221-TP	450-10-210-00-018101	451-80-210-00-003101	826632-5	BBD-105-G-A	BBD-105-T-A	MTLW-105-08-G-D-318
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	10	10	10	10	10	10	10	10	10	10
Number of Rows	2	2	2	2	2	2	2	2	2	2
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Connector Type	Header, Breakaway	Header, Breakaway	Header	Header	Header	Header	Header, Breakaway	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Material	Phosphor Bronze	Phosphor Bronze	Copper Alloy	Copper Alloy	Brass	Brass	Brass	—	—	Phosphor Bronze
Contact Finish - Mating	Gold or Gold, GXT™	Gold or Gold, GXT™	Gold	Tin-Lead	Gold	Tin	Gold	Gold	Tin	Gold
Contact Finish - Post	Tin	Tin	Tin-Lead	Tin-Lead	Gold	Tin	Tin	Nickel	Nickel	Gold
Insulation Material	Thermoplastic	Thermoplastic	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled	PCT, Polyester, Glass Filled	PCT, Polyester, Glass Filled	Polybutylene Terephthalate (PBT)	Polyester, Glass Filled	Polyester, Glass Filled	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	—	—	UL94 V-0
Operating Temperature	—	-65°C ~ 130°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 125°C	-55°C ~ 125°C	-65°C ~ 105°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Current Rating (Amps)	—	3A per Contact	3A	3A	3A	3A	5A	—	—	5.2A per Contact
RoHS Status	RoHS non-compliant	RoHS Compliant	RoHS non-compliant	RoHS non-compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Product Status	Obsolete	Active	Active	Active	Active	Active	Active	Active	Active	Active

Engineering Selection Recommendations

Primary Recommendation: 77313-122-10LF

The 77313-122-10LF is the direct active equivalent from Amphenol ICC. It maintains identical electrical and mechanical specifications to the obsolete 77313-122-10 while offering RoHS compliance and active product status. This part is the preferred choice for direct replacement in existing designs.

Secondary Recommendations for Active Designs:

Preci-Dip 450-10-210-00-018101 and 451-80-210-00-003101 are ROHS3 compliant alternatives with extended operating temperature range (-55°C to 125°C) and higher current ratings (3A). These parts are suitable for applications requiring enhanced thermal performance and regulatory compliance.

TE Connectivity 826632-5 offers ROHS3 compliance with increased current capacity (5A per contact) and is available in bulk packaging. This part is appropriate for high-volume production requiring improved electrical performance.

Samtec MTLW-105-08-G-D-318 provides ROHS3 compliance with the highest current rating (5.2A per contact) and extended mating contact length (0.318"). This variant is suitable for applications with demanding electrical requirements and space constraints.

Samtec BBD-105-G-A and BBD-105-T-A offer ROHS3 compliance with alternative contact finishes (gold or tin). These parts are suitable for applications where specific contact finish requirements differ from the original specification.

3M 2310-6221-TB and 2310-6221-TP maintain active product status with 3A current rating and UL94 V-0 flammability rating. These parts are suitable for applications where 3M component qualification is required.

Frequently Asked Questions (FAQ)

Q: Can the 77313-122-10LF be used as a direct replacement for the obsolete 77313-122-10?

A: Yes. The 77313-122-10LF maintains identical pitch (0.100"), position count (10), row configuration (2 rows), contact type (male pin), mounting method (through hole), and termination (solder). The primary difference is active product status and RoHS compliance. Mechanical and electrical compatibility is confirmed.

Q: What are the key differences between the Amphenol ICC 77313-122-10LF and the Preci-Dip 450-10-210-00-018101?

A: Both parts share identical pitch, position count, and row spacing. Differences include contact material (phosphor bronze vs. brass), contact finish (gold vs. gold), insulation material composition, and operating temperature range. The Preci-Dip part offers extended temperature range (-55°C to 125°C) and ROHS3 compliance. Mechanical compatibility is confirmed for board-to-board applications.

Q: Are there packaging differences between substitute parts?

A: Yes. The 77313-122-10LF is supplied in bulk packaging. The Samtec BBD-105-G-A and BBD-105-T-A are supplied in tube packaging. Preci-Dip 450-10-210-00-018101 and 451-80-210-00-003101 are supplied in bulk. TE Connectivity 826632-5 is supplied in bulk. Packaging does not affect electrical or mechanical compatibility.

Q: Which substitute part offers the highest current rating?

A: The Samtec MTLW-105-08-G-D-318 offers the highest current rating at 5.2A per contact, followed by the TE Connectivity 826632-5 at 5A per contact. The original 77313-122-10 does not specify a current rating.

Q: What is the difference between the Samtec BBD-105-G-A and BBD-105-T-A?

A: Both parts are identical except for mating contact finish. The BBD-105-G-A features gold mating contact finish, while the BBD-105-T-A features tin mating contact finish. Both maintain identical pitch, position count, and row configuration. Selection depends on application-specific contact finish requirements.

Q: Are all substitute parts RoHS compliant?

A: No. The 3M 2310-6221-TB and 2310-6221-TP are RoHS non-compliant. The Amphenol ICC 77313-122-10LF, Preci-Dip 450-10-210-00-018101, Preci-Dip 451-80-210-00-003101, TE Connectivity 826632-5, Samtec BBD-105-G-A, Samtec BBD-105-T-A, and Samtec MTLW-105-08-G-D-318 are all ROHS3 compliant or RoHS compliant.

Q: Can the Samtec EW-05-09-F-D-200 be used as a substitute?

A: The Samtec EW-05-09-F-D-200 is a Flex Stack variant with integrated spacer functionality. While it maintains the 0.100" pitch and 10-position configuration, it features extended overall pin length (0.730") and integrated stack height (0.200"). This part is suitable only for applications requiring spacer functionality and is not a direct mechanical replacement for standard header applications.

Q: What is the REACH compliance status of substitute parts?

A: The Amphenol ICC 77313-122-10LF, Preci-Dip 450-10-210-00-018101, Preci-Dip 451-80-210-00-003101, and Samtec BBD-105-T-A are REACH Unaffected. The 3M 2310-6221-TB, 3M 2310-6221-TP, Samtec BBD-105-G-A, and Samtec MTLW-105-08-G-D-318 are REACH Unaffected. The TE Connectivity 826632-5 is REACH Unaffected.
